Crankshaft Rear Seal: Removal

  1. Remove the flexplate. For additional information, refer to FLEXPLATE  in this service information.
  2. Remove the crankshaft sensor ring.
  3. Using the Crankshaft Rear Oil Seal Remover and Slide Hammer, remove and discard the crankshaft rear seal.
    • Clean all sealing surfaces with metal surface prep.

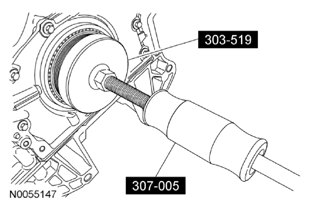

      Fig 1: Removing Crankshaft Rear Seal
      G07815231Courtesy of FORD MOTOR CO.
