Crankshaft Front Seal: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY  in this service information.
  3. Using the Oil Seal Remover, remove and discard the crankshaft front seal.
    • Clean all sealing surfaces with metal surface prep.

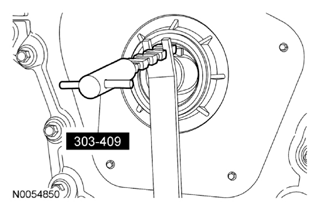

      Fig 1: Removing Crankshaft Front Seal
      G07815221Courtesy of FORD MOTOR CO.
