RH Turbocharger (View 2 of 6)

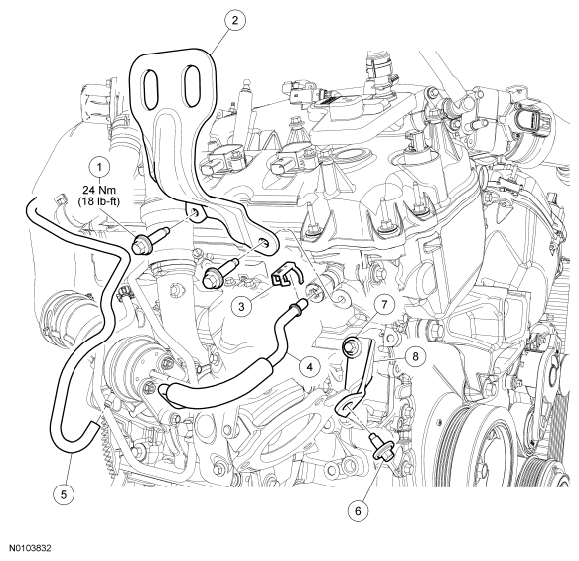

Fig 1: RH Turbocharger Replacement Components With Torque Specifications (2 Of 6)

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W710809	RH engine lifting eye bolt (2 required)
2	17A084	RH engine lifting eye
3	6N631	RH oil supply tube secondary latch (part of 9G440)
4	9G440	RH oil supply tube
5	9E498	Turbocharger wastegate regulating valve hose
6	W714863	Upper RH turbocharger bracket-to-turbocharger bolt
7	W503296	Upper RH turbocharger bracket-to-cylinder block bolt (2 required)
8	9P462	Upper RH turbocharger-to-cylinder block bracket
