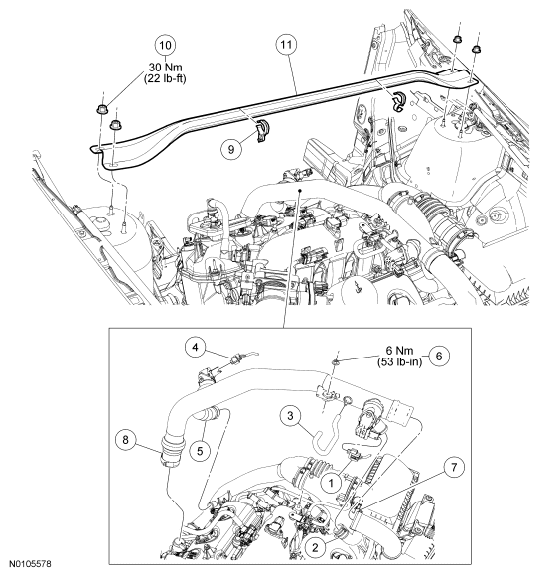

RH Turbocharger (View 1 of 6)
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | LH turbocharger bypass valve electrical connector (part of 12C508) |
| 2 | 9J478 | LH turbocharger bypass valve hose |
| 3 | 9E498 | Turbocharger wastegate regulating valve hose |
| 4 | 14A464 | RH turbocharger bypass valve electrical connector (part of 12C508) |
| 5 | 9J478 | RH turbocharger bypass valve hose |
| 6 | W713946 | RH Charge Air Cooler (CAC) tube nut |
| 7 | 6C646 | RH CAC tube |
| 8 | 6C646 | RH CAC tube |
| 9 | 9C490 | Brake booster vacuum hose retainer (2 required) |
| 10 | W714812 | Strut tower brace nut (4 required) |
| 11 | 3C232 | Strut tower brace |
