F12, F13, F14, F15, F16, F19, F20, F21

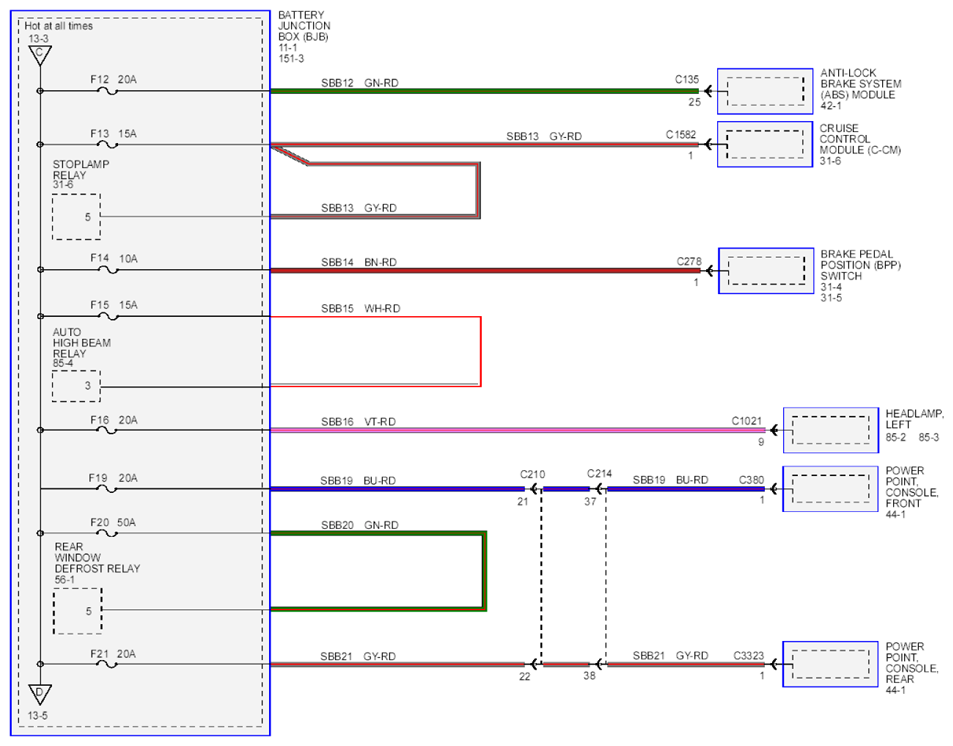

Fig 1: Power Distribution And SJB Circuit Diagram - F12, F13, F14, F15, F16, F19, F20 And F21

G07884363

Courtesy of FORD MOTOR CO.
