OEM Wiring Diagrams: Grounds: G302

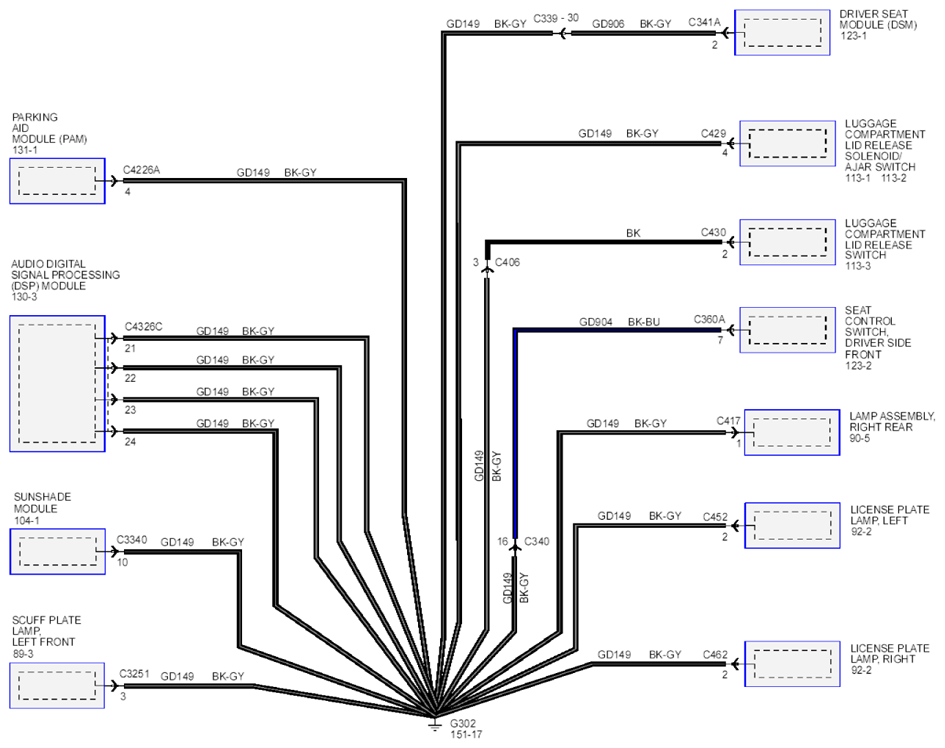

Fig 1: Ground Circuit Diagram - G302

G07884356

Courtesy of FORD MOTOR CO.
