OEM Wiring Diagrams: Grounds: G301

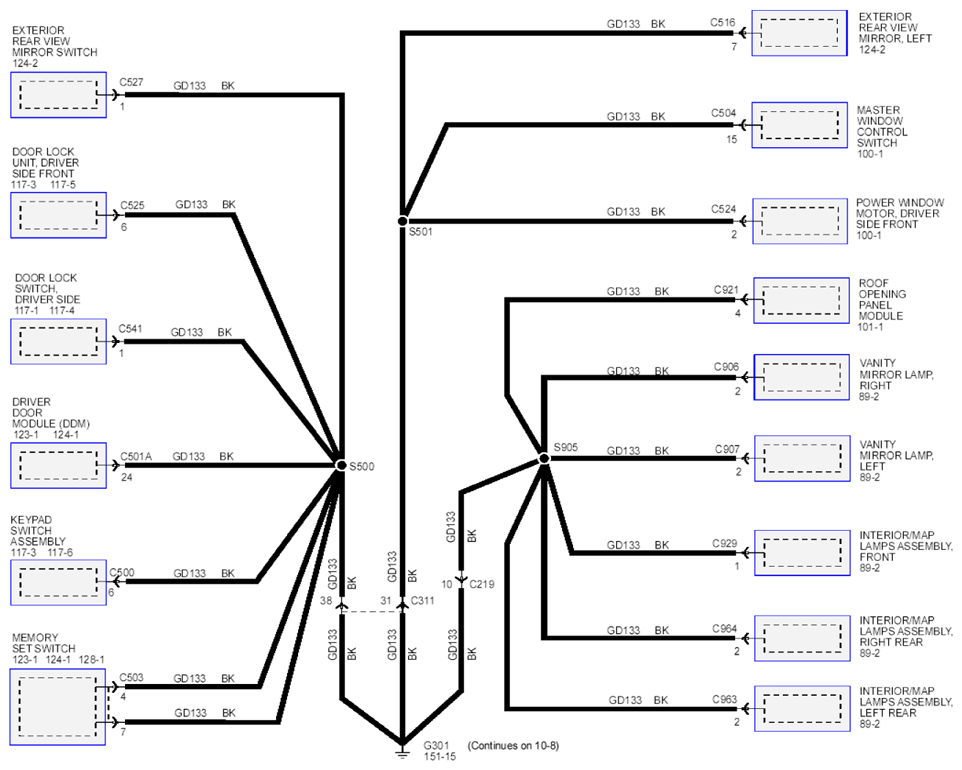

Fig 1: Ground Circuit Diagram - G301

G07884354

Courtesy of FORD MOTOR CO.

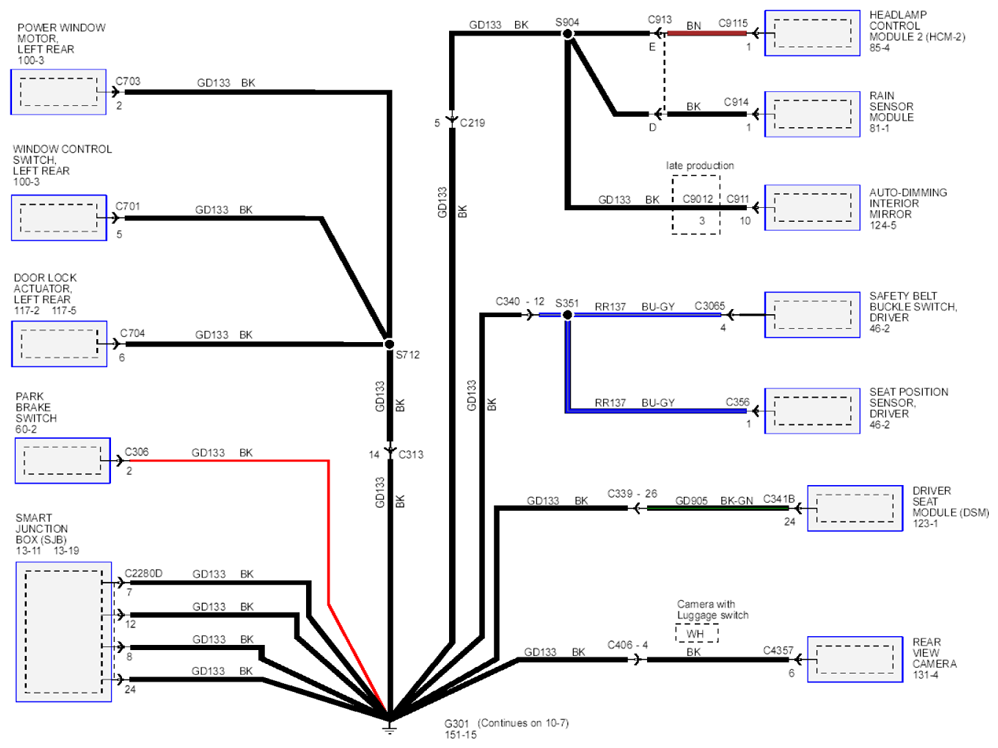

Fig 1: Ground Circuit Diagram - G301

G07884355

Courtesy of FORD MOTOR CO.
