OEM Wiring Diagrams: Grounds: G201

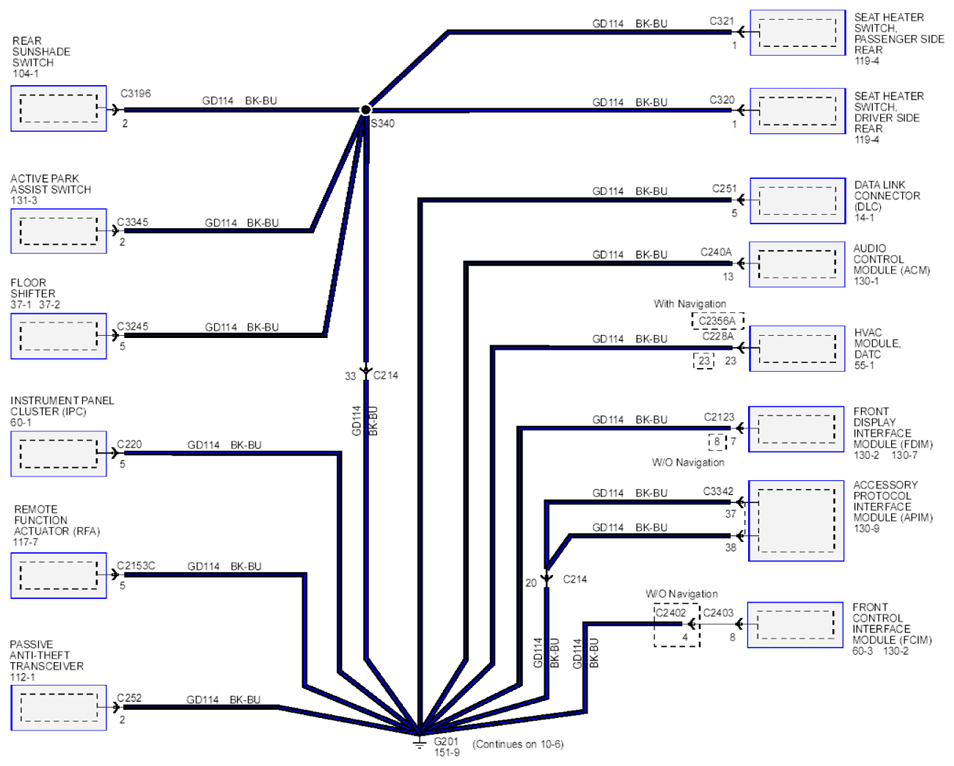

Fig 1: Ground Circuit Diagram - G201

G07884352

Courtesy of FORD MOTOR CO.
