OEM Wiring Diagrams: Grounds: G200

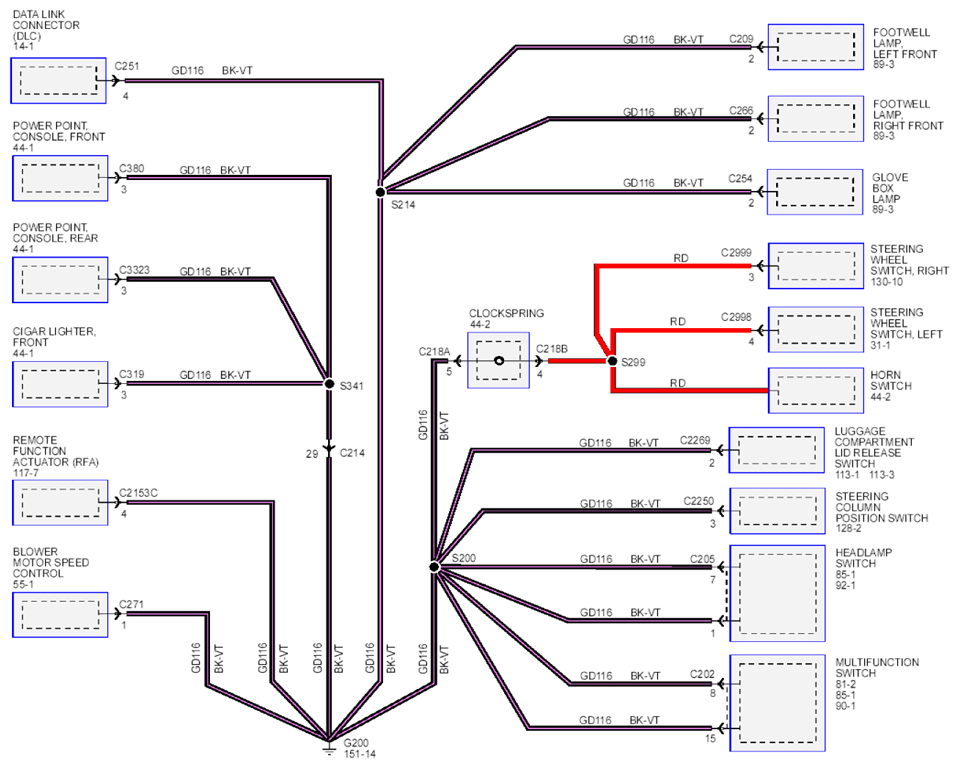

Fig 1: Ground Circuit Diagram - G200

G07884351

Courtesy of FORD MOTOR CO.
