OEM Wiring Diagrams: Grounds: G101

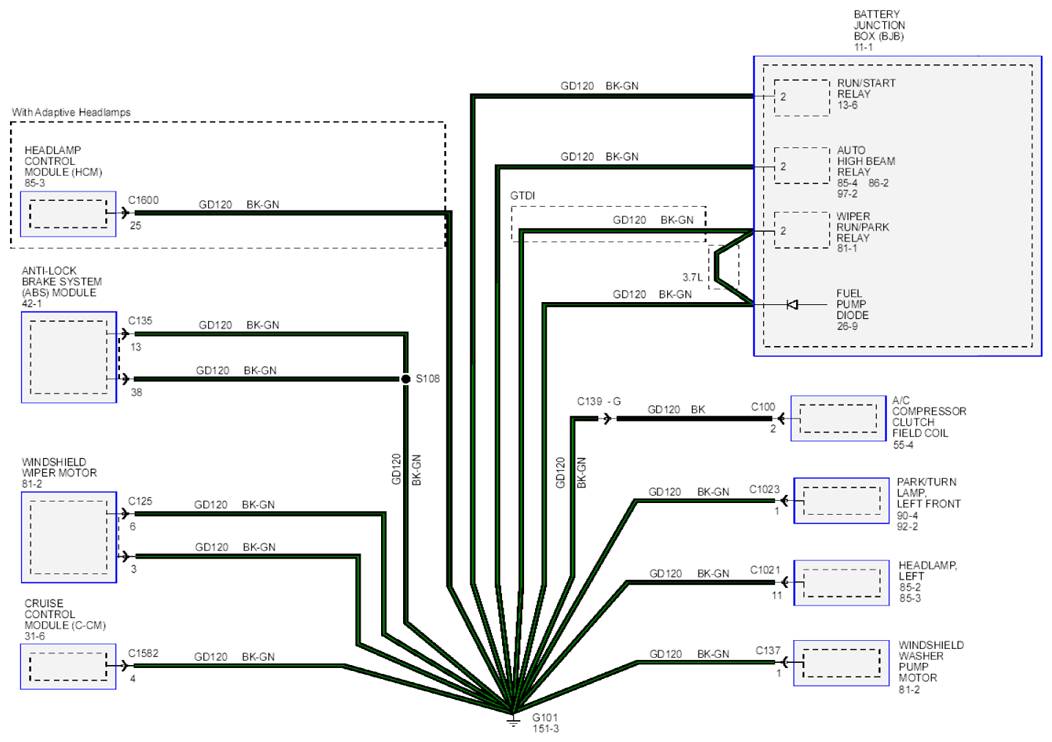

Fig 1: Ground Circuit Diagram - G101

G07884349

Courtesy of FORD MOTOR CO.
