OEM Wiring Diagrams: Grounds: G100

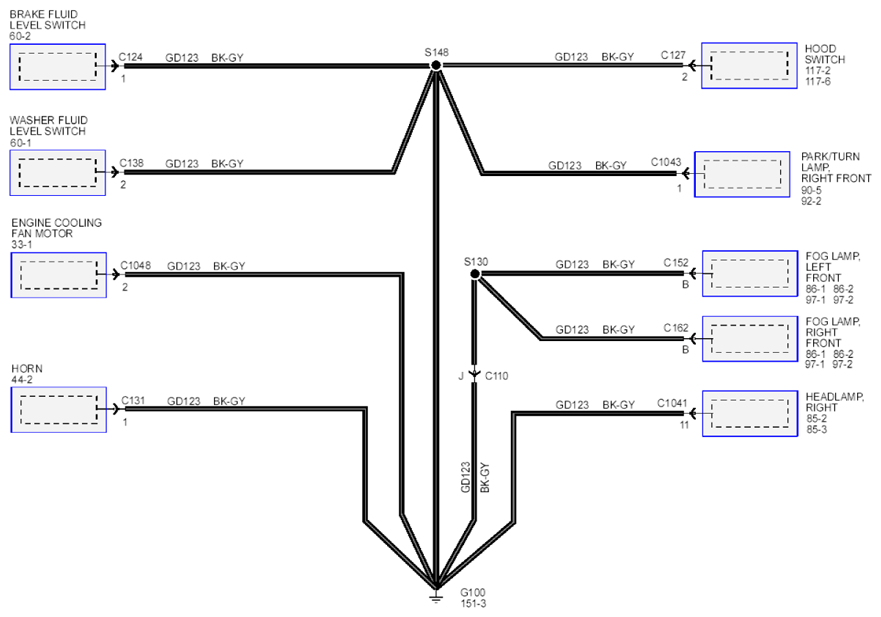

Fig 1: Ground Circuit Diagram - G100

G07884348

Courtesy of FORD MOTOR CO.
