Driver Side Seat Cushion Thermo- Electric Device Connector - C3035

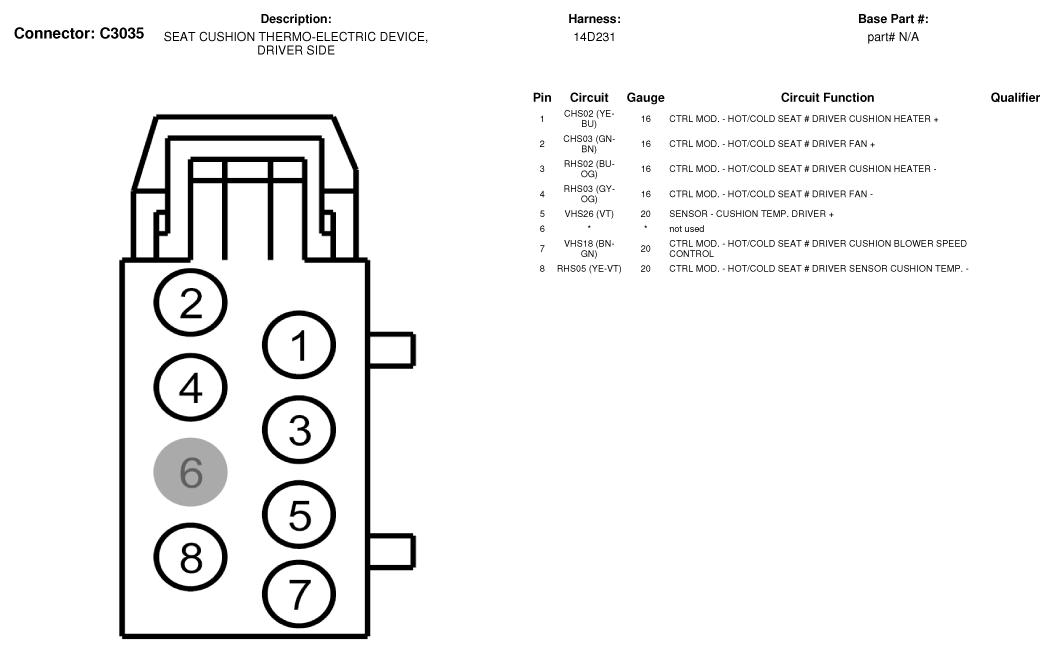

Fig 1: Driver Side Seat Cushion Thermo- Electric Device Connector End View (C3035)

G07330053

Courtesy of FORD MOTOR CO.
