Turn Signal_Stop_Hazard Lamps: Notes

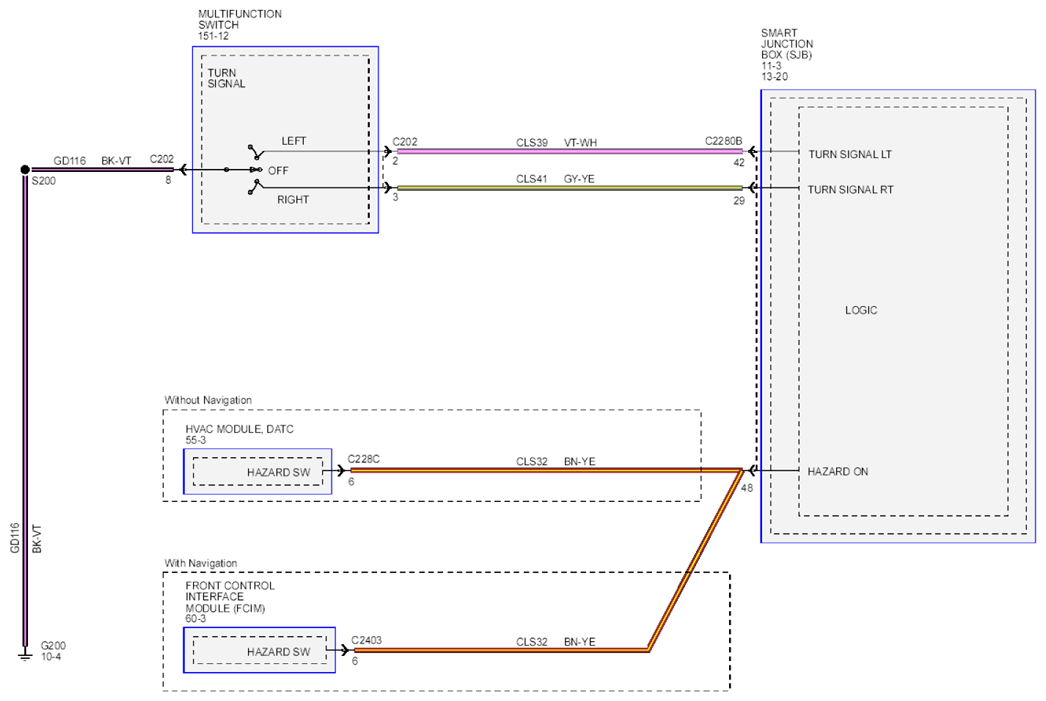

Fig 1: Turn Signal, Stop And Hazard Lamps Circuit Diagram

G07884459

Courtesy of FORD MOTOR CO.
