Shift Interlock
>>
With IA
With IA

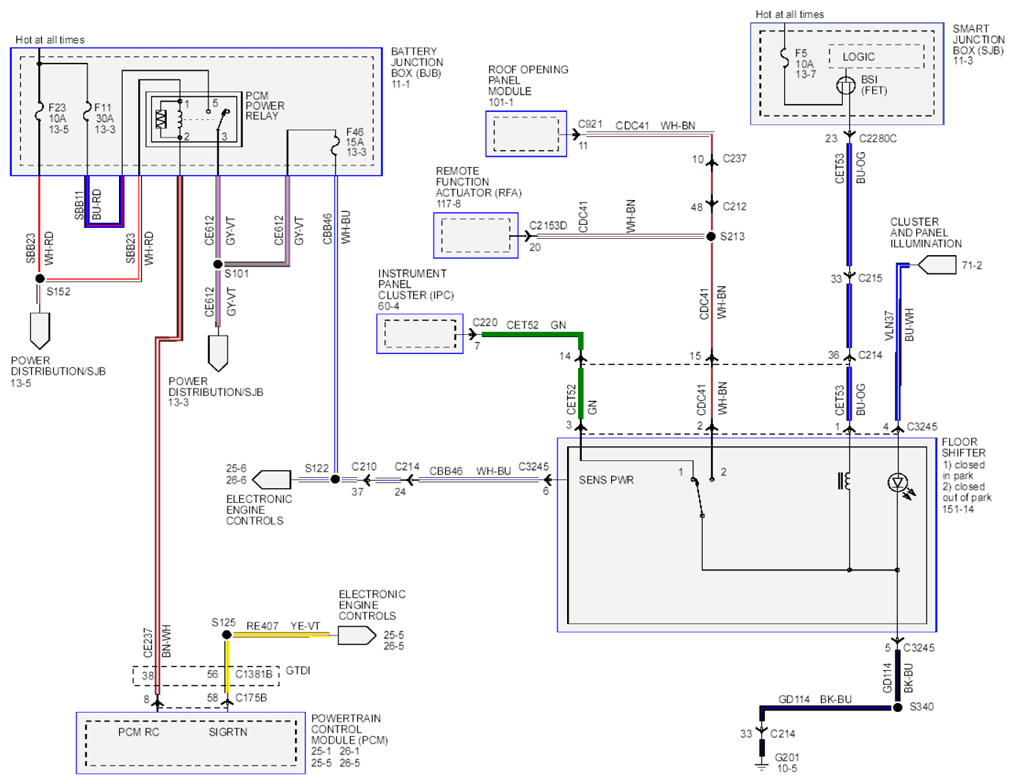

Fig 1: Shift Interlock Circuit Diagram - With IA
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
