Roof Opening Panel
Roof Opening Panel

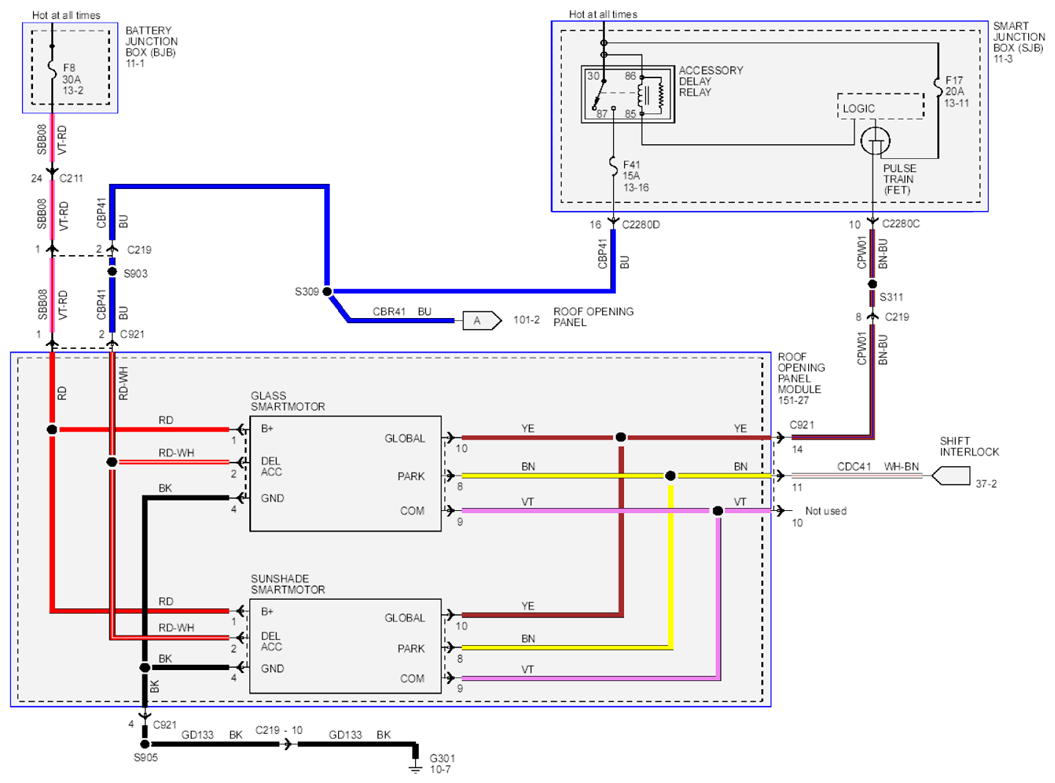

Fig 1: Roof Opening Panel Circuit Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

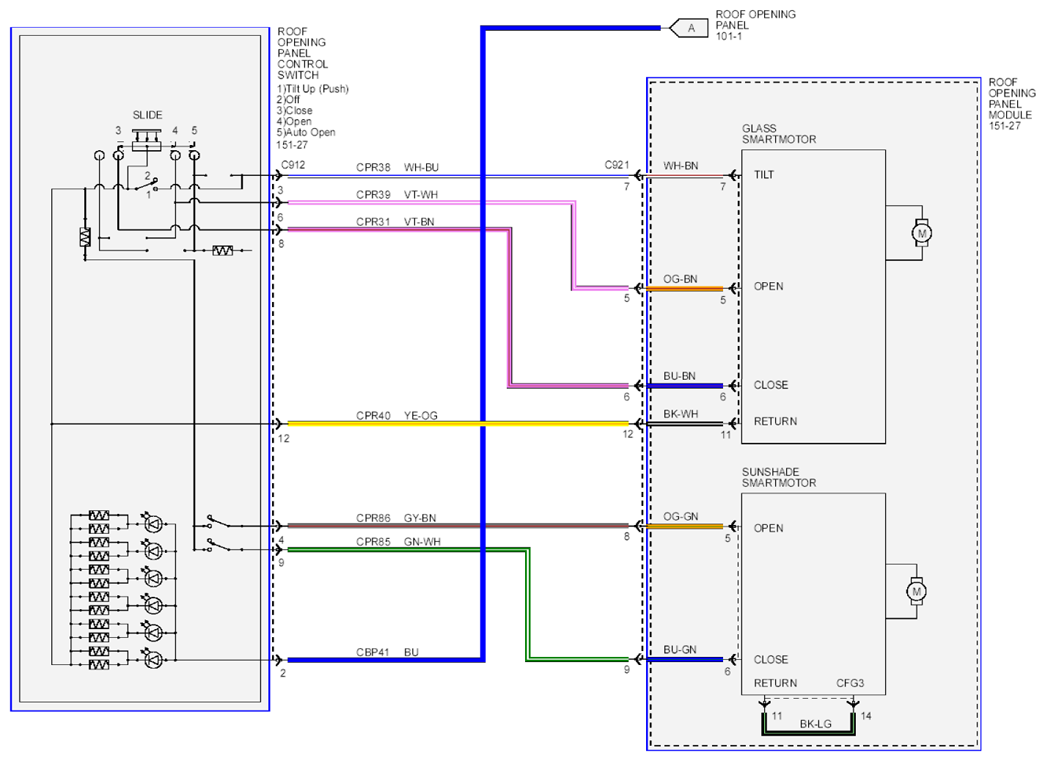

Fig 2: Roof Opening Panel Circuit Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
