Without IA

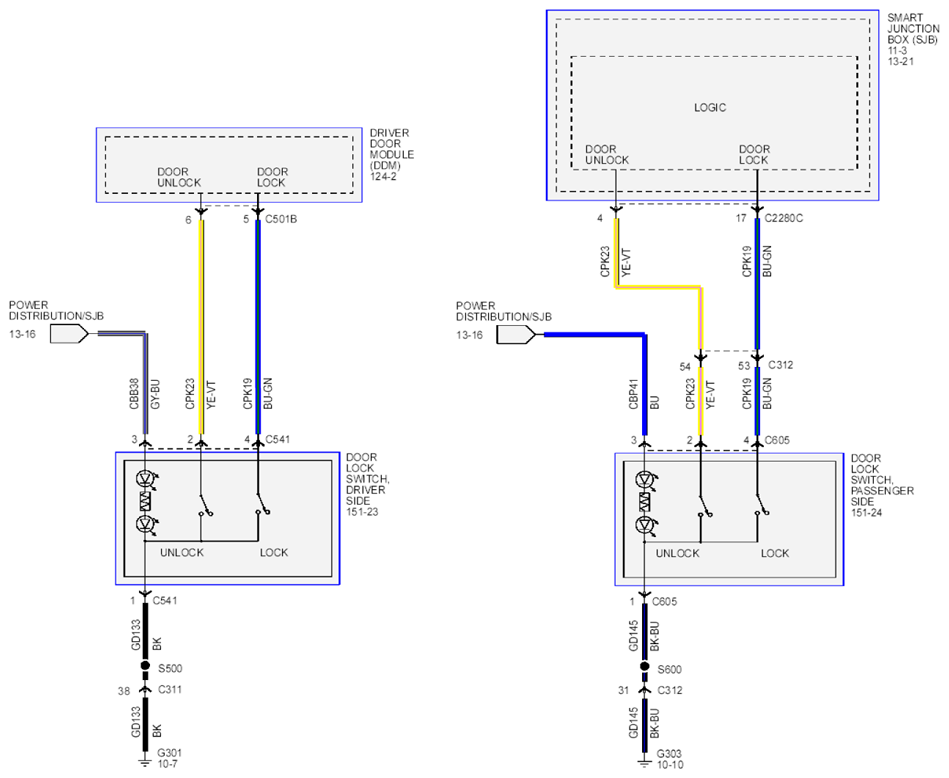

Fig 1: Remote Keyless Entry And Alarm Circuit Diagram - Without IA (1 Of 3)
G07884481Courtesy of FORD MOTOR CO.

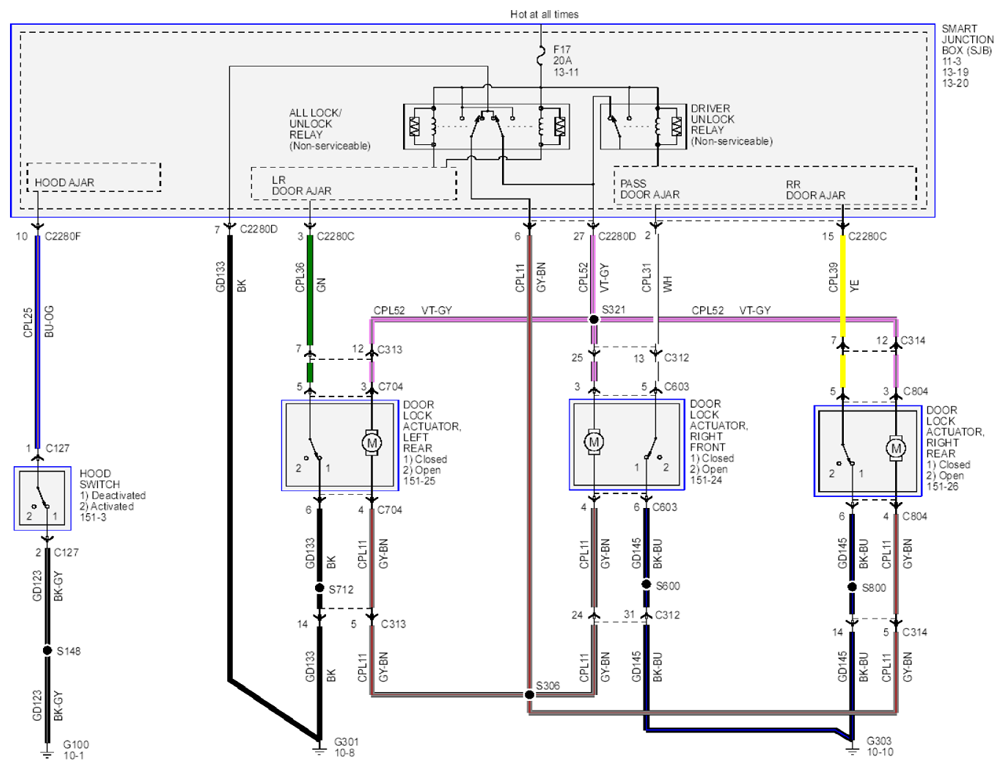

Fig 2: Remote Keyless Entry And Alarm Circuit Diagram - Without IA (2 Of 3)
G07884482Courtesy of FORD MOTOR CO.

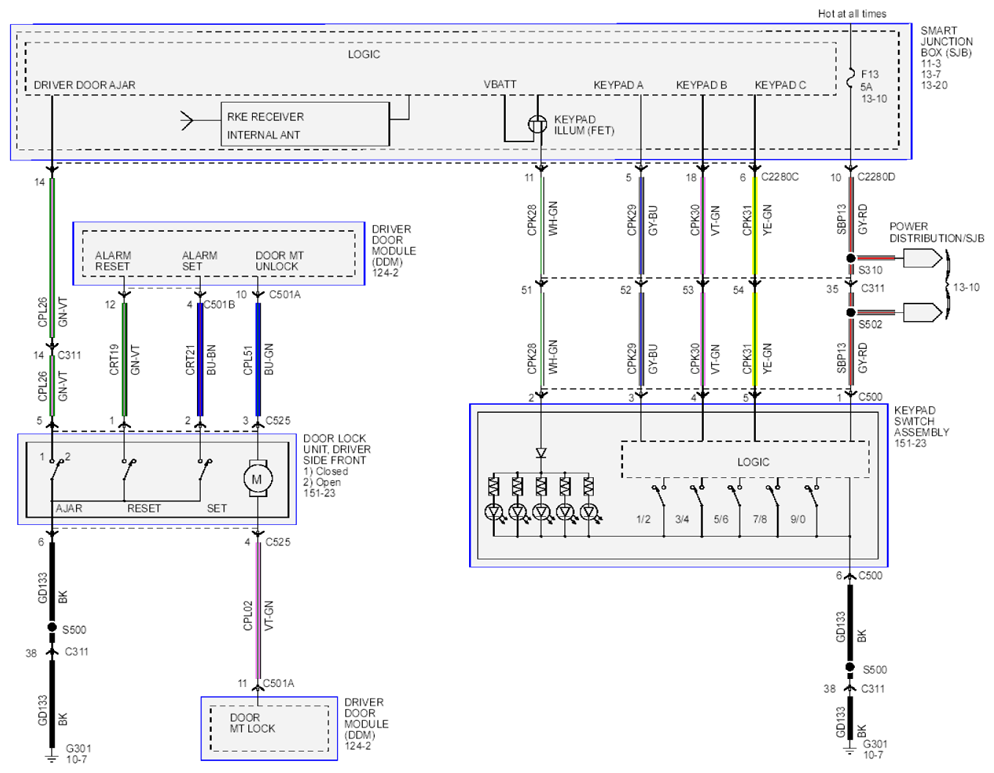

Fig 3: Remote Keyless Entry And Alarm Circuit Diagram - Without IA (3 Of 3)
G07884483Courtesy of FORD MOTOR CO.
