Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Mirrors
Power Mirrors

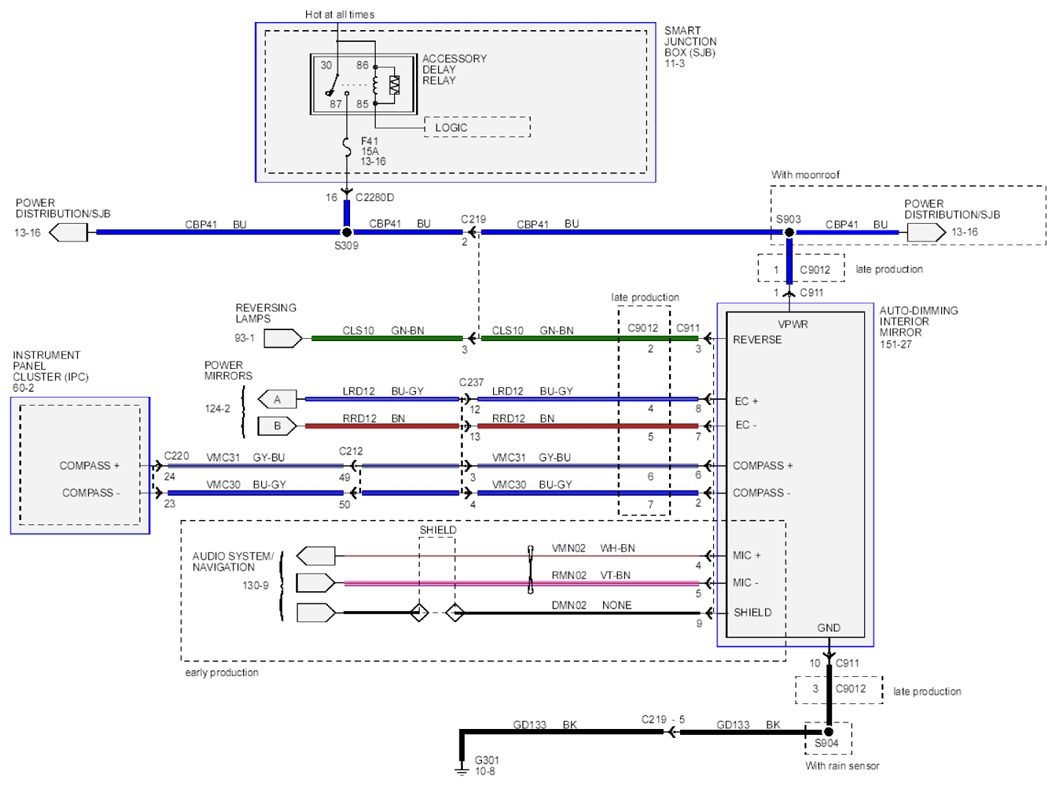

Fig 1: Power Mirrors Circuit Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

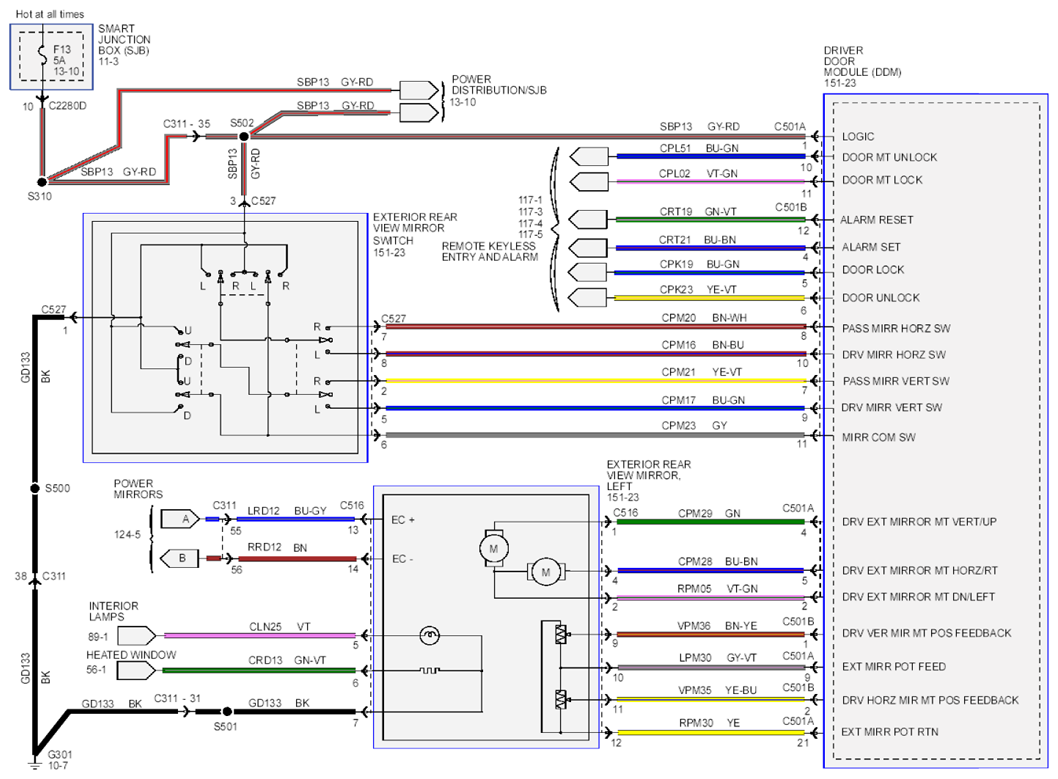

Fig 2: Power Mirrors Circuit Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

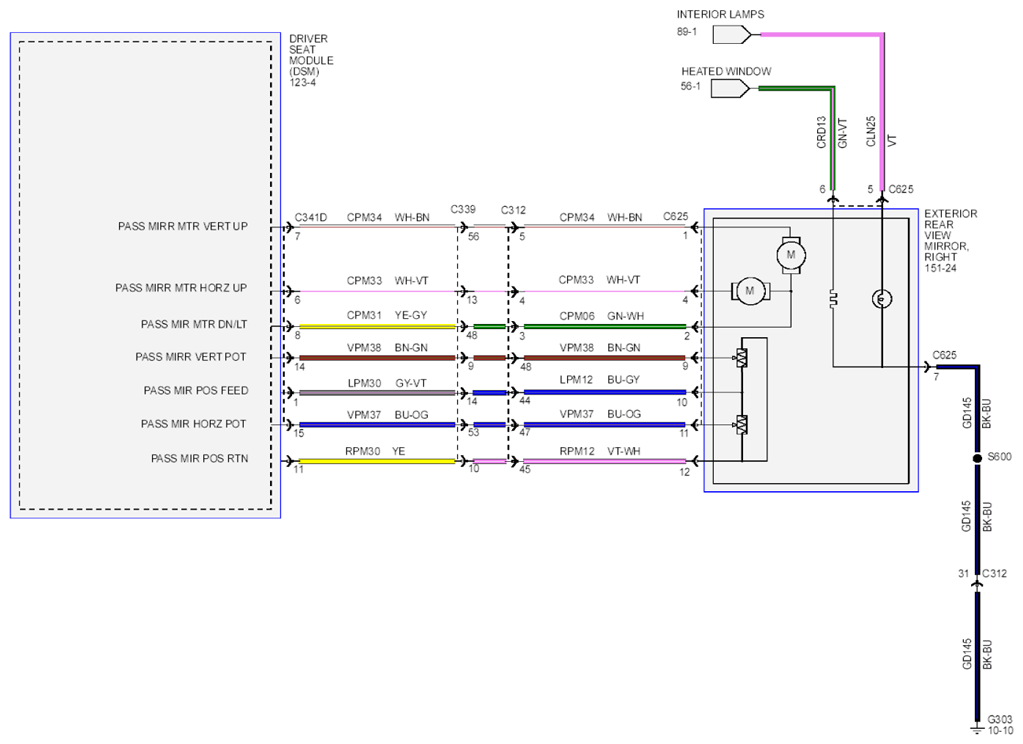

Fig 3: Power Mirrors Circuit Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

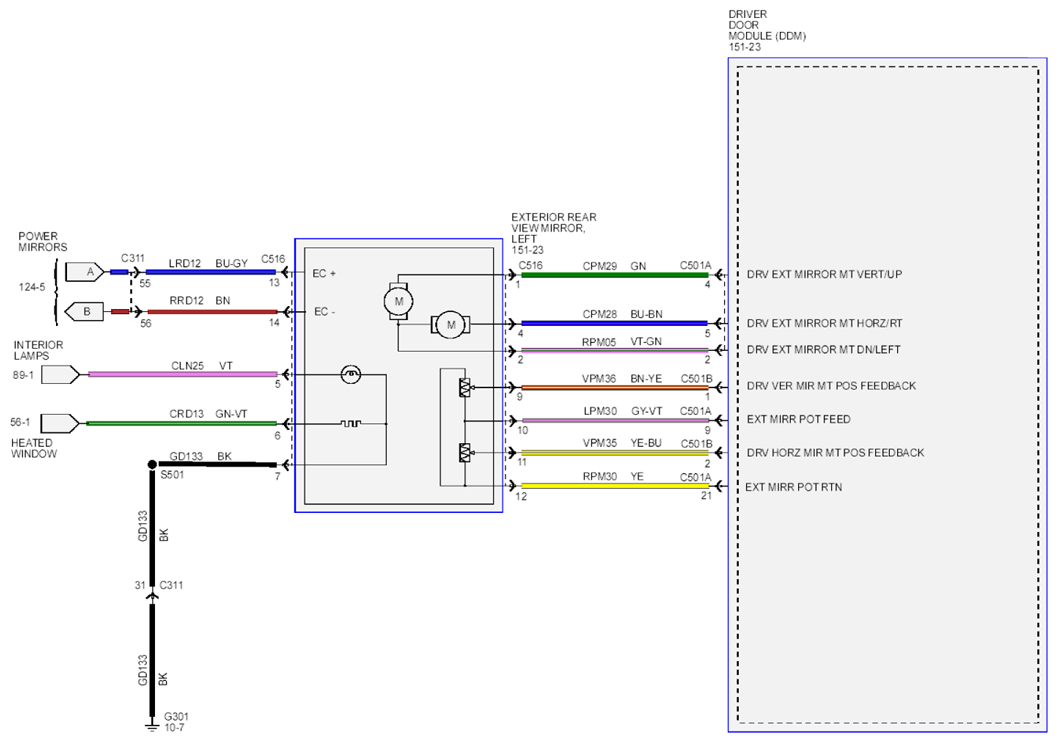

Fig 4: Power Mirrors Circuit Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

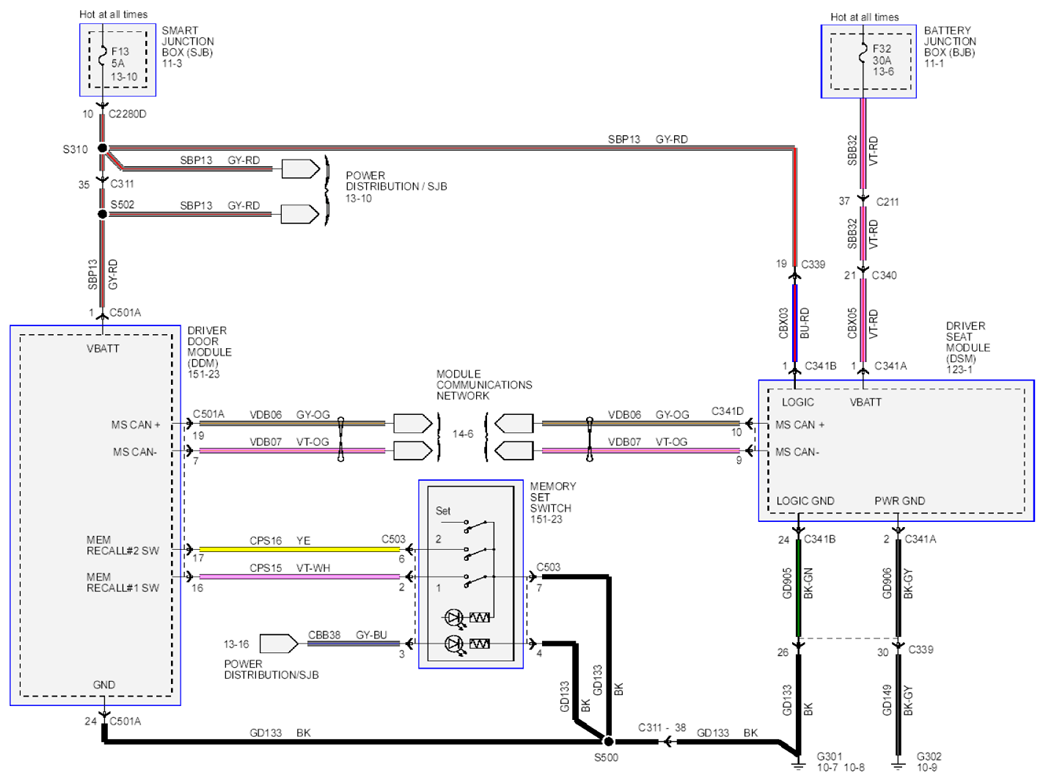

Fig 5: Power Mirrors Circuit Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
