Home >> Lincoln >> 2011 >> MKS EcoBoost >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams >> Power Distribution_SJB >> F35, F36, F43, F45, F46

F35, F36, F43, F45, F46

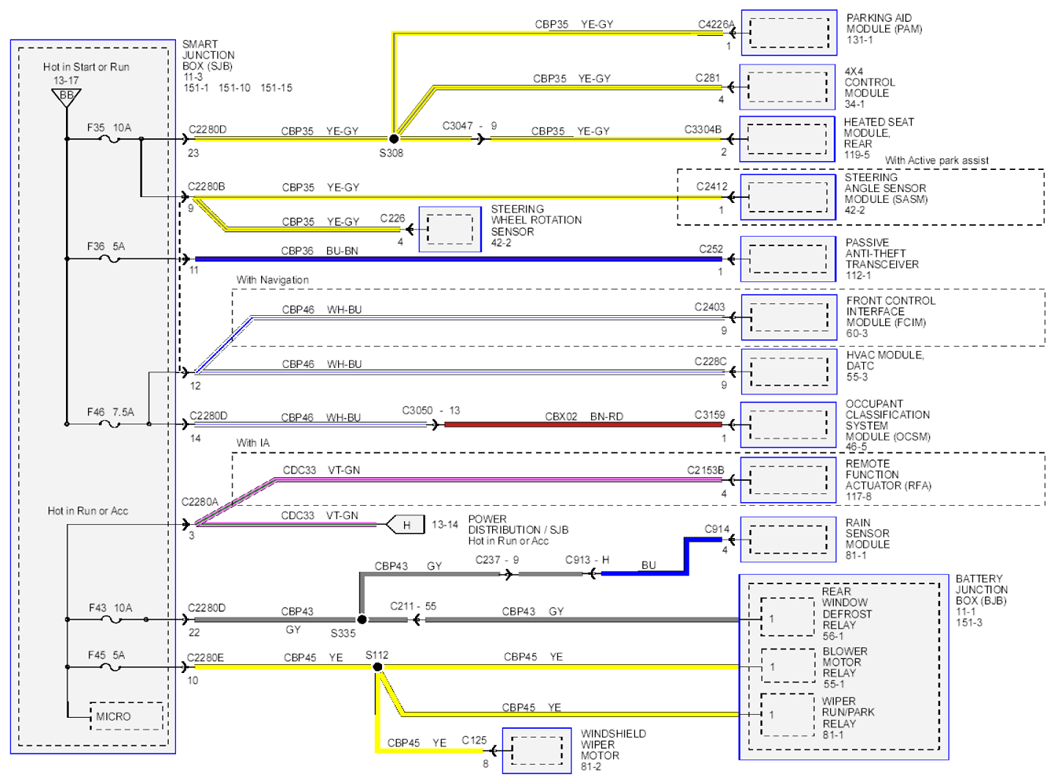

Fig 1: Power Distribution And SJB Circuit Diagram - F35, F36, F43, F45 And F46 (1 Of 4)
G07884377Courtesy of FORD MOTOR CO.

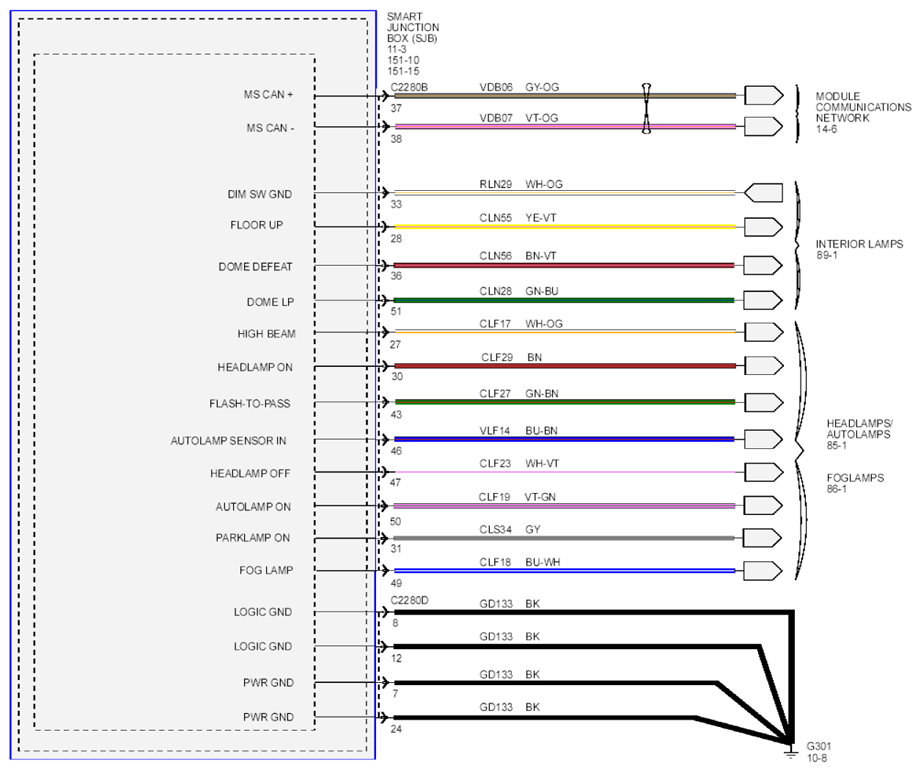

Fig 2: Power Distribution And SJB Circuit Diagram - F35, F36, F43, F45 And F46 (2 Of 4)
G07884378Courtesy of FORD MOTOR CO.

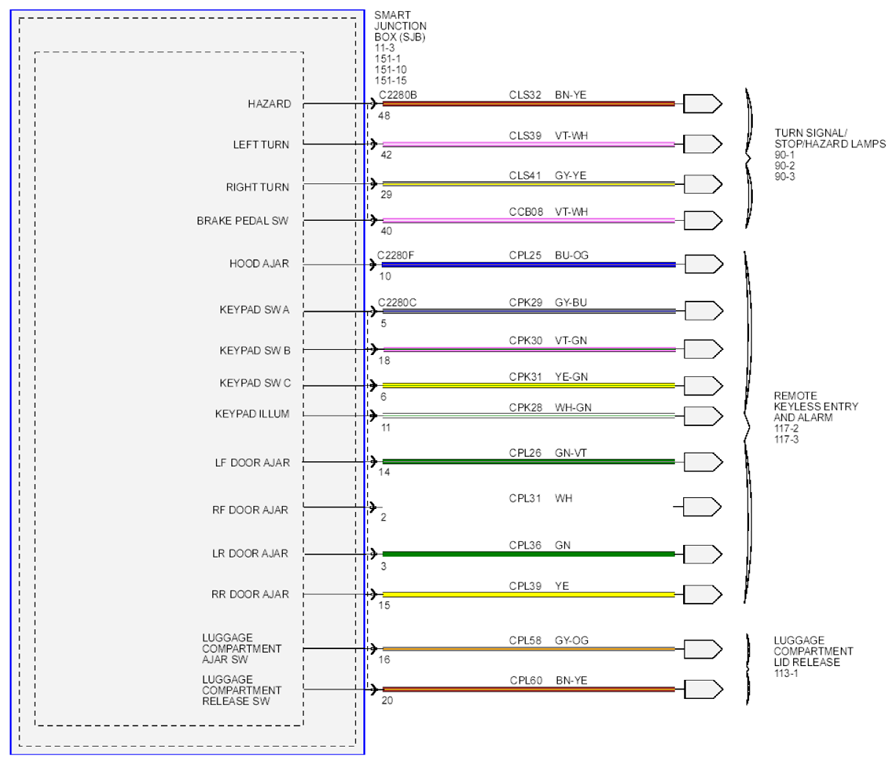

Fig 3: Power Distribution And SJB Circuit Diagram - F35, F36, F43, F45 And F46 (3 Of 4)
G07884379Courtesy of FORD MOTOR CO.

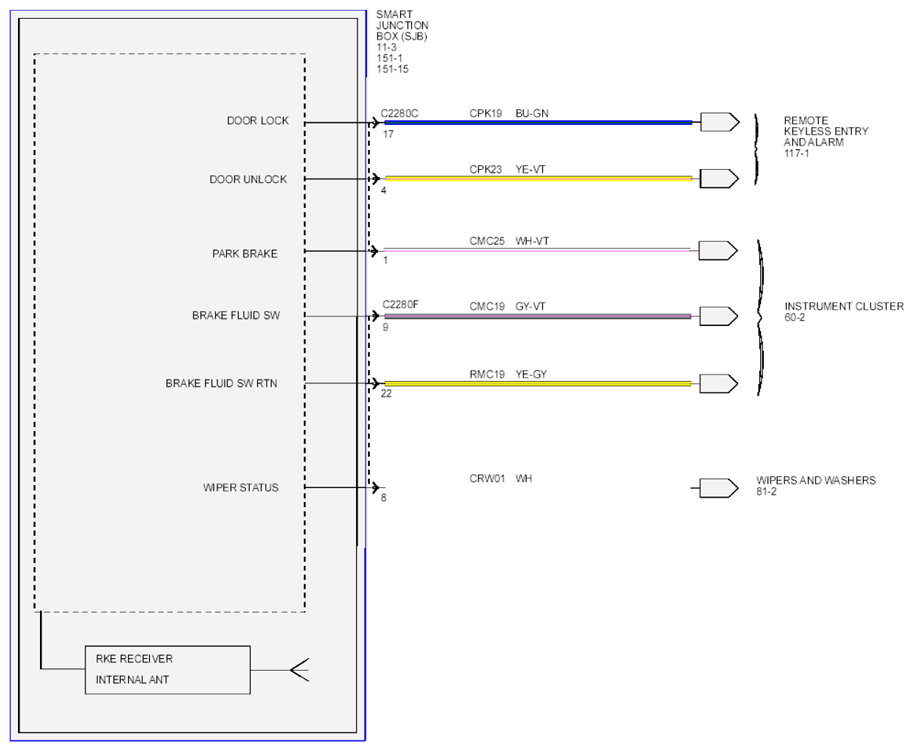

Fig 4: Power Distribution And SJB Circuit Diagram - F35, F36, F43, F45 And F46 (4 Of 4)
G07884380Courtesy of FORD MOTOR CO.
