Lincoln
>>
2011
>>
MKS EcoBoost
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Distribution_SJB
>>
F29, F31, F32, F33, F34
F29, F31, F32, F33, F34

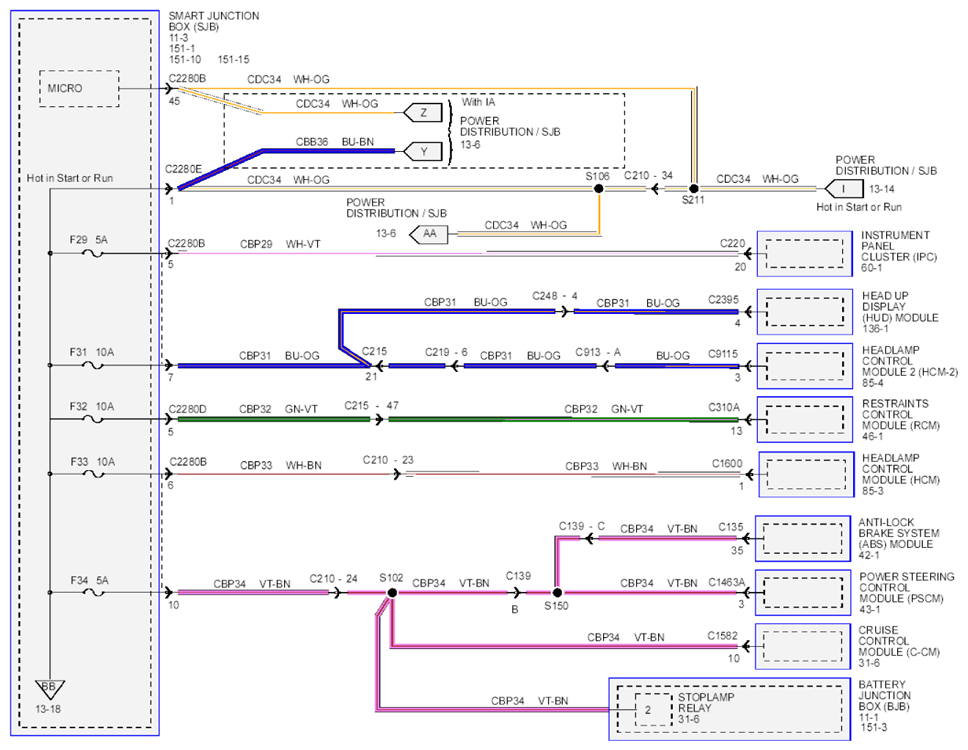

Fig 1: Power Distribution And SJB Circuit Diagram - F29, F31, F32, F33 And F34
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
