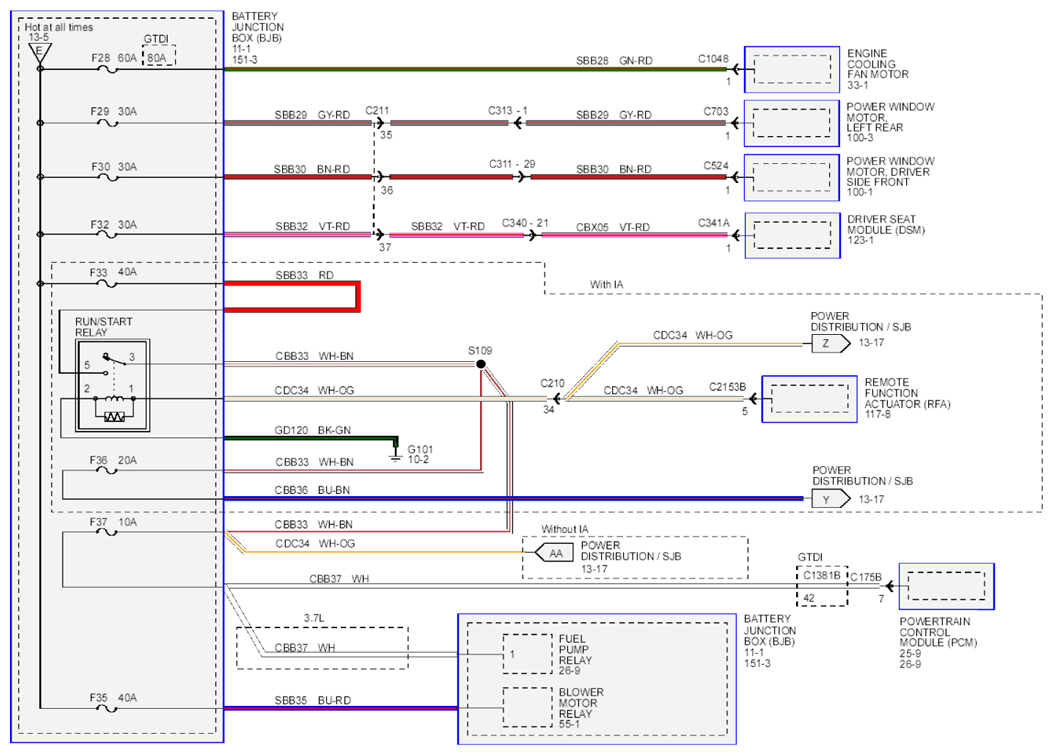

Home >> Lincoln >> 2011 >> MKS EcoBoost >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Wiring Diagrams >> Power Distribution_SJB >> F28, F29, F30, F32, F35, F36, F37
