Repair and Diagnosis (Single Page)
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams
>>
Power Distribution_SJB
>>
F12, F13, F14, F15, F16
F12, F13, F14, F15, F16

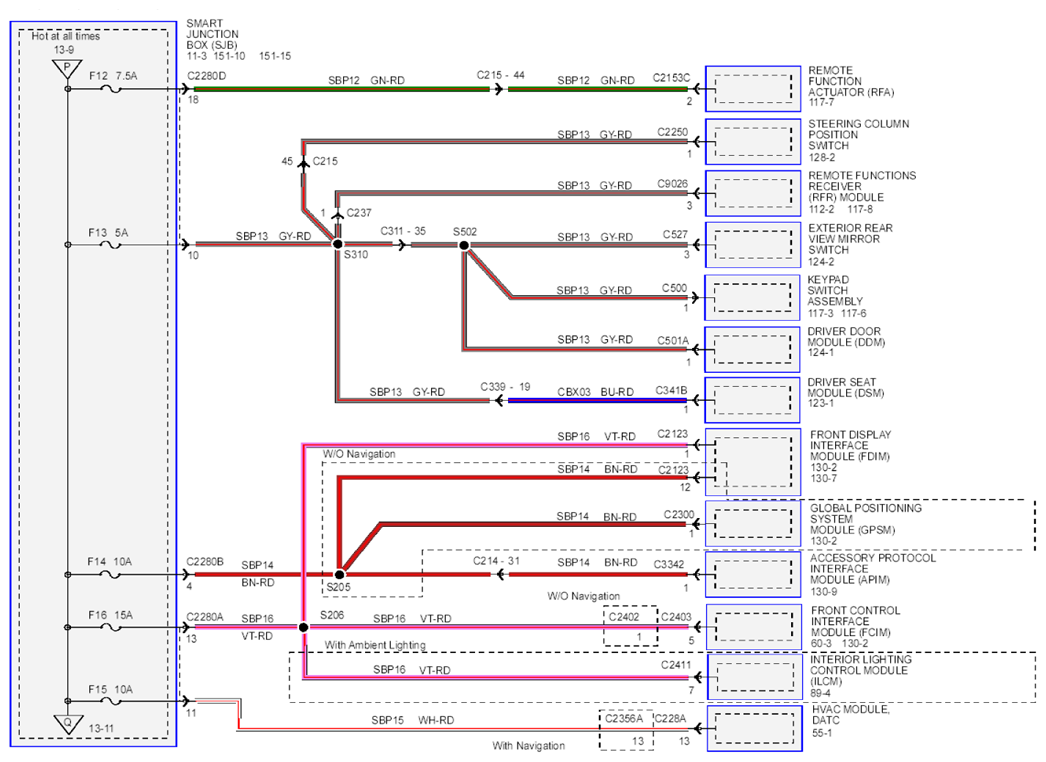

Fig 1: Power Distribution And SJB Circuit Diagram - F12, F13, F14, F15 And F16
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
