Passive Anti-Theft System
>>
With IA
With IA

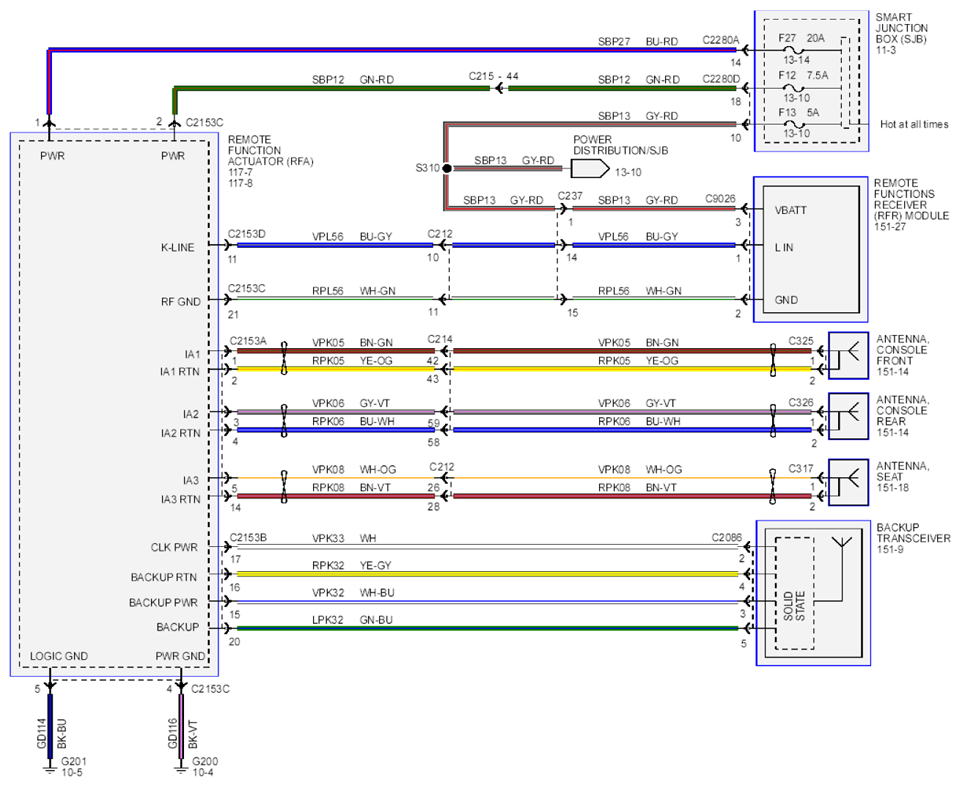

Fig 1: Passive Anti-Theft System Circuit Diagram (With IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
