Climate Controlled Seats

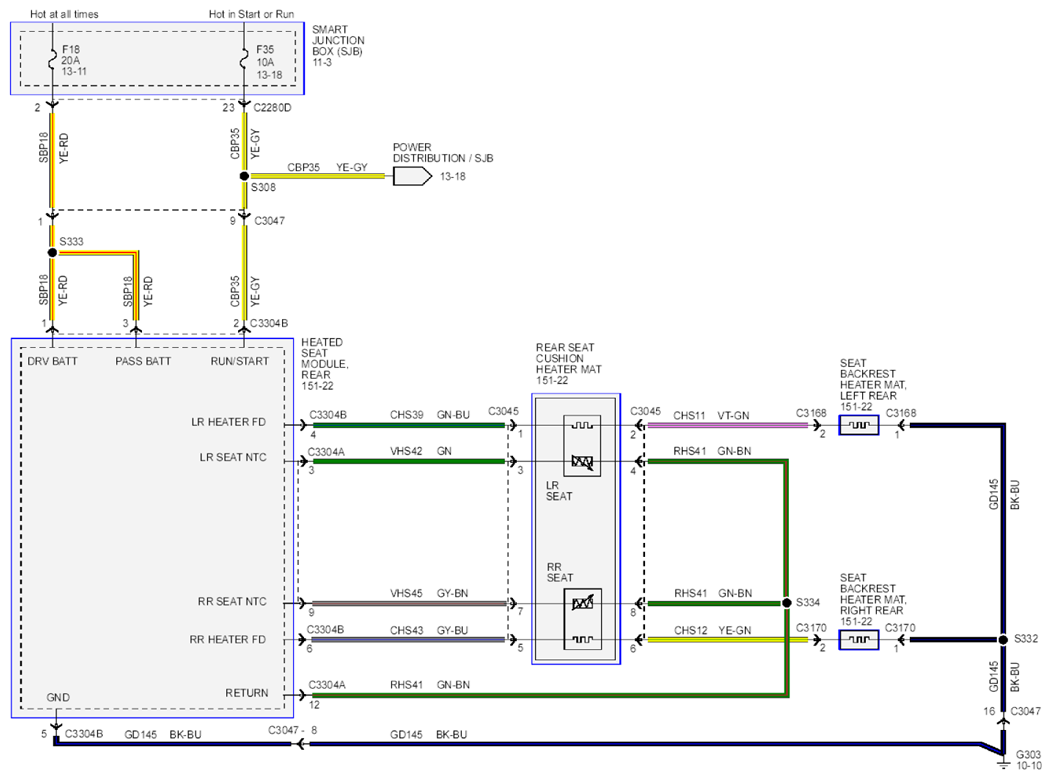

Fig 1: Climate Controlled Seats Circuit Diagram (1 Of 5)

Courtesy of FORD MOTOR CO.

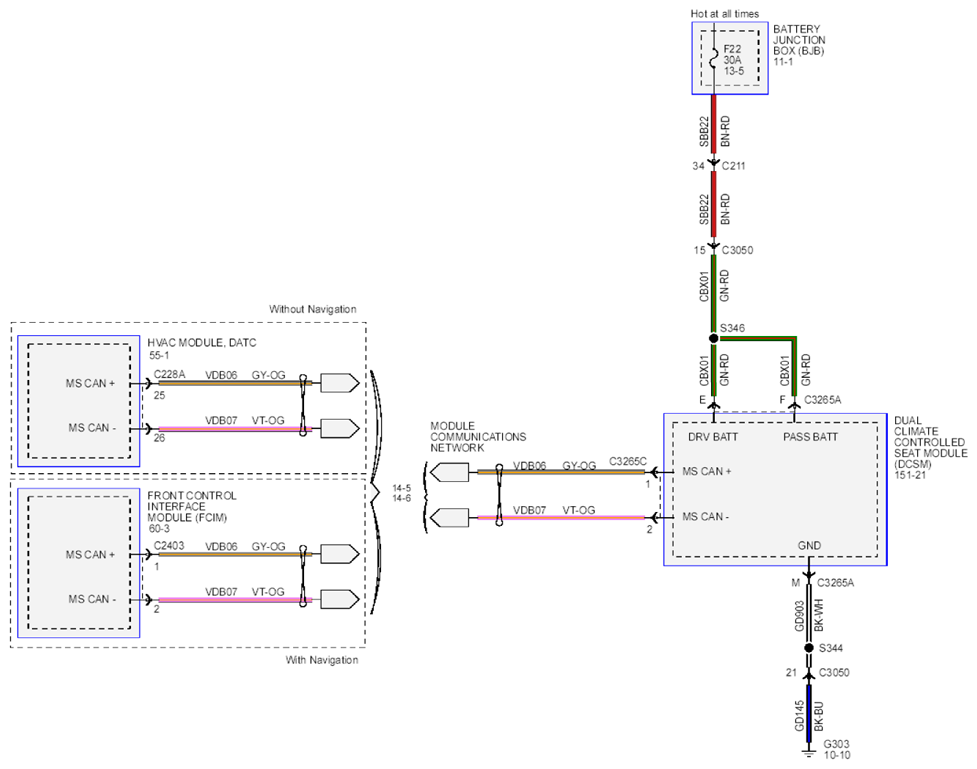

Fig 2: Climate Controlled Seats Circuit Diagram (2 Of 5)

Courtesy of FORD MOTOR CO.

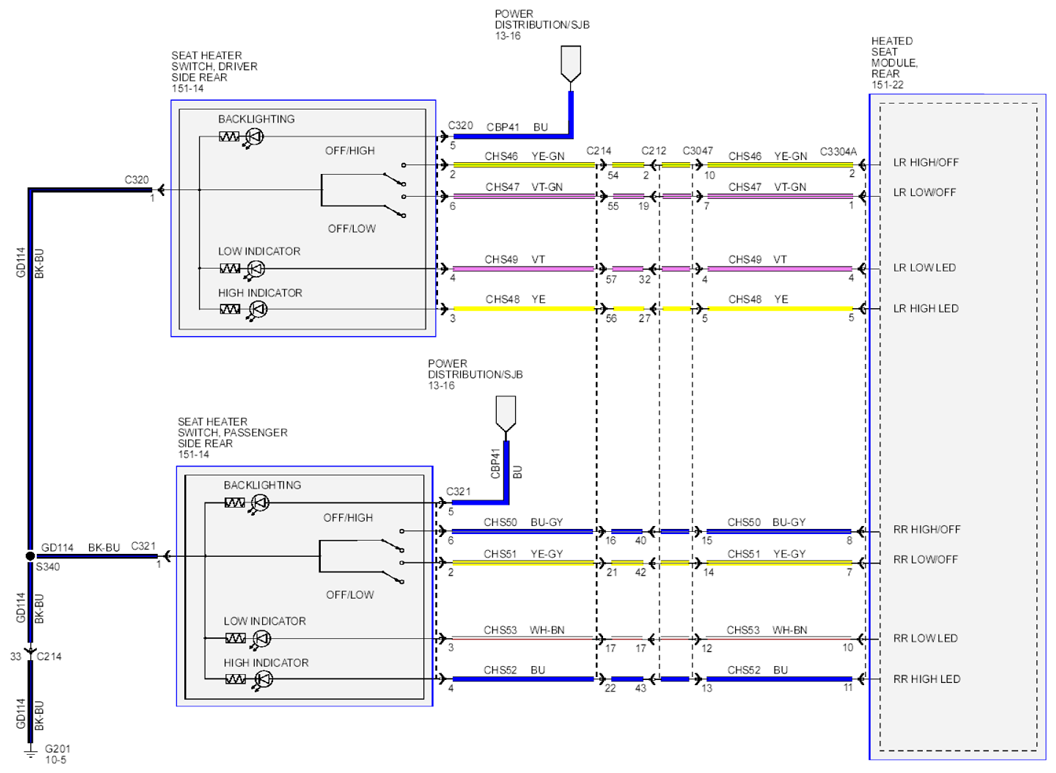

Fig 3: Climate Controlled Seats Circuit Diagram (3 Of 5)

Courtesy of FORD MOTOR CO.

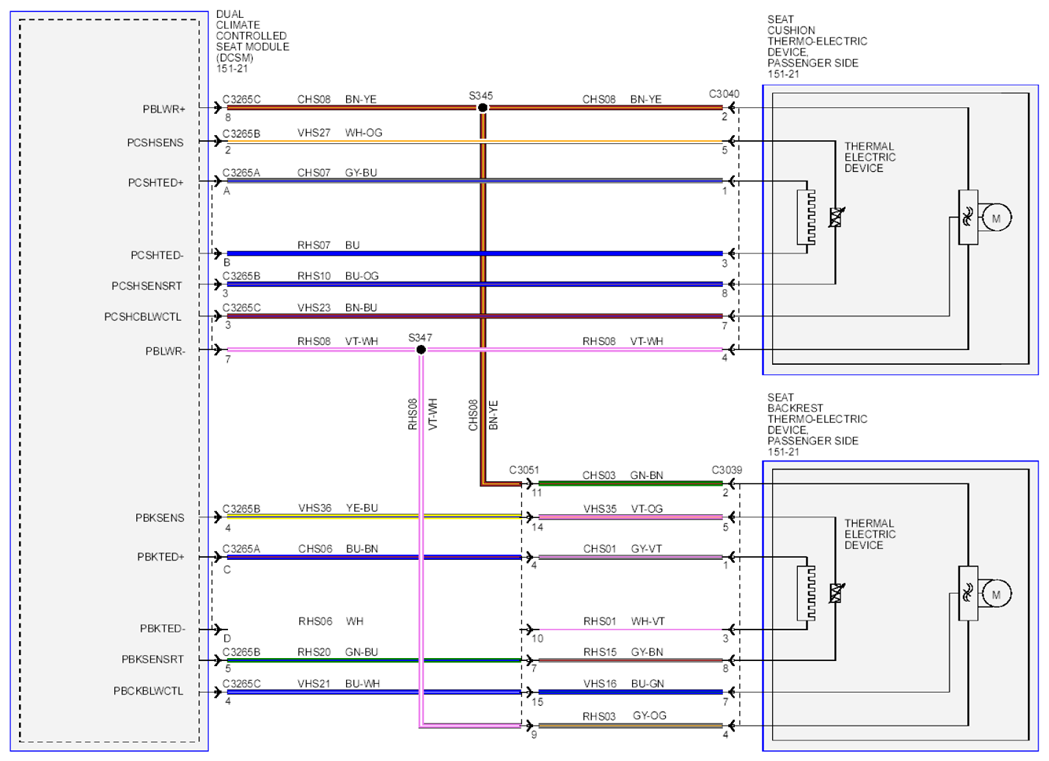

Fig 4: Climate Controlled Seats Circuit Diagram (4 Of 5)

Courtesy of FORD MOTOR CO.

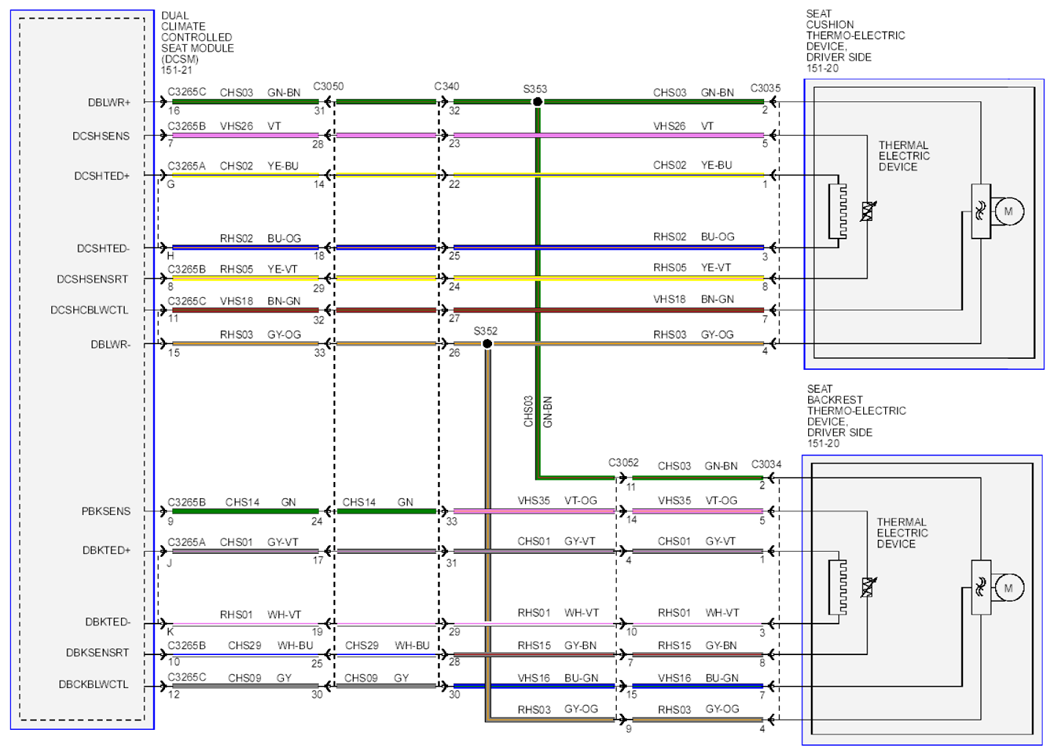

Fig 5: Climate Controlled Seats Circuit Diagram (5 Of 5)

Courtesy of FORD MOTOR CO.
