Variable Camshaft Timing Solenoid 2 Connector - C1452

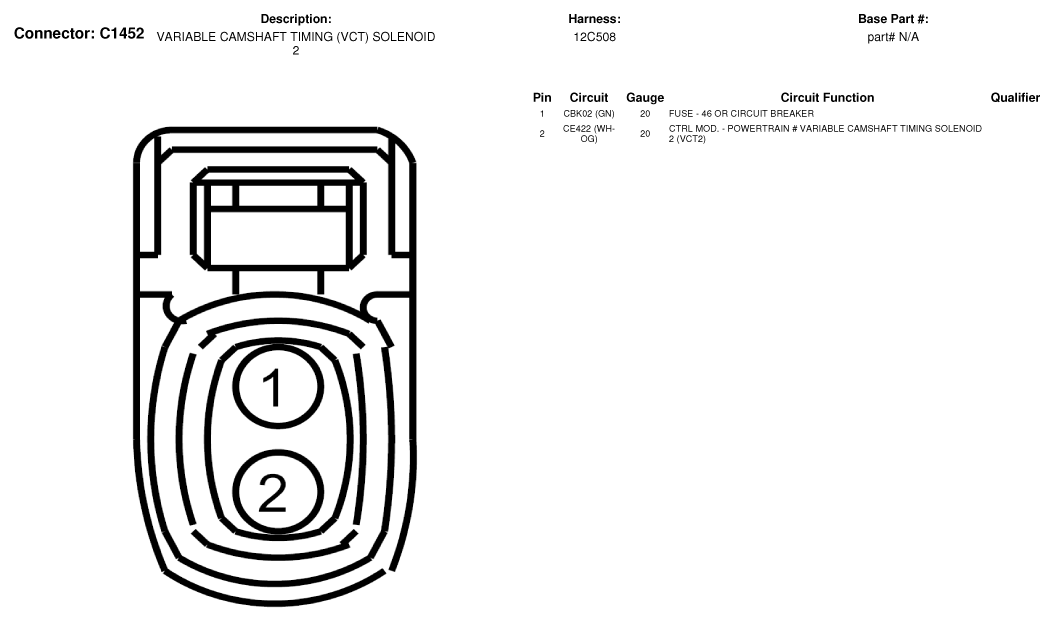

Fig 1: Variable Camshaft Timing Solenoid 2 Connector End View (C1452)
G07329985Courtesy of FORD MOTOR CO.
