Passenger Side Seat Backrest Thermoelectric Device Connector - C3039

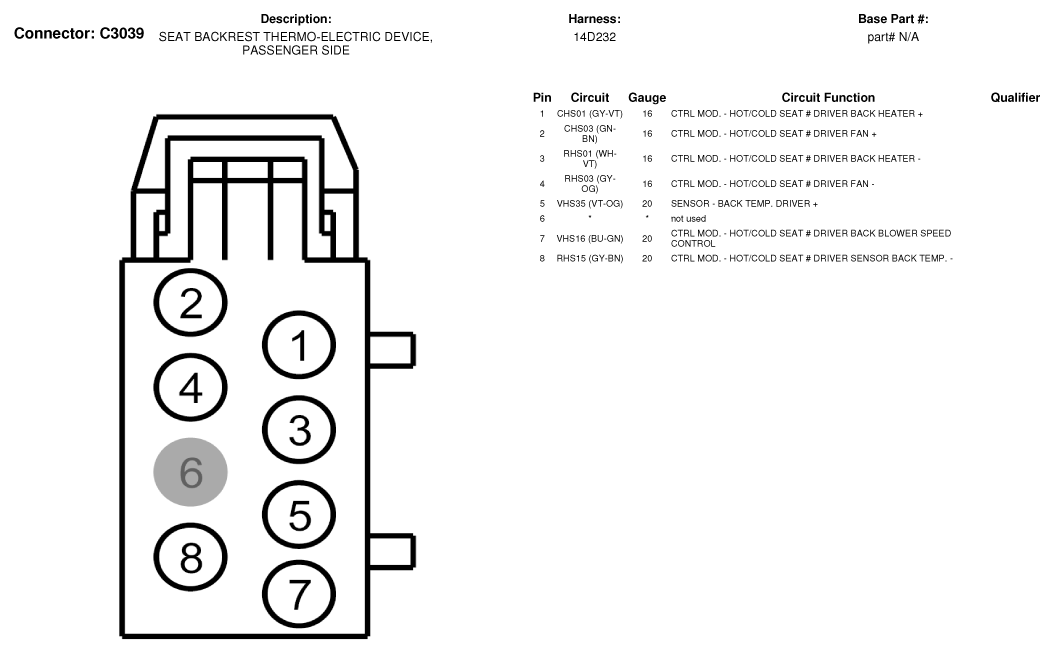

Fig 1: Passenger Side Seat Backrest Thermoelectric Device Connector End View (C3039)

G07330054

Courtesy of FORD MOTOR CO.
