Passenger Side Air Bag Module Connector - C337

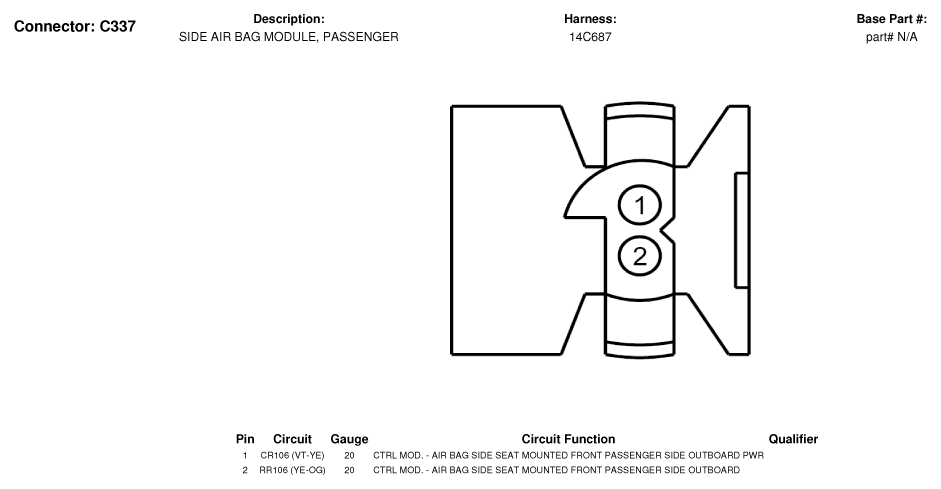

Fig 1: Passenger Side Air Bag Module Connector End View (C337)

G07329855

Courtesy of FORD MOTOR CO.
