Home >> Lincoln >> 2011 >> MKS EcoBoost >> Repair and Diagnosis (Single Page) >> Electrical >> Motors, Switches, Relays >> OEM Connector End Views >> Connector Views >> Passenger Seat Safety Belt Load Limiting Retractor Connector - C389

Passenger Seat Safety Belt Load Limiting Retractor Connector - C389

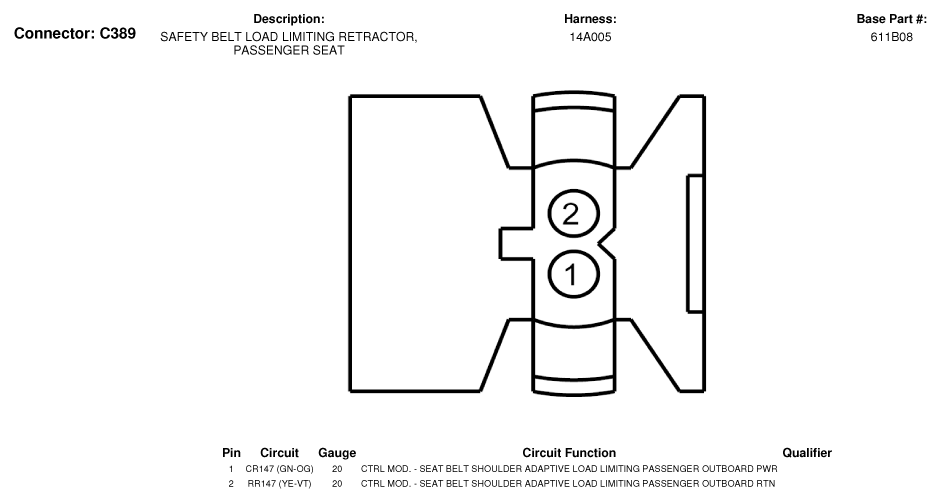

Fig 1: Passenger Seat Safety Belt Load Limiting Retractor Connector End View (C389)

G07329875

Courtesy of FORD MOTOR CO.
