Passenger Seat Recliner Motor Connector - C3189

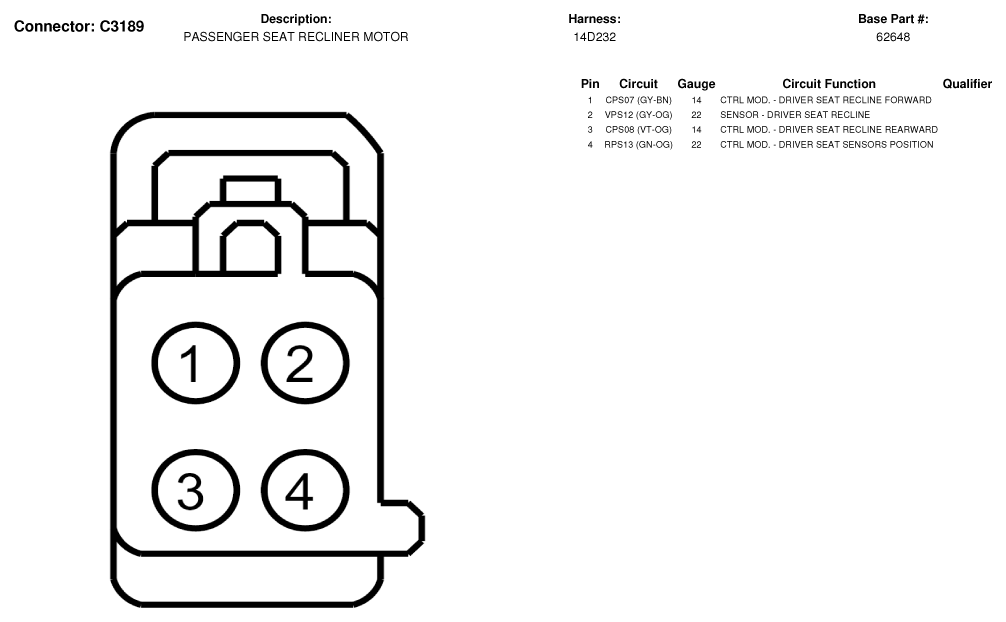

Fig 1: Passenger Seat Recliner Motor Connector End View (C3189)

G07330077

Courtesy of FORD MOTOR CO.
