Parking Aid Speaker Connector - C4015

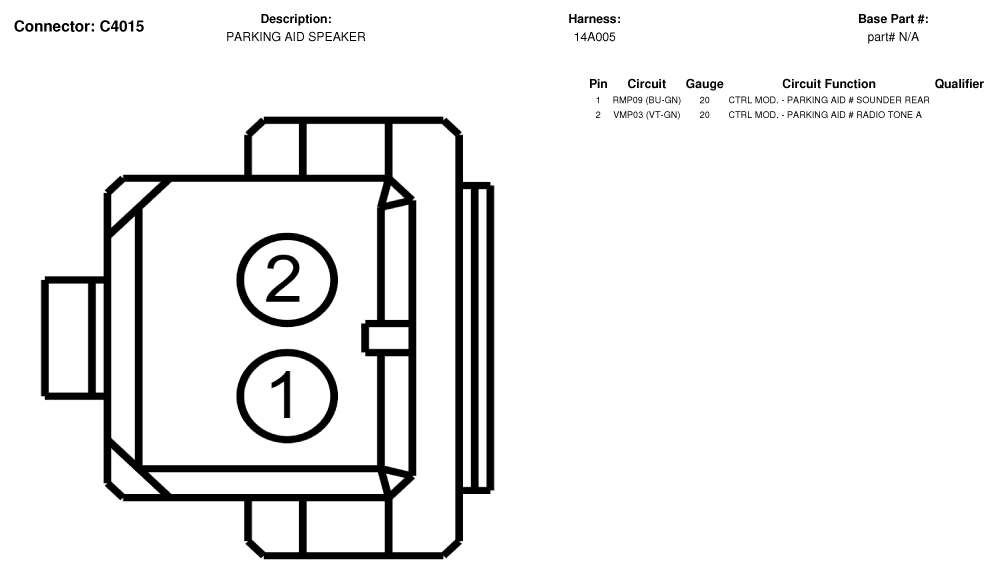

Fig 1: Parking Aid Speaker Connector End View (C4015)

G07330115

Courtesy of FORD MOTOR CO.
