Outer Right Rear Parking Aid Sensor Connector - C4011

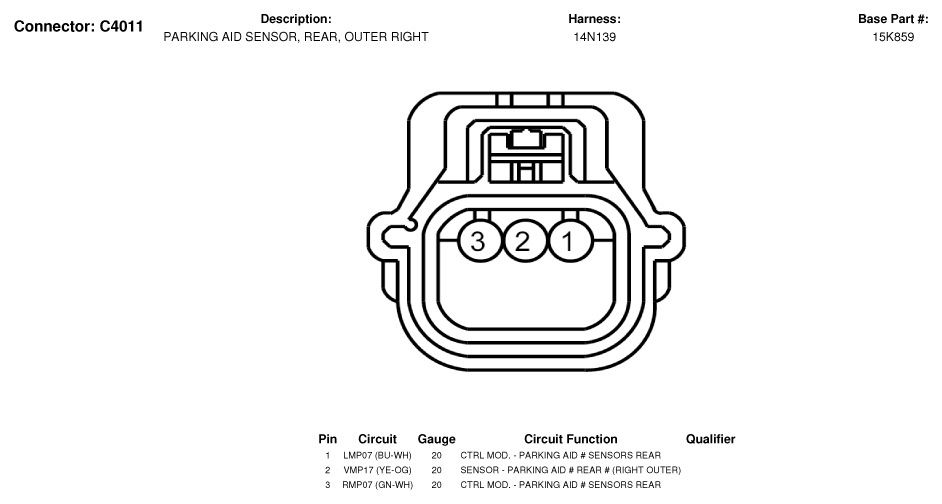

Fig 1: Outer Right Rear Parking Aid Sensor Connector End View (C4011)

G07330113

Courtesy of FORD MOTOR CO.
