Front Parking Aid Speaker Connector - C2277

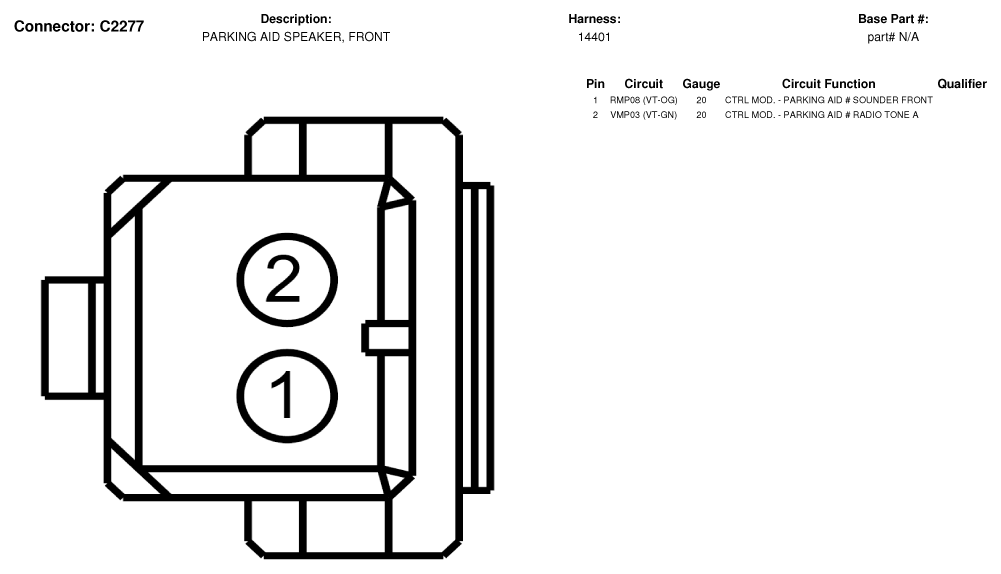

Fig 1: Front Parking Aid Speaker Connector End View (C2277)

G07330025

Courtesy of FORD MOTOR CO.
