2011 MKS Location Index: Connectors

Fig 1: Identifying C100 A/C Compressor Clutch Field Coil Location - Engine, LH Front

Courtesy of FORD MOTOR CO.

Fig 2: Identifying C101 Crankshaft Position (CKP) Sensor Location - Engine, Bottom Rear LH Side

Courtesy of FORD MOTOR CO.

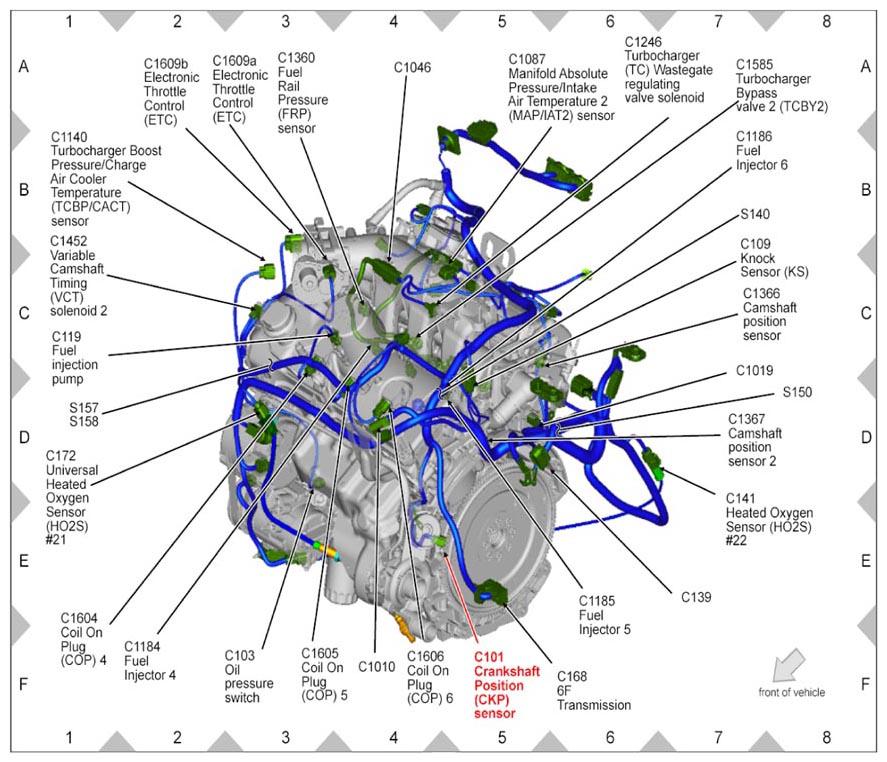

Fig 3: Identifying C101 Crankshaft Position (CKP) Sensor Location - (3.5L GTDI) Engine, Bottom Rear LH Side

Courtesy of FORD MOTOR CO.

Fig 4: Identifying C102A Generator Location - Engine, LH Front

Courtesy of FORD MOTOR CO.

Fig 5: Identifying C102B Generator Location - Engine, LH Front

Courtesy of FORD MOTOR CO.

Fig 6: Identifying C103 Oil Pressure Switch Location - Engine, Bottom, Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 7: Identifying C103 Oil Pressure Switch Location - (3.5L GTDI) Engine, Bottom, Rear, LH Side

Courtesy of FORD MOTOR CO.

Fig 8: Identifying C107 Cylinder Head Temperature Sensor Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 9: Identifying C109 Knock Sensor (KS) Location - Engine, Top Rear

Courtesy of FORD MOTOR CO.

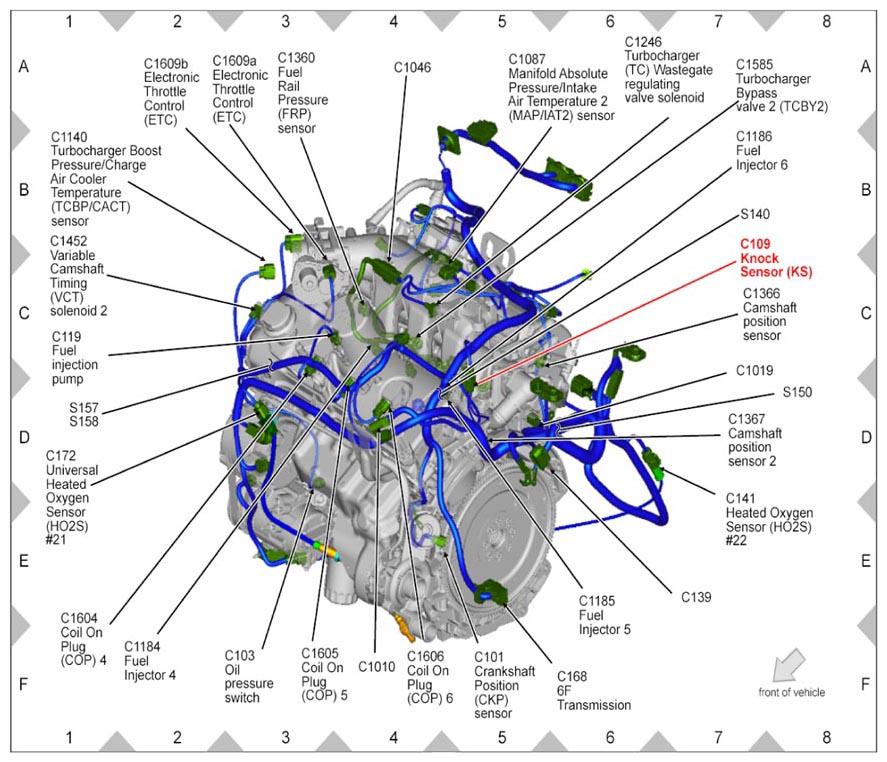

Fig 10: Identifying C109 Knock Sensor (KS) Location - (3.5L GTDI) Engine, Top Rear

Courtesy of FORD MOTOR CO.

Fig 11: Identifying C110 Connector Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 12: Identifying C111 Coil On Plug (COP) 1 Location - Engine, Top Front RH Side

Courtesy of FORD MOTOR CO.

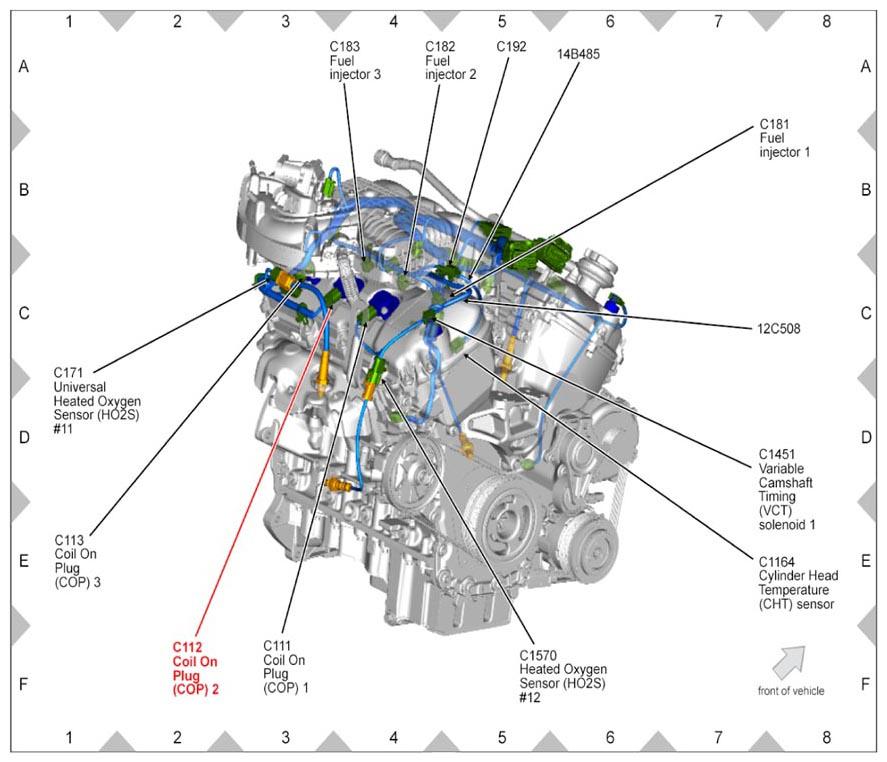

Fig 13: Identifying C112 Coil On Plug (COP) 2 Location - Engine, Top RH Side

Courtesy of FORD MOTOR CO.

Fig 14: Identifying C113 Coil On Plug (COP) 3 Location - Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 15: Identifying C114 Coil On Plug (COP) 4 Location - Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 16: Identifying C115 Coil On Plug (COP) 5 Location - Engine, Top LH Side

Courtesy of FORD MOTOR CO.

Fig 17: Identifying C116 Coil On Plug (COP) 6 Location - Engine, Top Rear LH Side

Courtesy of FORD MOTOR CO.

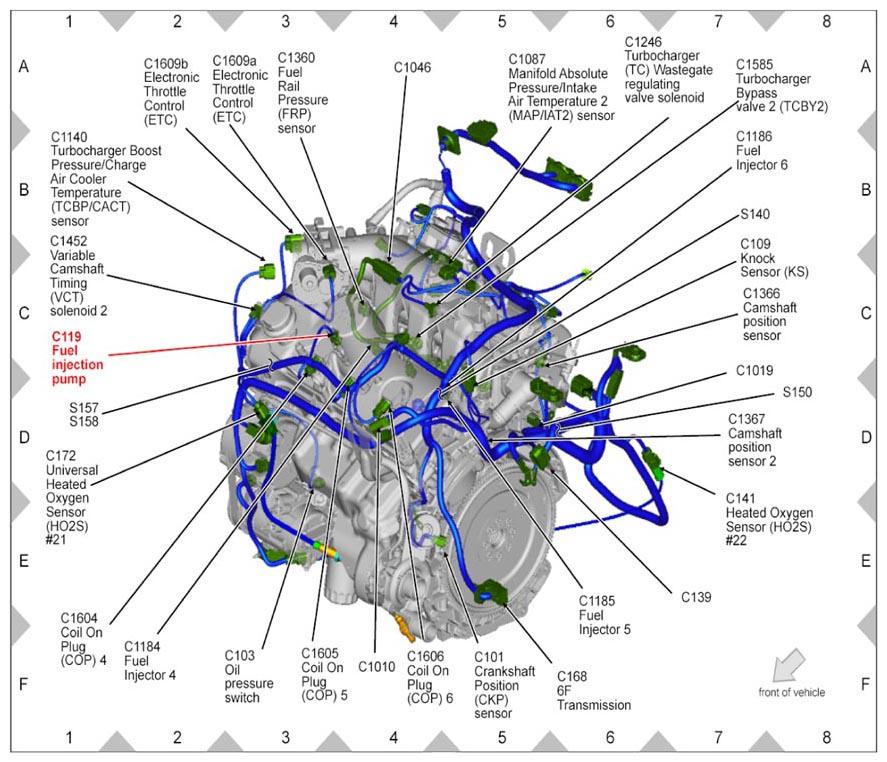

Fig 18: Identifying C119 Fuel Injection Pump Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 19: Identifying C124 Brake Fluid Level Switch Location - Engine Compartment, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 20: Identifying C125 Windshield Wiper Motor Location - Engine Compartment, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 21: Identifying C127 Hood Switch Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

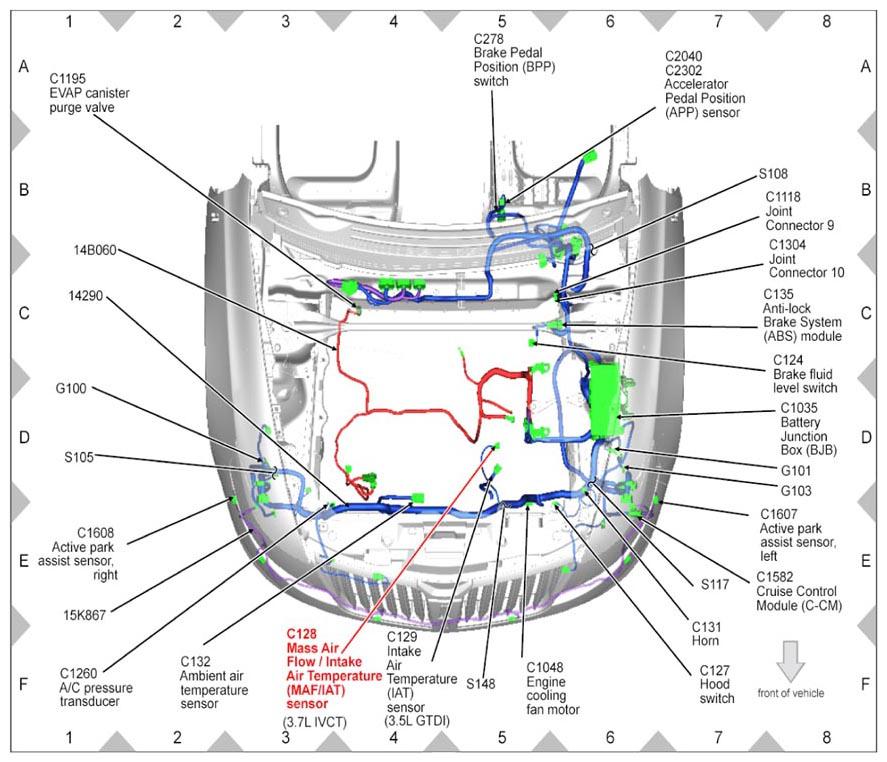

Fig 22: Identifying C128 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor Location - (3.7L IVCT) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 23: Identifying C129 Intake Air Temperature (IAT) Sensor Location - (3.5L GTDI) Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 24: Identifying C131 Horn Location - Engine Compartment, LH Front

Courtesy of FORD MOTOR CO.

Fig 25: Identifying C132 Ambient Air Temperature Sensor Location - Engine Compartment, Center Front

Courtesy of FORD MOTOR CO.

Fig 26: Identifying C134 Connector Location - Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 27: Identifying C134 Connector Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

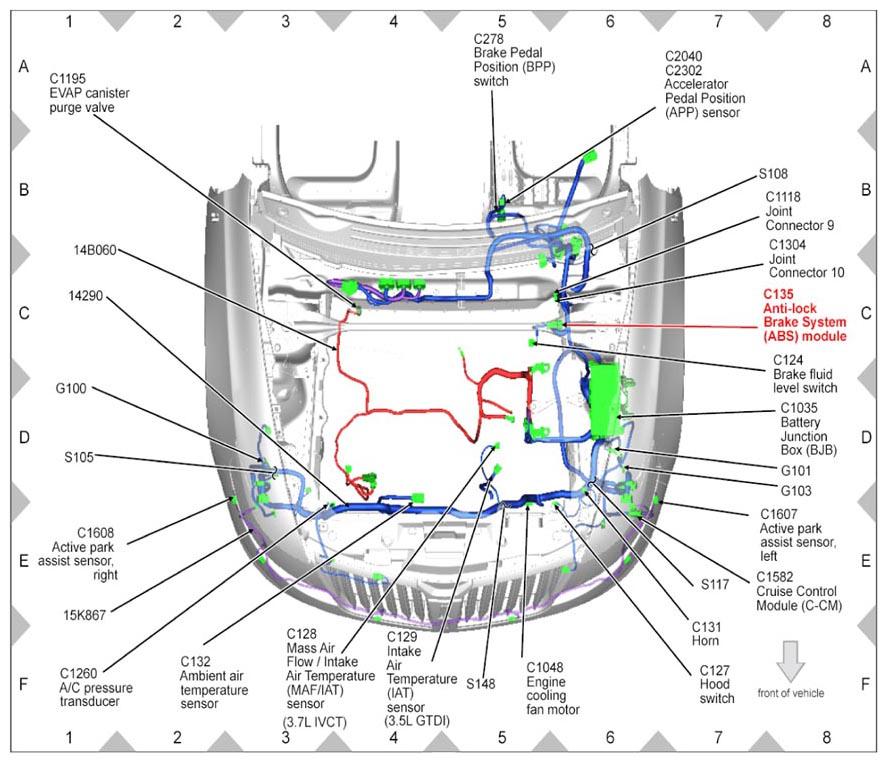

Fig 28: Identifying C135 Anti-Lock Brake System (ABS) Module Location - Engine Compartment, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 29: Identifying C137 Windshield Washer Pump Motor Location - Engine Compartment, RH Side Front

Courtesy of FORD MOTOR CO.

Fig 30: Identifying C138 Washer Fluid Level Switch Location - Engine Compartment, RH Side Front

Courtesy of FORD MOTOR CO.

Fig 31: Identifying C139 Connector Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 32: Identifying C139 Connector Location - (3.5L GTDI) LH Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

Fig 33: Identifying C141 Heated Oxygen Sensor (HO2S) #22 Location - (3.5L GTDI) Engine, Rear LH Side

Courtesy of FORD MOTOR CO.

Fig 34: Identifying C142 Heated Oxygen Sensor (HO2S) #12 Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 35: Identifying C145 Connector Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 36: Identifying C146 Connector Location - Engine Compartment, RH Side Front

Courtesy of FORD MOTOR CO.

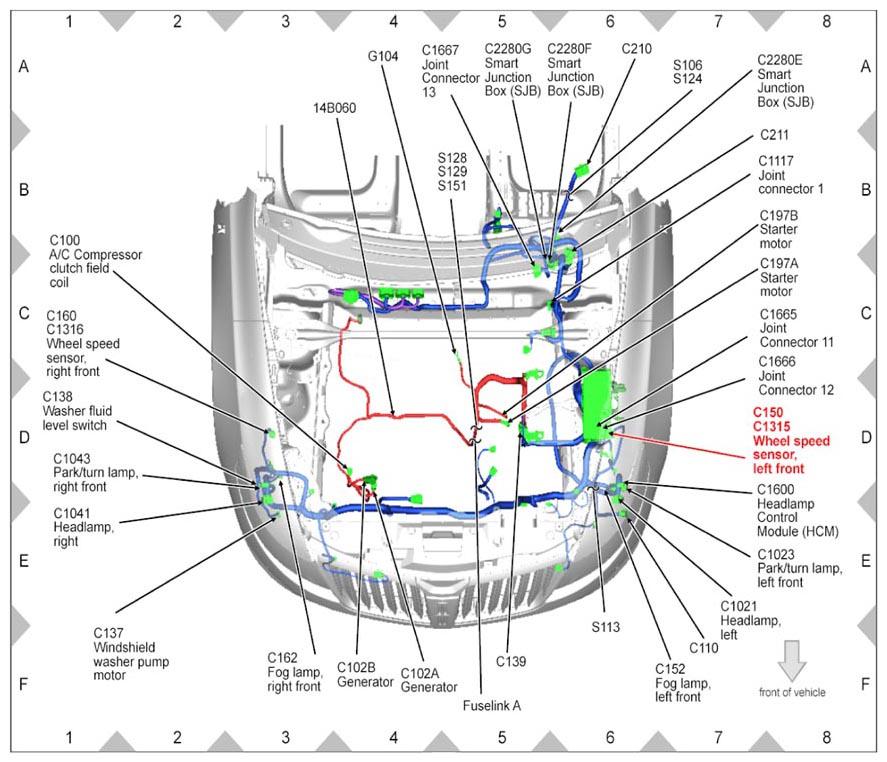

Fig 37: Identifying C150 Wheel Speed Sensor, Left Front Location - Engine Compartment, Near LH Side Wheel Well

Courtesy of FORD MOTOR CO.

Fig 38: Identifying C152 Fog Lamp, Left Front Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 39: Identifying C160 Wheel Speed Sensor, Right Front Location - Engine Compartment, Near RH Side Wheel Well

Courtesy of FORD MOTOR CO.

Fig 40: Identifying C162 Fog Lamp, Right Front Location - Engine Compartment, RH Side Front

Courtesy of FORD MOTOR CO.

Fig 41: Identifying C168 6F Transmission Location - Front LH Side Of Engine Compartment On Transaxle

Courtesy of FORD MOTOR CO.

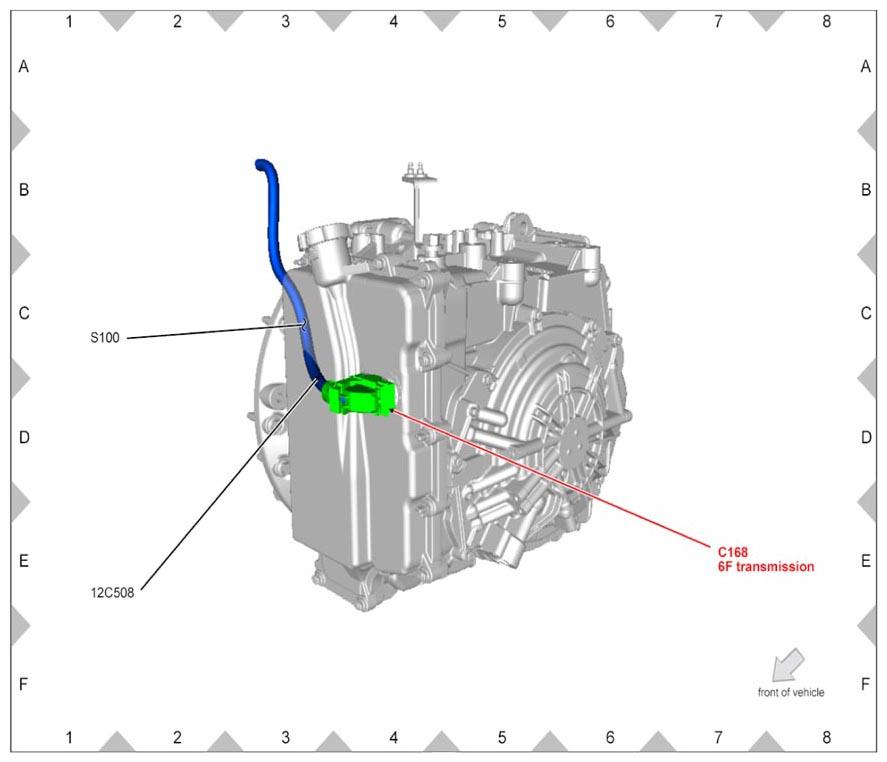

Fig 42: Identifying C168 6F Transmission Location - (3.5L GTDI) On Transmission, Front LH

Courtesy of FORD MOTOR CO.

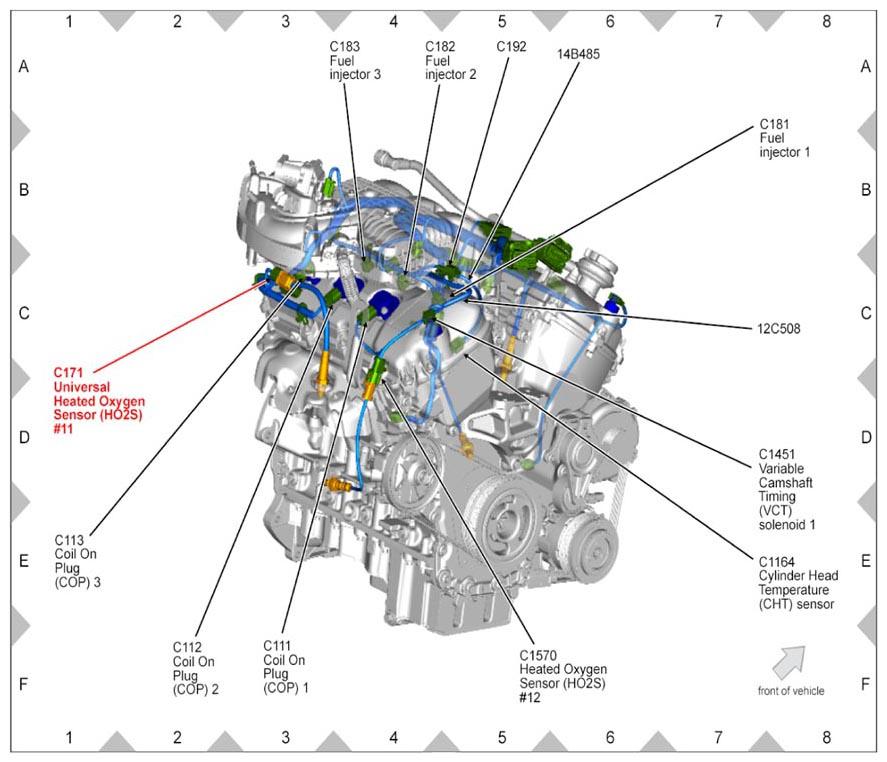

Fig 43: Identifying C171 Universal Heated Oxygen Sensor (HO2S) #11 Location - Engine, Rear RH Side On Exhaust System

Courtesy of FORD MOTOR CO.

Fig 44: Identifying C171 Universal Heated Oxygen Sensor (HO2S) #11 Location - (3.5L GTDI) Engine, Rear LH Side On Exhaust System

Courtesy of FORD MOTOR CO.

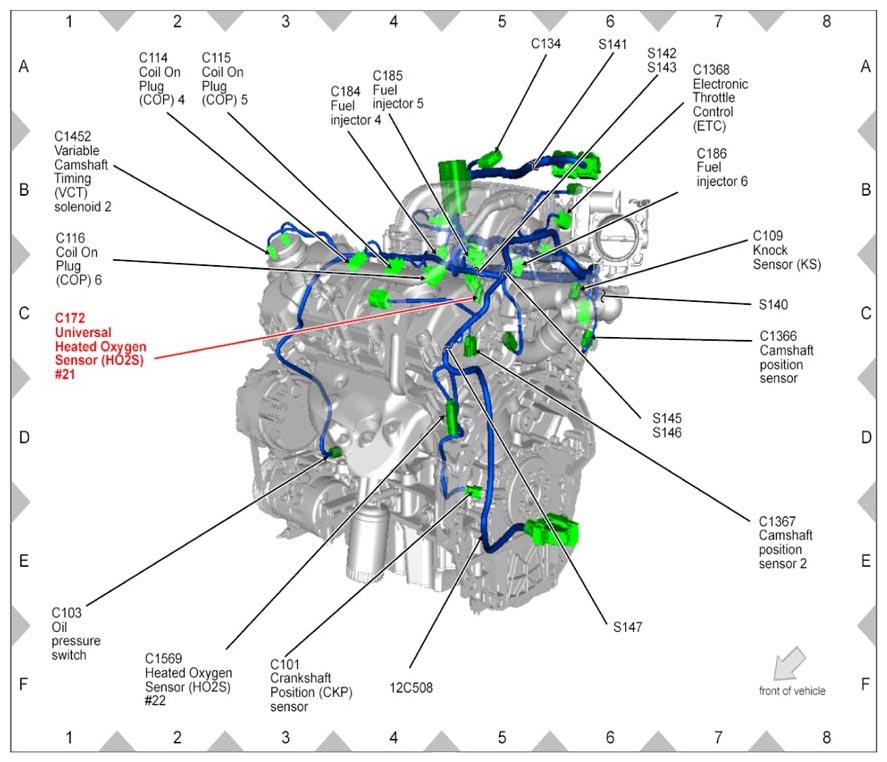

Fig 45: Identifying C172 Universal Heated Oxygen Sensor (HO2S) #21 Location - Engine, LH Side On Exhaust System

Courtesy of FORD MOTOR CO.

Fig 46: Identifying C172 Universal Heated Oxygen Sensor (HO2S) #21 Location - (3.5L GTDI) Engine, LH Side On Exhaust System

Courtesy of FORD MOTOR CO.

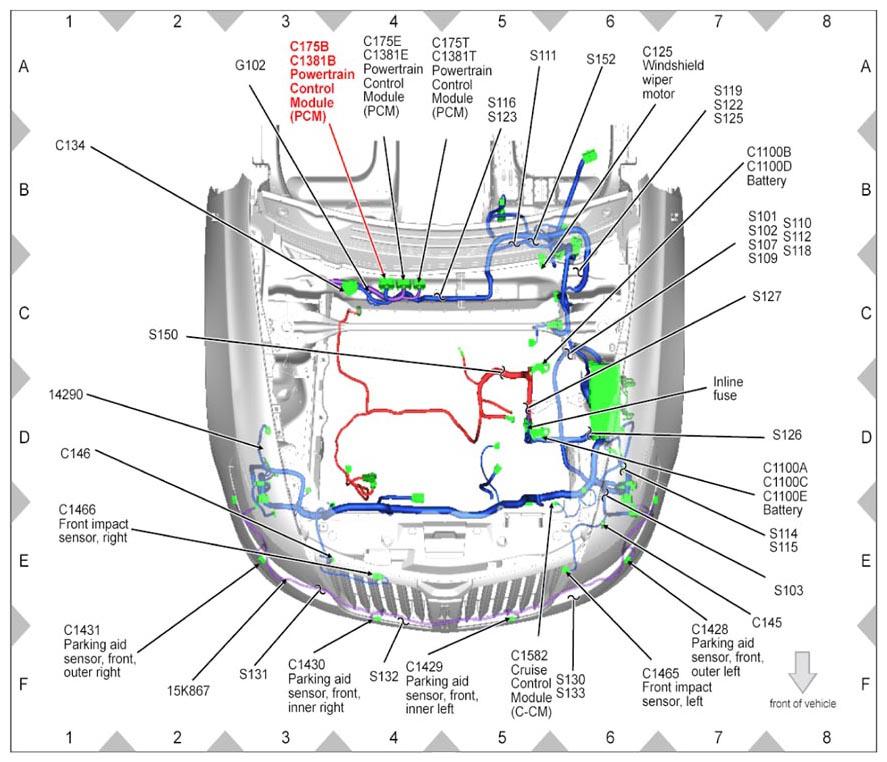

Fig 47: Identifying C175B Powertrain Control Module (PCM) Location - Engine Compartment, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 48: Identifying C175E Powertrain Control Module (PCM) Location - Engine Compartment, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 49: Identifying C175T Powertrain Control Module (PCM) Location - Engine Compartment, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 50: Identifying C181 Fuel Injector 1 Location - Engine, Top Front RH Side

Courtesy of FORD MOTOR CO.

Fig 51: Identifying C182 Fuel Injector 2 Location - Engine, Top RH Side

Courtesy of FORD MOTOR CO.

Fig 52: Identifying C183 Fuel Injector 3 Location - Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

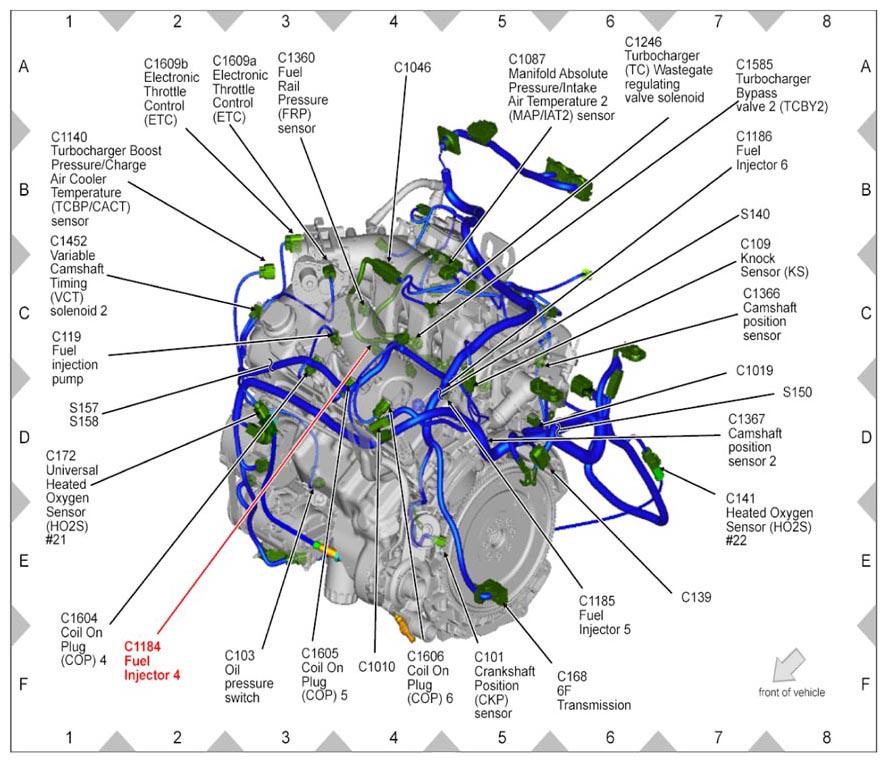

Fig 53: Identifying C184 Fuel Injector 4 Location - Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

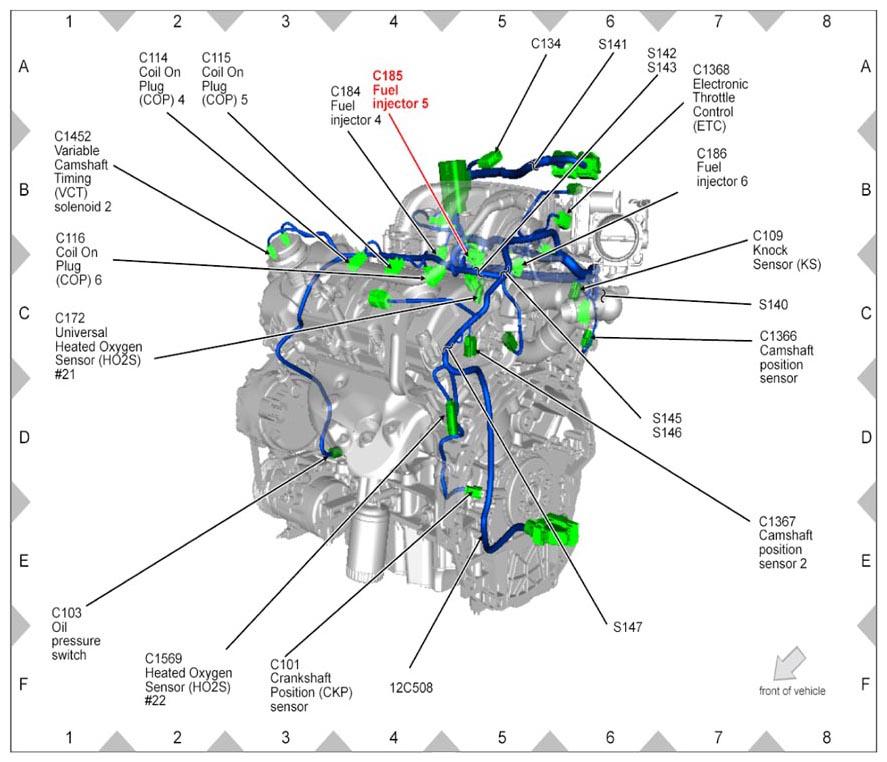

Fig 54: Identifying C185 Fuel Injector 5 Location - Engine, Top LH Side

Courtesy of FORD MOTOR CO.

Fig 55: Identifying C186 Fuel Injector 6 Location - Engine, Top Front RH Side

Courtesy of FORD MOTOR CO.

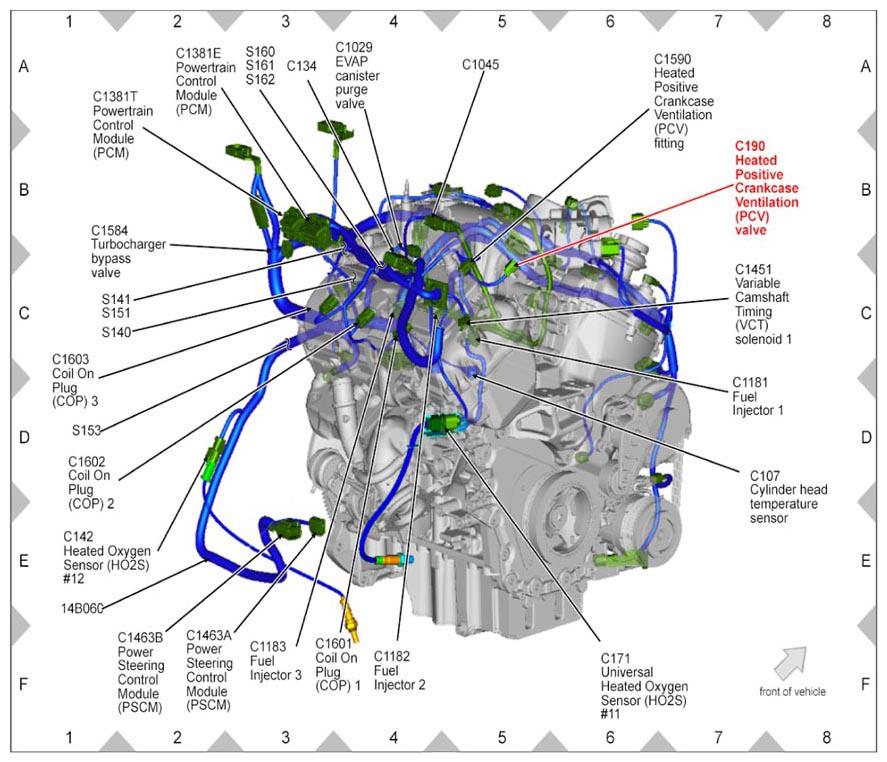

Fig 56: Identifying C190 Heated Positive Crankcase Ventilation (PCV) Valve Location - (3.5L GTDI) Engine, Top Front RH Side

Courtesy of FORD MOTOR CO.

Fig 57: Identifying C192 Connector Location - Engine, Top

Courtesy of FORD MOTOR CO.

Fig 58: Identifying C197A Starter Motor Location - Engine, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 59: Identifying C197B Starter Motor Location - Engine, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 60: Identifying C202 Multifunction Switch Location - Steering Column

Courtesy of FORD MOTOR CO.

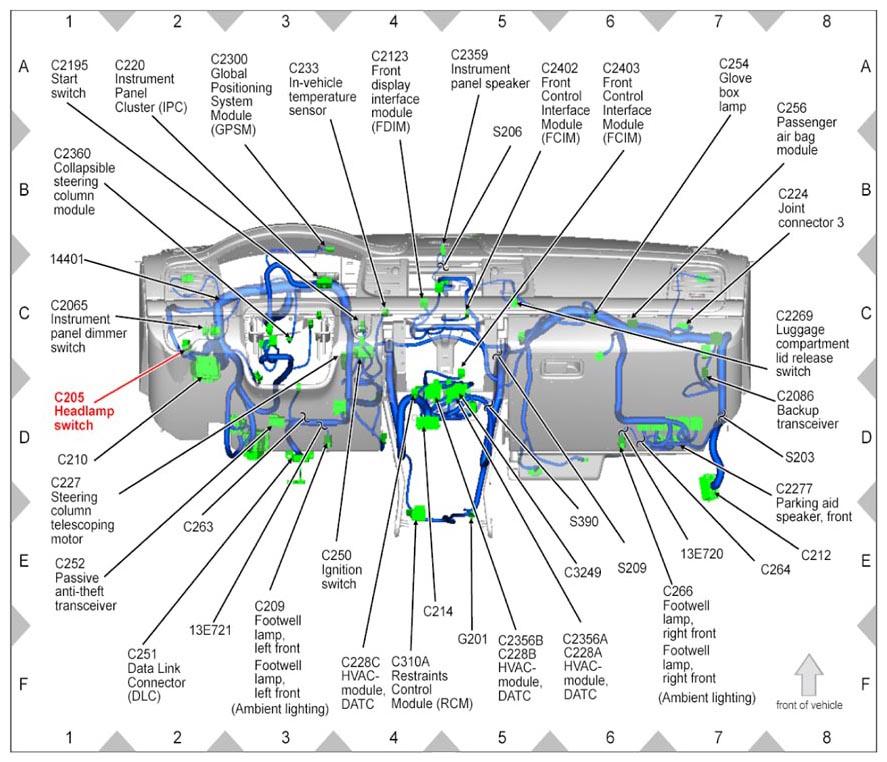

Fig 61: Identifying C205 Headlamp Switch Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 62: Identifying C209 Footwell Lamp, Left Front Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 63: Identifying C210 Connector Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 64: Identifying C211 Connector Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 65: Identifying C212 Connector Location - Kick Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 66: Identifying C213 Connector Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 67: Identifying C214 Connector Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

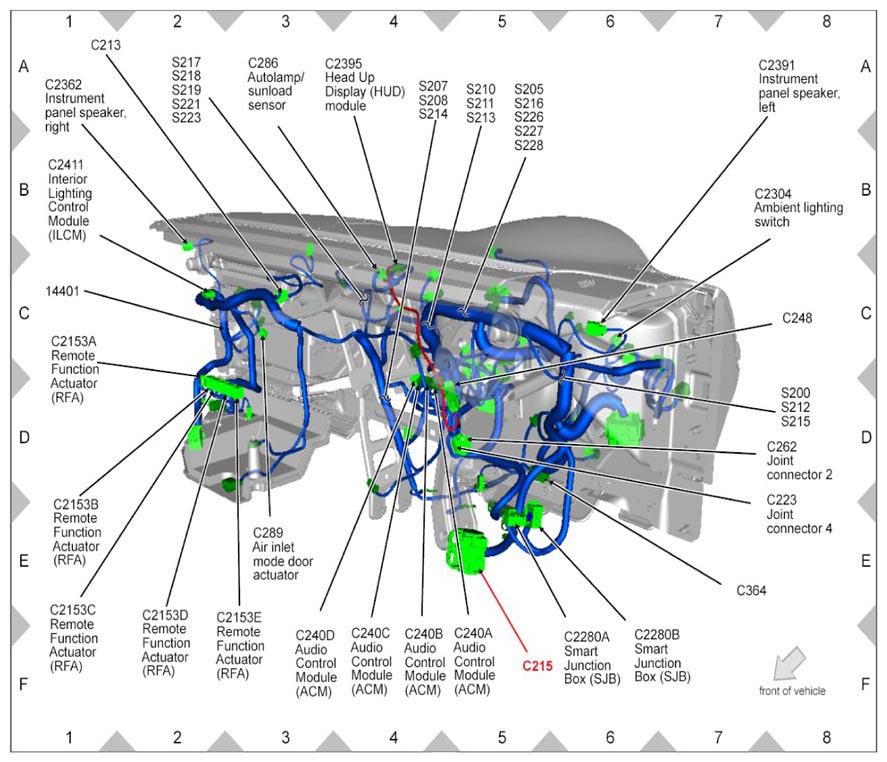

Fig 68: Identifying C215 Connector Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

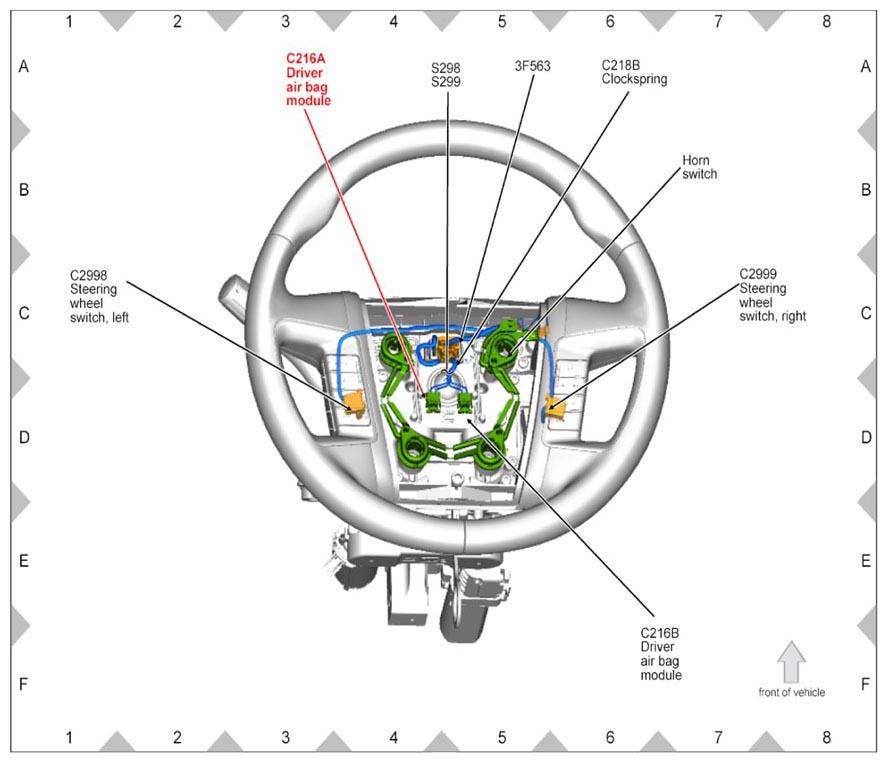

Fig 69: Identifying C216A Driver Air Bag Module Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 70: Identifying C216B Driver Air Bag Module Location - Steering Wheel

Courtesy of FORD MOTOR CO.

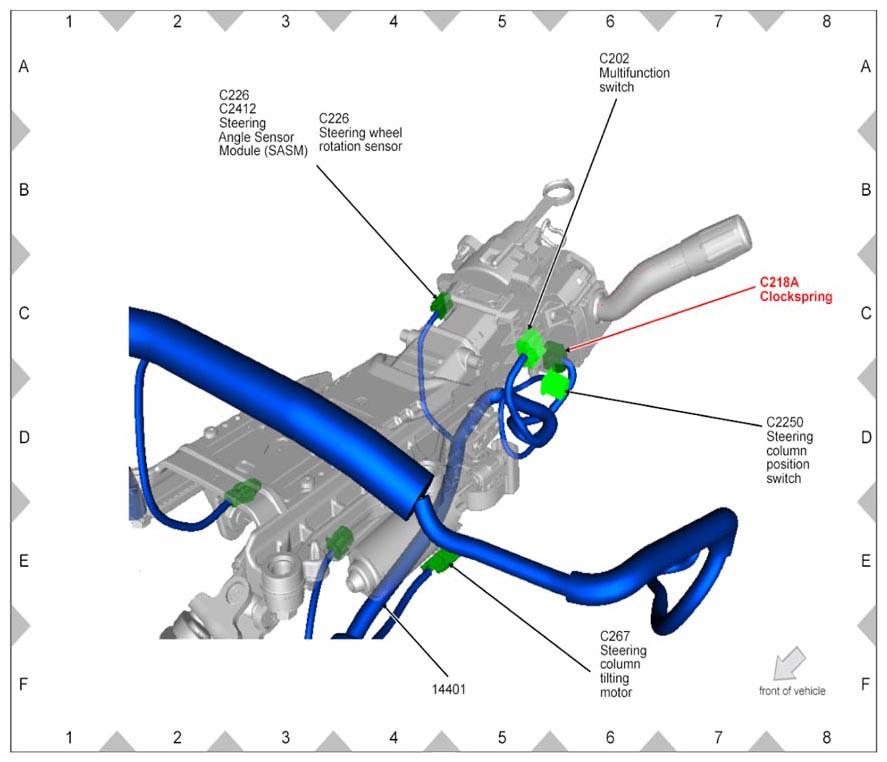

Fig 71: Identifying C218A Clockspring Location - Steering Column

Courtesy of FORD MOTOR CO.

Fig 72: Identifying C218B Clockspring Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 73: Identifying C219 Connector Location - LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 74: Identifying C220 Instrument Panel Cluster (IPC) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

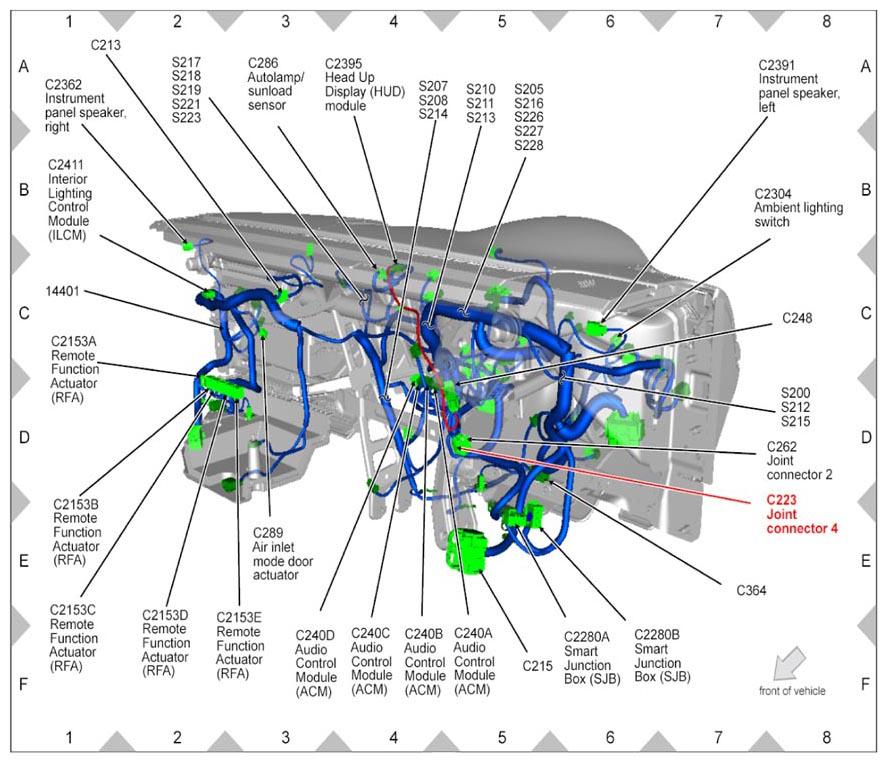

Fig 75: Identifying C223 Joint Connector 4 Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

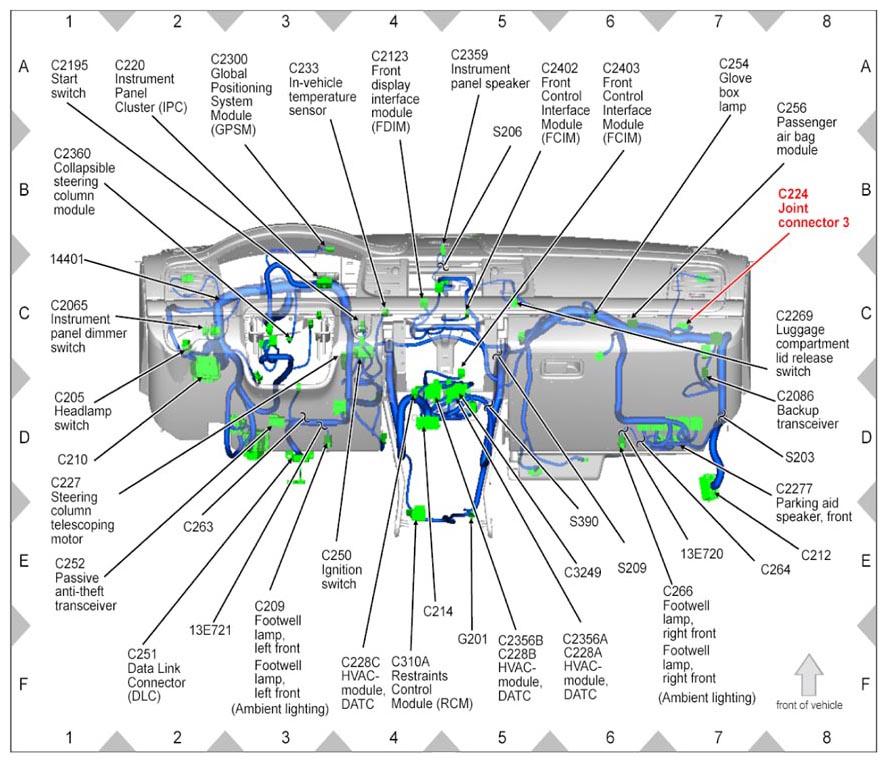

Fig 76: Identifying C224 Joint Connector 3 Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 77: Identifying C226 Steering Angle Sensor Module (SASM)/ Steering Wheel Rotation Sensor Location - Steering Column

Courtesy of FORD MOTOR CO.

Fig 78: Identifying C227 Steering Column Telescopic Motor Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 79: Identifying C228A HVAC-Module, DATC Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 80: Identifying C228B HVAC-Module, DATC Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

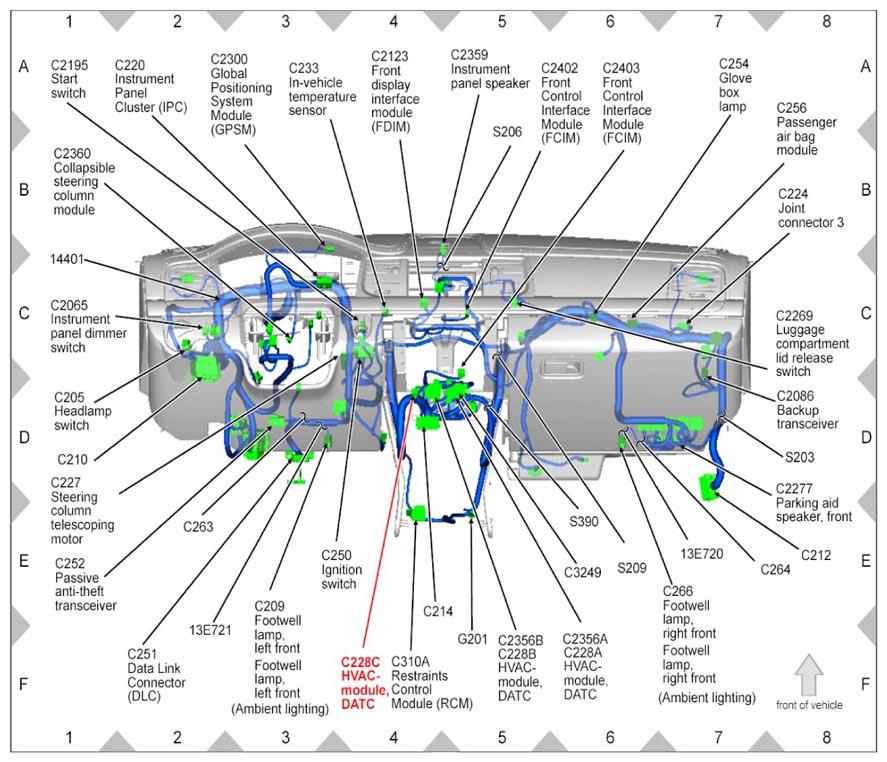

Fig 81: Identifying C228C HVAC-Module, DATC Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 82: Identifying C230 Speaker, Left A-Pillar Location - Middle, LH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 83: Identifying C231 Speaker, Right A-Pillar Location - Middle, RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 84: Identifying C233 In-Vehicle Temperature Sensor Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 85: Identifying C237 Connector Location - Middle, RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 86: Identifying C240A Audio Control Module (ACM) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 87: Identifying C240B Audio Control Module (ACM) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 88: Identifying C240C Audio Control Module (ACM) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 89: Identifying C240D Audio Control Module (ACM) Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 90: Identifying C248 Connector Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 91: Identifying C250 Ignition Switch Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 92: Identifying C251 Data Link Connector (DLC) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 93: Identifying C252 Passive Anti-Theft Transceiver Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 94: Identifying C254 Glove Box Lamp Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 95: Identifying C256 Passenger Air Bag Module Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 96: Identifying C262 Joint Connector 2 Location - Behind Dash Panel, Left

Courtesy of FORD MOTOR CO.

Fig 97: Identifying C263 Connector Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

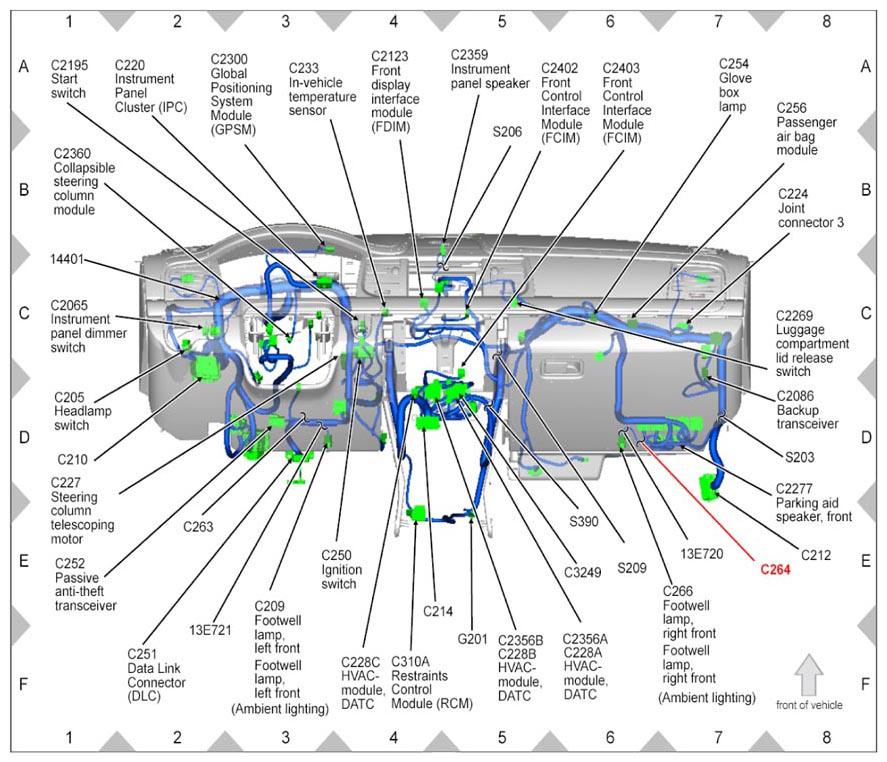

Fig 98: Identifying C264 Connector Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

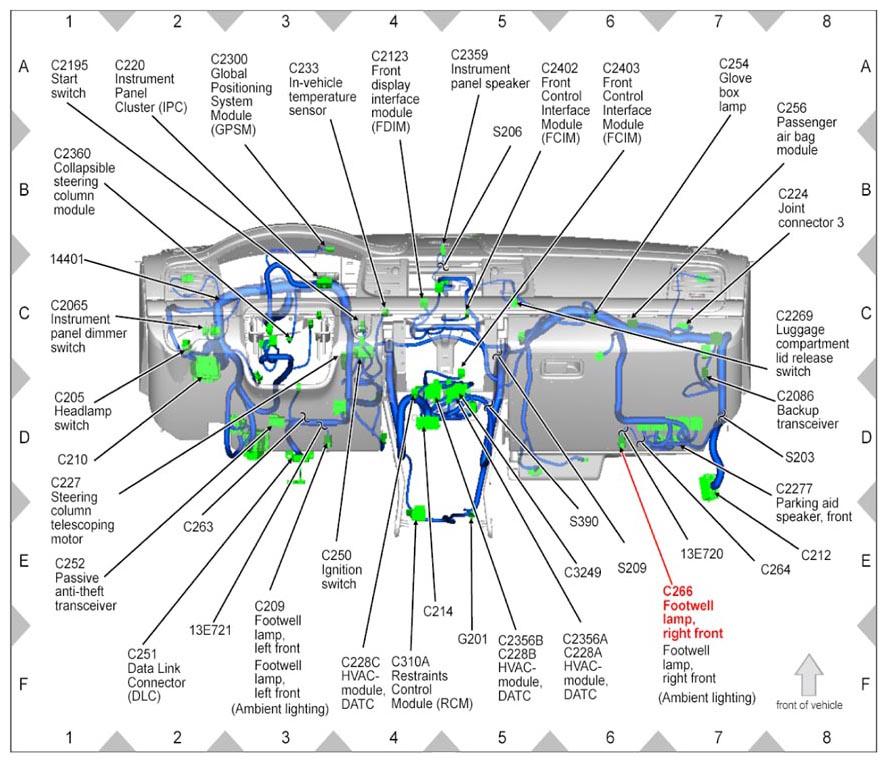

Fig 99: Identifying C266 Footwell Lamp, Right Front Location - Under Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 100: Identifying C267 Steering Column Tilting Motor Location - Steering Column

Courtesy of FORD MOTOR CO.

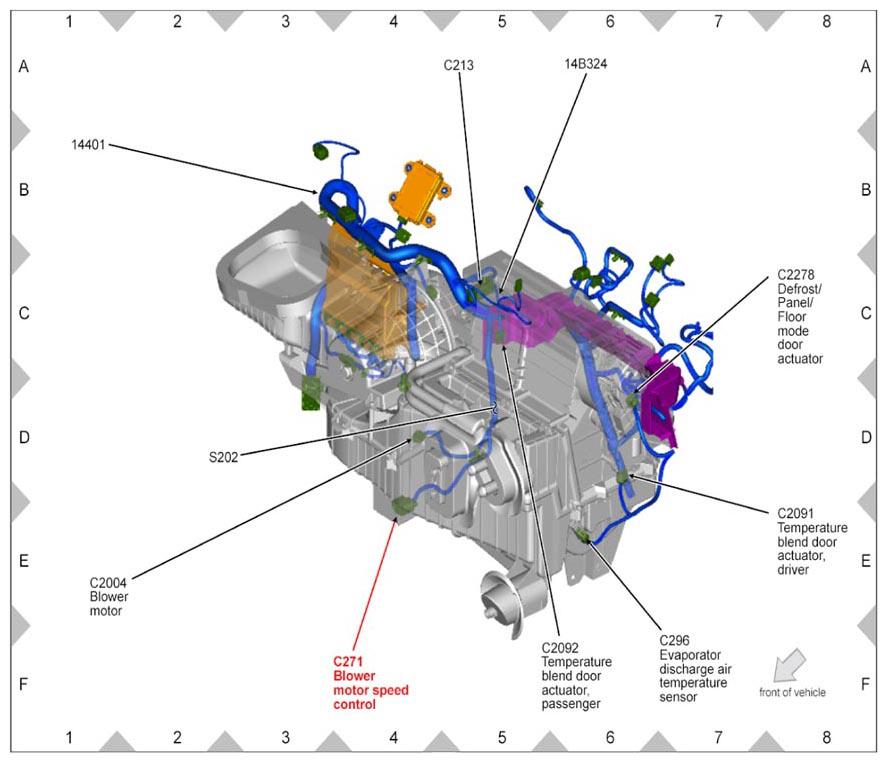

Fig 101: Identifying C271 Blower Motor Speed Control Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

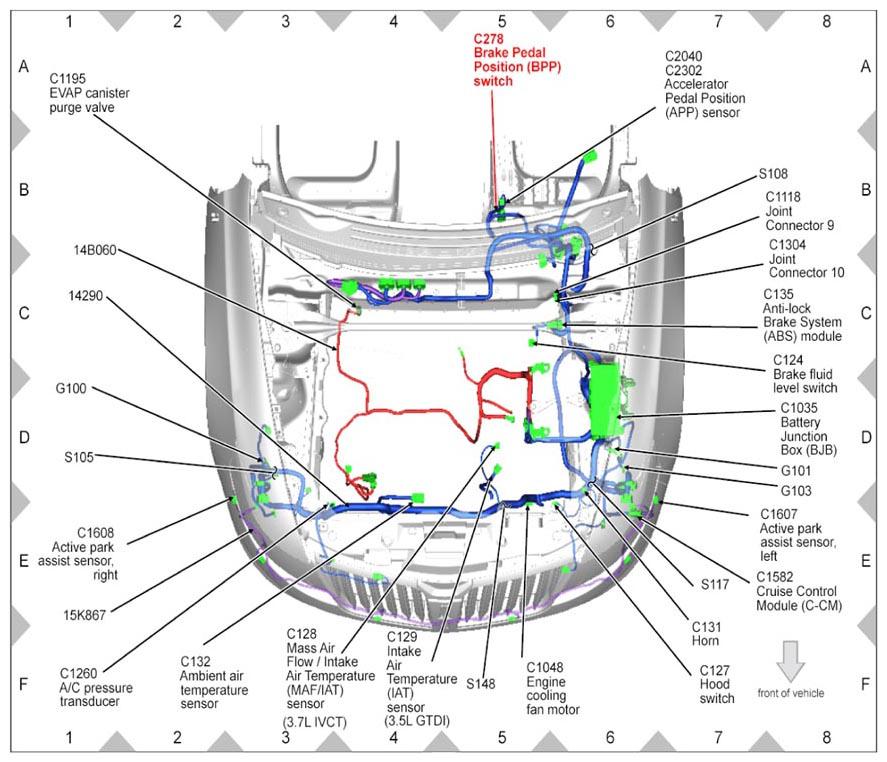

Fig 102: Identifying C278 Brake Pedal Position (BPP) Switch Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

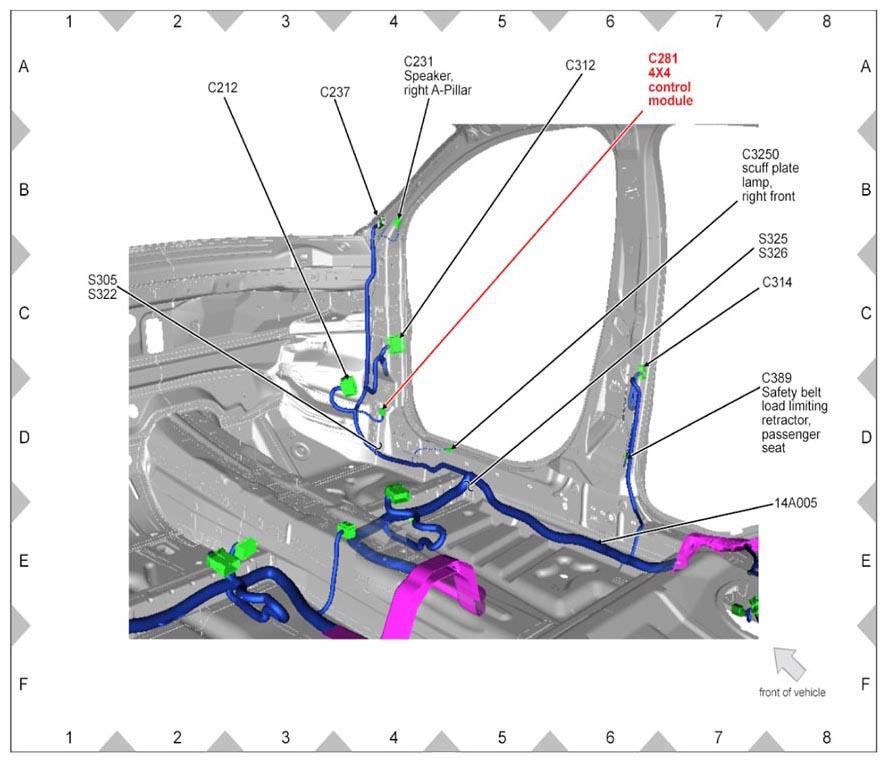

Fig 103: Identifying C281 4x4 Control Module Location - Under Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 104: Identifying C286 Autolamp/Sunload Sensor Location - (Automatic Climate Control) Behind Dash Panel, Top Center

Courtesy of FORD MOTOR CO.

Fig 105: Identifying C289 Air Inlet Mode Door Actuator Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 106: Identifying C296 Evaporator Discharge Air Temperature Sensor Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

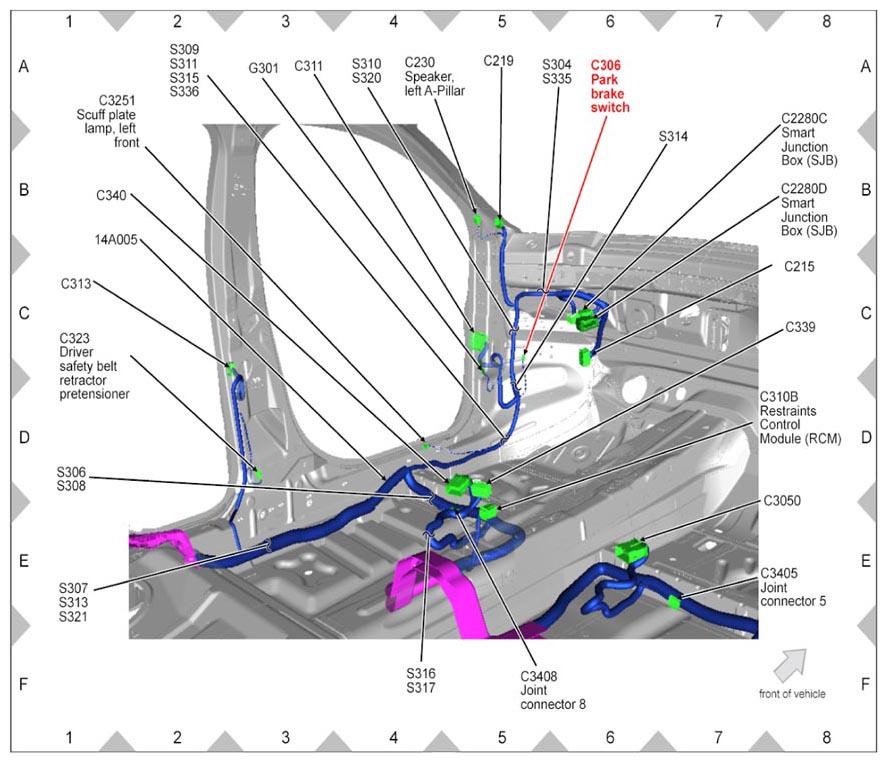

Fig 107: Identifying C306 Park Brake Switch Location - Under Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 108: Identifying C310A Restraints Control Module (RCM) Location - Under Front Of Center Console

Courtesy of FORD MOTOR CO.

Fig 109: Identifying C310B Restraints Control Module (RCM) Location - Under Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 110: Identifying C311 Connector Location - Bottom, LH A-Pillar

Courtesy of FORD MOTOR CO.

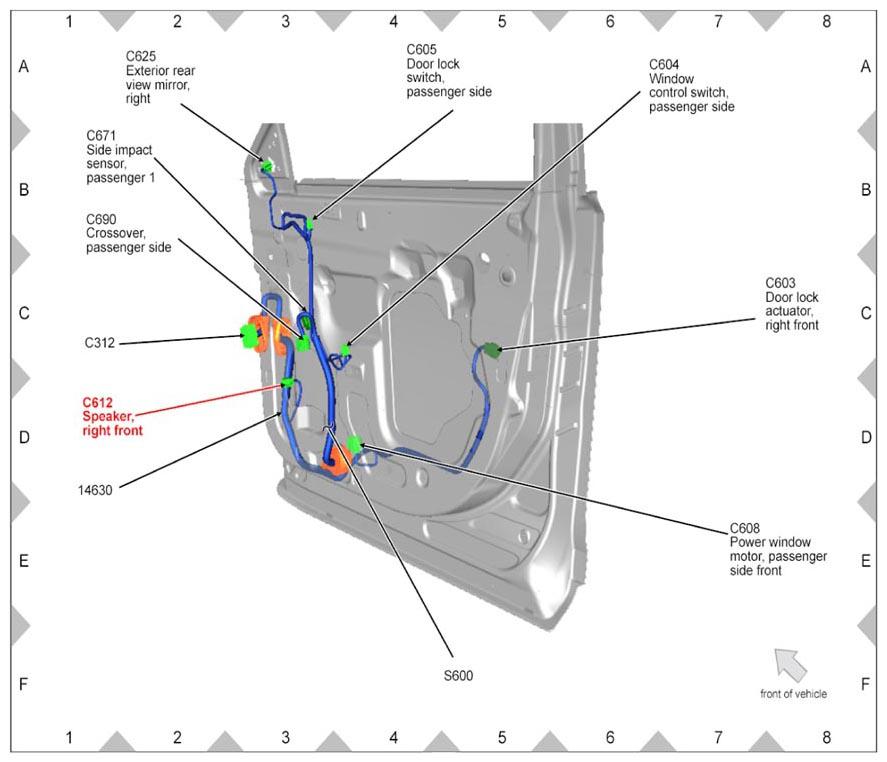

Fig 111: Identifying C312 Connector Location - In Passenger Door, Front

Courtesy of FORD MOTOR CO.

Fig 112: Identifying C313 Connector Location - In Left Rear Door, Front

Courtesy of FORD MOTOR CO.

Fig 113: Identifying C314 Connector Location - In Right Rear Door, Front

Courtesy of FORD MOTOR CO.

Fig 114: Identifying C315 Connector Location - Under Vehicle, Center Right

Courtesy of FORD MOTOR CO.

Fig 115: Identifying C316 Connector Location - Behind Rear Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 116: Identifying C317 Antenna Seat Location - Under Rear Seat, Center

Courtesy of FORD MOTOR CO.

Fig 117: Identifying C319 Cigar Lighter, Front Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

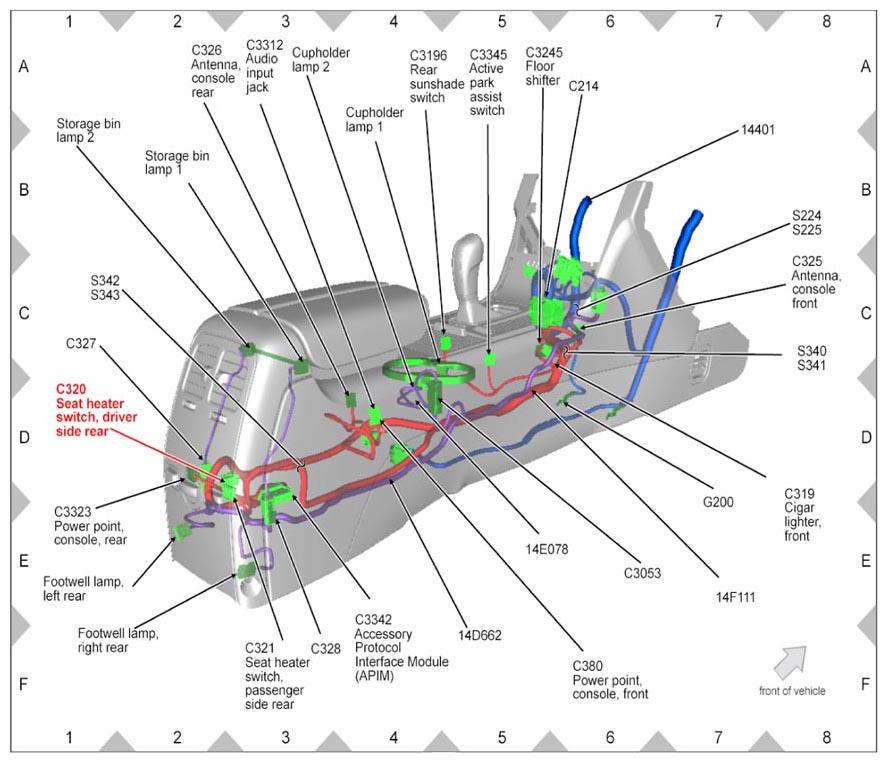

Fig 118: Identifying C320 Seat Heater Switch, Driver Side Rear Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 119: Identifying C321 Seat Heater Switch, Passenger Side Rear Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

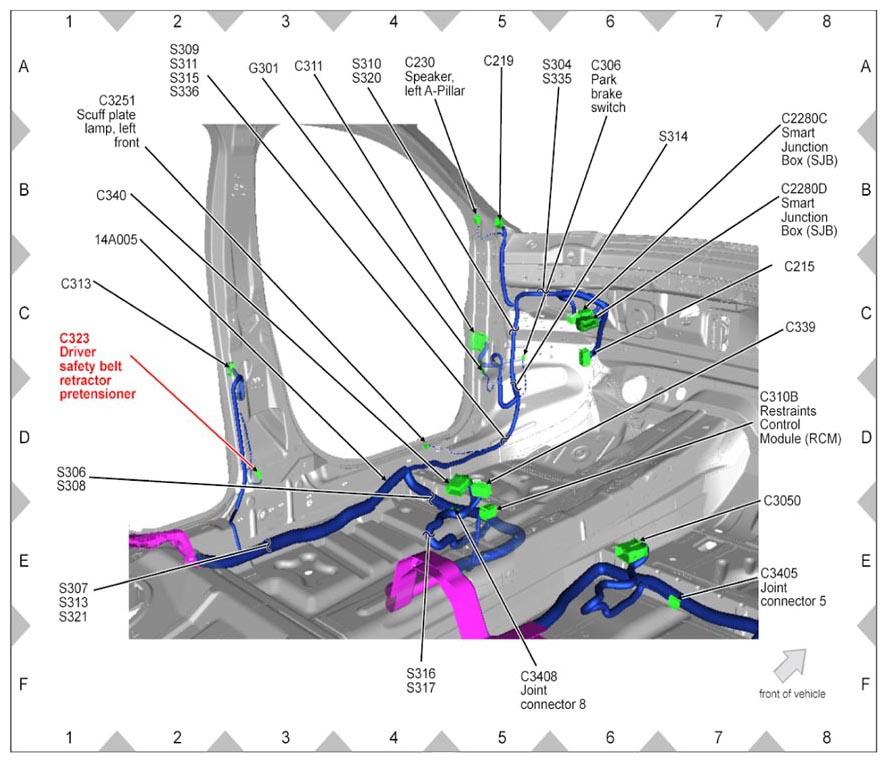

Fig 120: Identifying C323 Driver Safety Belt Retractor Pretensioner Location - Bottom, LH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 121: Identifying C325 Antenna Console Front Location - In Center Console, Front

Courtesy of FORD MOTOR CO.

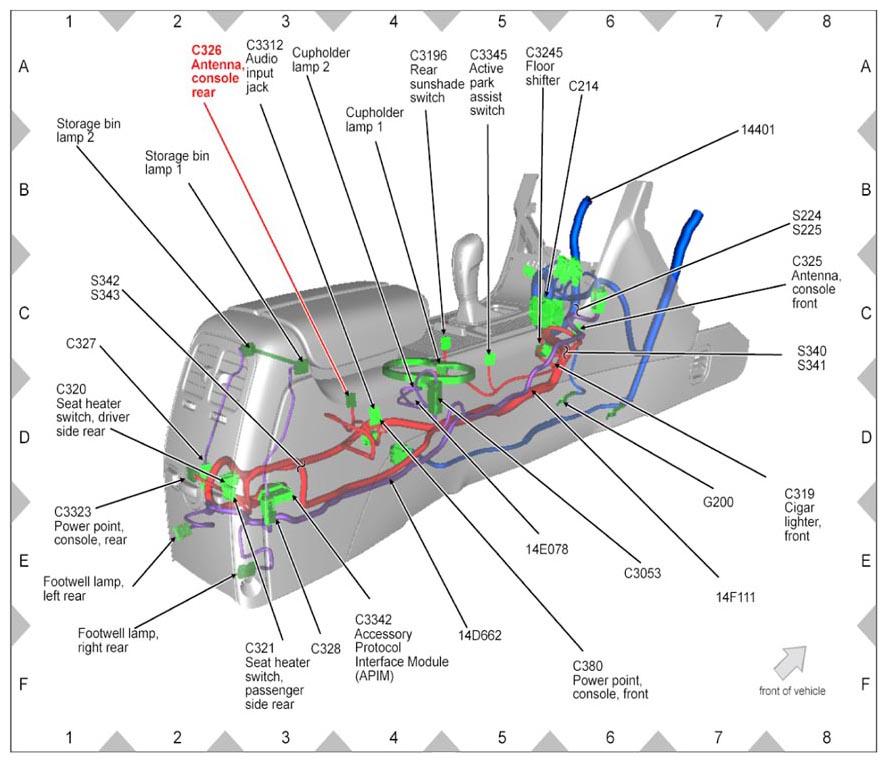

Fig 122: Identifying C326 Antenna Console Rear Location - In Center Console, Front

Courtesy of FORD MOTOR CO.

Fig 123: Identifying C327 Connector Location - In Center Console, Front

Courtesy of FORD MOTOR CO.

Fig 124: Identifying C328 Connector Location - In Center Console, Front

Courtesy of FORD MOTOR CO.

Fig 125: Identifying C332 Passenger Seat Horizontal Motor Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

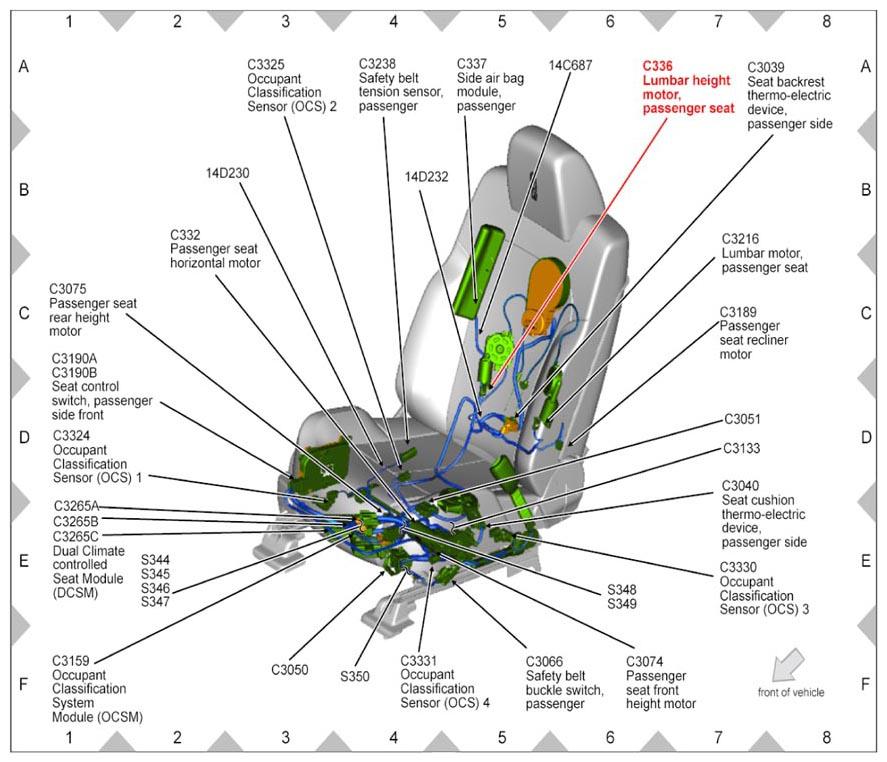

Fig 126: Identifying C336 Lumbar Height Motor, Passenger Seat Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 127: Identifying C337 Side Air Bag Module, Passenger Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 128: Identifying C339 Connector Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 129: Identifying C340 Connector Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 130: Identifying C341A Driver Seat Module (DSM) Location - Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 131: Identifying C341B Connector Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 132: Identifying C341C Connector Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 133: Identifying C341D Connector Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

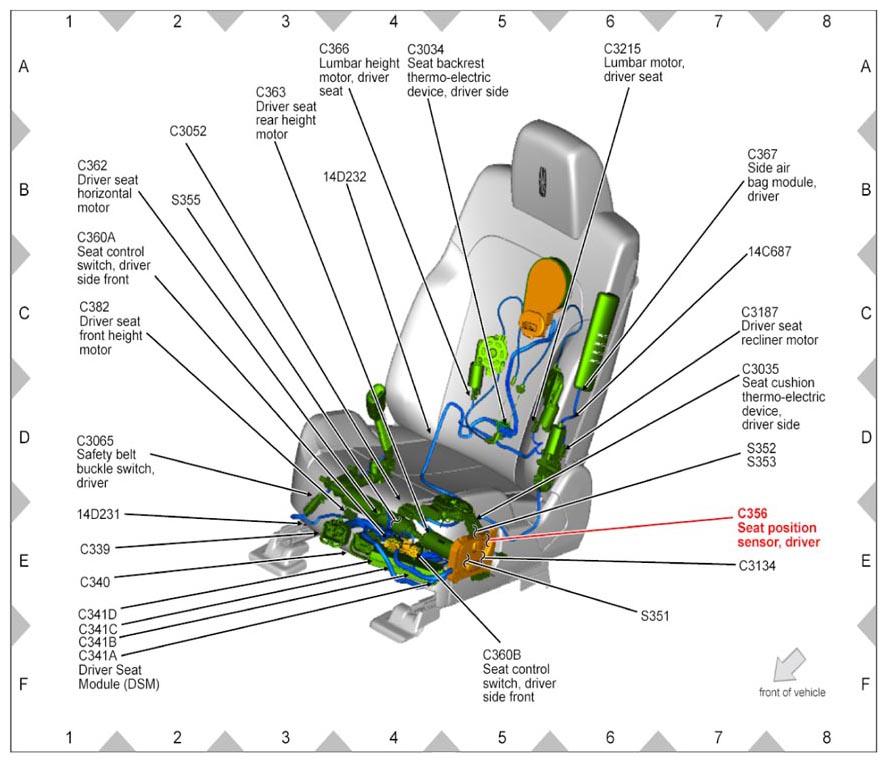

Fig 134: Identifying C356 Seat Position Sensor, Driver Location - Under Driver Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 135: Identifying C360A Seat Control Switch, Driver Side Front Location - (12-Way) Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 136: Identifying C360B Seat Control Switch, Driver Side Front Location - (12-Way) Under Driver Seat, Front

Courtesy of FORD MOTOR CO.

Fig 137: Identifying C362 Driver Seat Horizontal Motor Location - Under Driver Seat, Center

Courtesy of FORD MOTOR CO.

Fig 138: Identifying C363 Driver Seat Rear Height Motor Location - Under Driver Seat

Courtesy of FORD MOTOR CO.

Fig 139: Identifying C364 Connector Location - Under Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 140: Identifying C366 Lumbar Height Motor, Driver Seat Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 141: Identifying C367 Side Air Bag Module, Driver Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

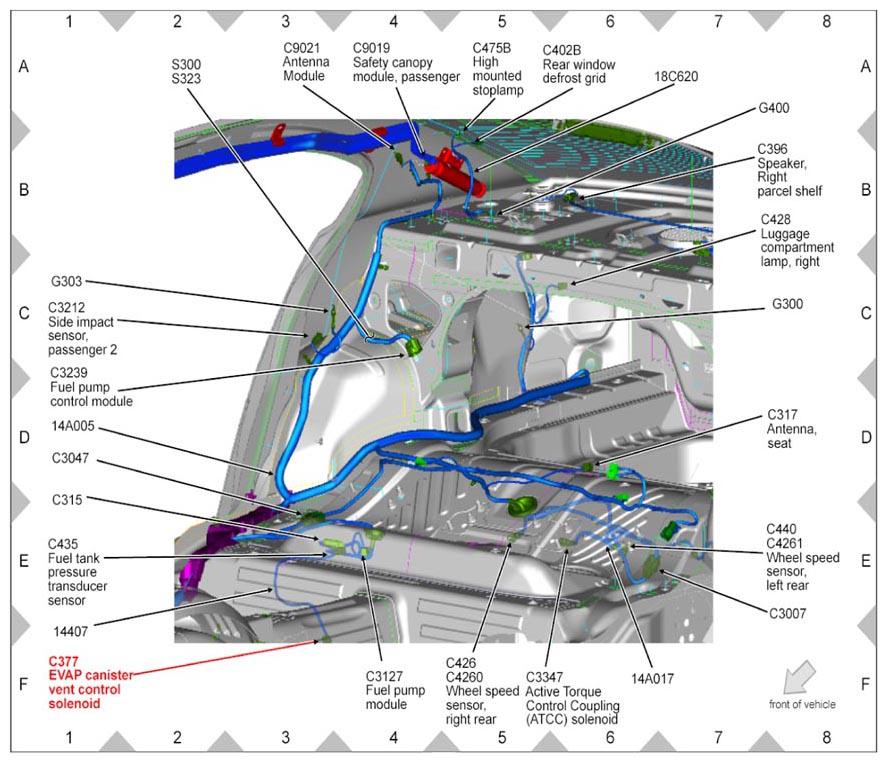

Fig 142: Identifying C377 EVAP Canister Vent Control Solenoid Location - Under Vehicle, Center Right

Courtesy of FORD MOTOR CO.

Fig 143: Identifying C380 Power Point Console, Front Location - Center Console In Storage Bin

Courtesy of FORD MOTOR CO.

Fig 144: Identifying C382 Driver Seat Front Height Motor Location - Under Driver Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 145: Identifying C389 Safety Belt Load Limiting Retractor, Passenger Seat Location - Bottom, RH B-Pillar

Courtesy of FORD MOTOR CO.

Fig 146: Identifying C395 Speaker, Left Parcel Shelf Location - Rear Deck, LH Side

Courtesy of FORD MOTOR CO.

Fig 147: Identifying C396 Speaker, Right Parcel Shelf Location - Rear Deck, RH Side

Courtesy of FORD MOTOR CO.

Fig 148: Identifying C402A Rear Window Defrost Grid Location - LH D-Pillar, Middle

Courtesy of FORD MOTOR CO.

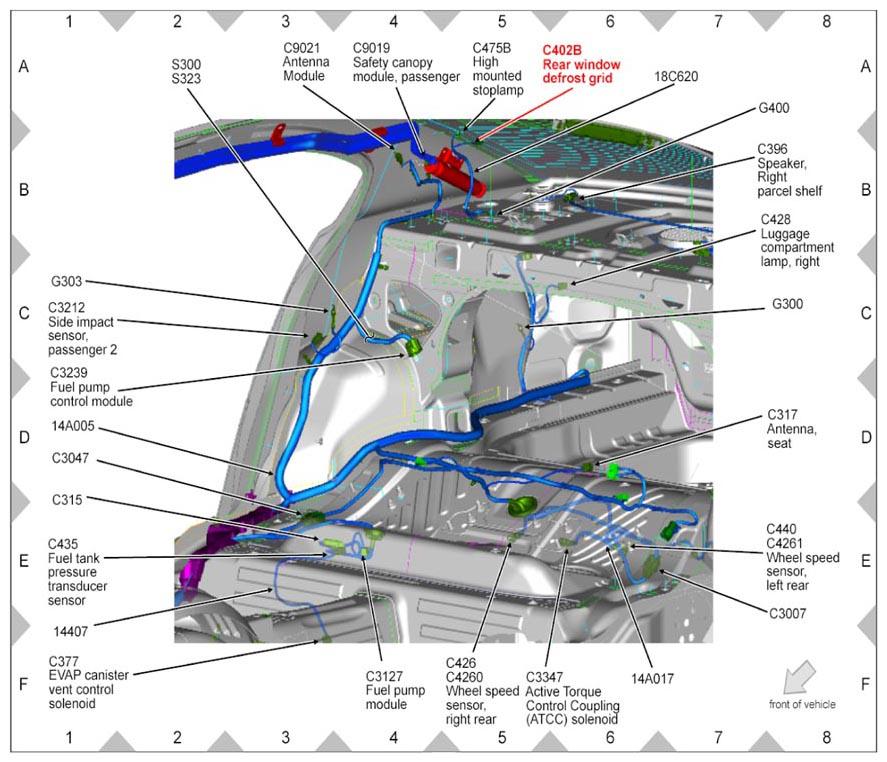

Fig 149: Identifying C402B Rear Window Defrost Grid Location - RH D-Pillar, Top

Courtesy of FORD MOTOR CO.

Fig 150: Identifying C405 Connector Location - Luggage Compartment, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 151: Identifying C406 Connector Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 152: Identifying C414 Lamp Assembly Left Rear Location - Vehicle Rear End, LH Side

Courtesy of FORD MOTOR CO.

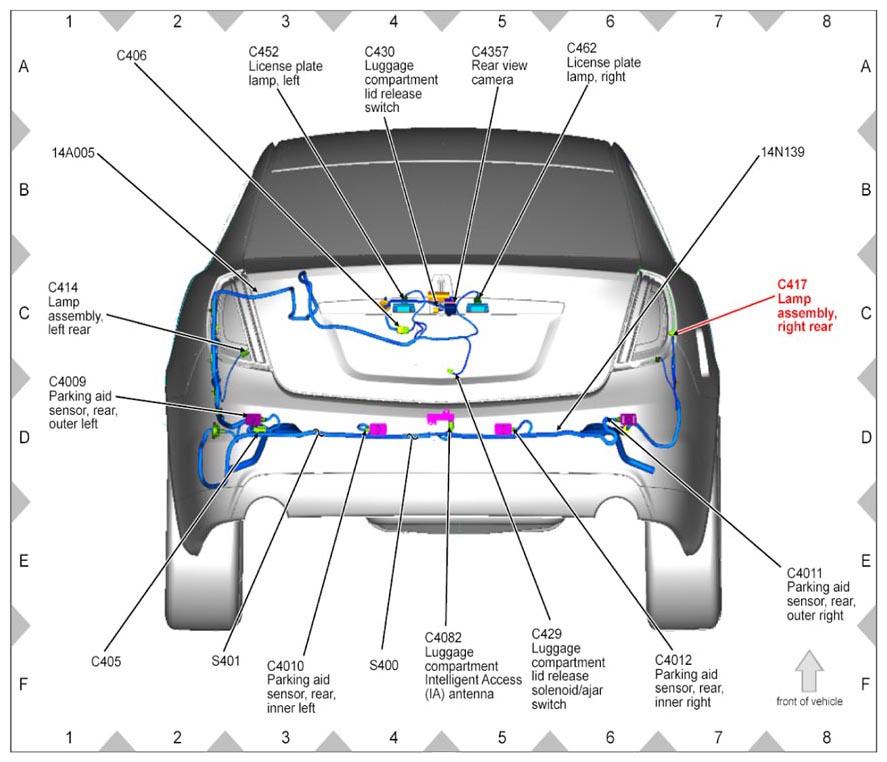

Fig 153: Identifying C417 Lamp Assembly Right Rear Location - Vehicle Rear End, RH Side

Courtesy of FORD MOTOR CO.

Fig 154: Identifying C426 Wheel Speed Sensor, Right Rear Location - Above Rear Axle, Center

Courtesy of FORD MOTOR CO.

Fig 155: Identifying C428 Luggage Compartment Lamp, Right Location - Luggage Compartment, RH Side

Courtesy of FORD MOTOR CO.

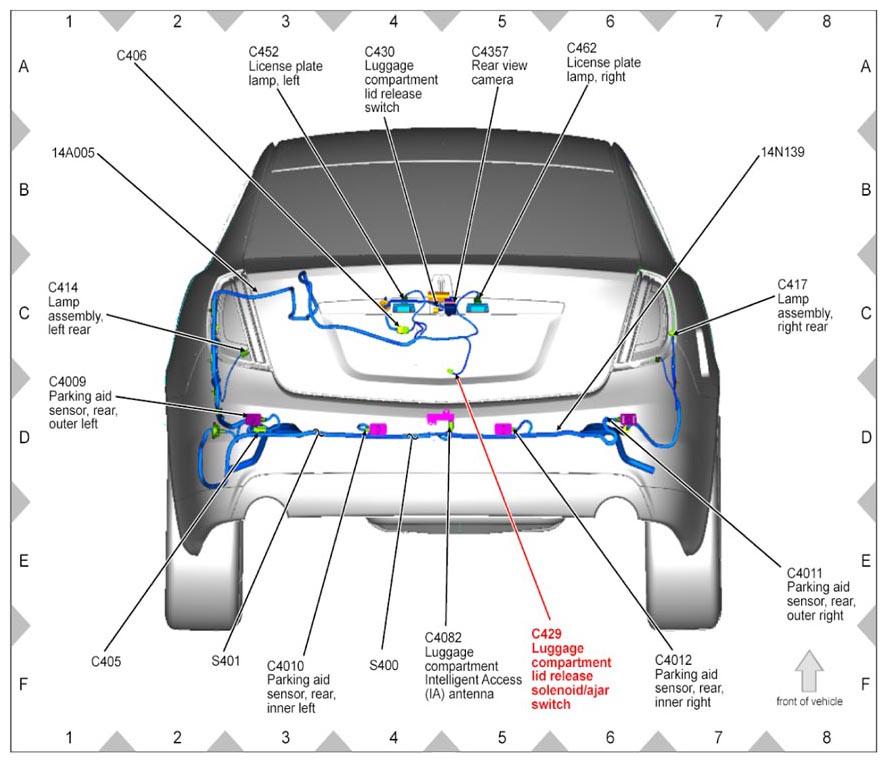

Fig 156: Identifying C429 Luggage Compartment Lid Release Solenoid/Ajar Switch Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 157: Identifying C430 Luggage Compartment Lid Release Switch Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 158: Identifying C435 Fuel Tank Transducer Sensor Location - Under Vehicle, Center Right

Courtesy of FORD MOTOR CO.

Fig 159: Identifying C440 Wheel Speed Sensor, Left Rear Location - Above Rear Axle, Center

Courtesy of FORD MOTOR CO.

Fig 160: Identifying C452 License Plate Lamp, Left Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

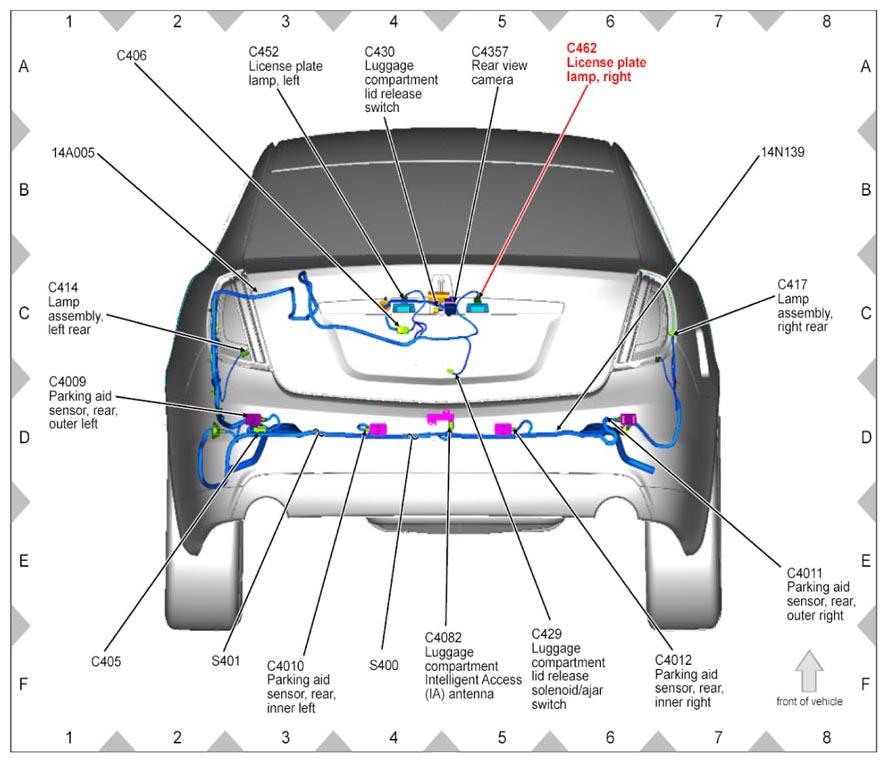

Fig 161: Identifying C462 License Plate Lamp, Right Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

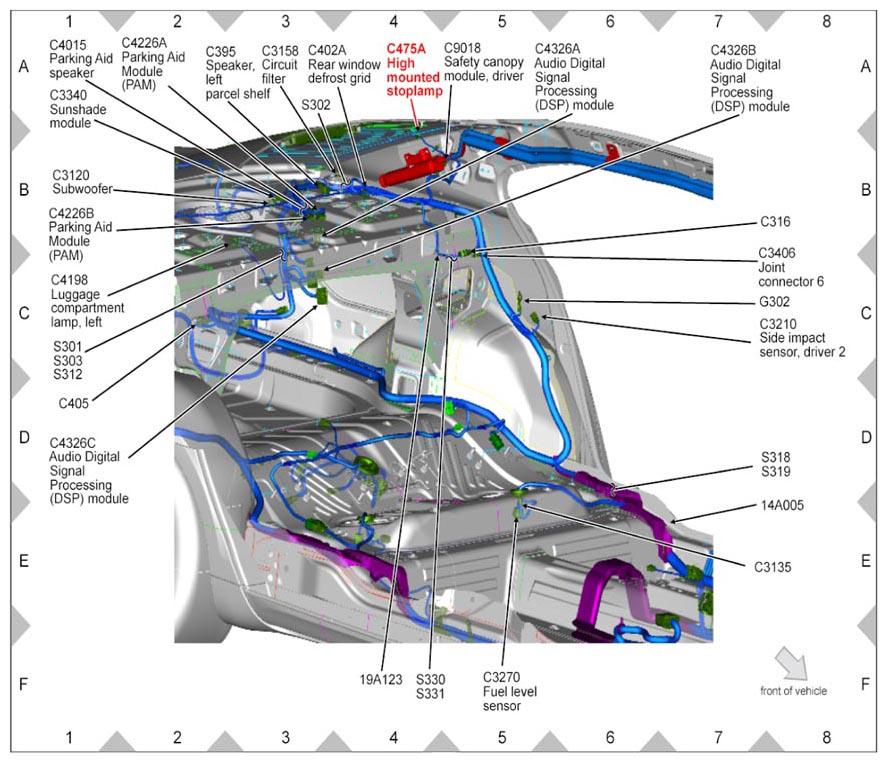

Fig 162: Identifying C475A High Mounted Stoplamp Location - LH D-Pillar, Top

Courtesy of FORD MOTOR CO.

Fig 163: Identifying C475B High Mounted Stoplamp Location - RH D-Pillar, Top

Courtesy of FORD MOTOR CO.

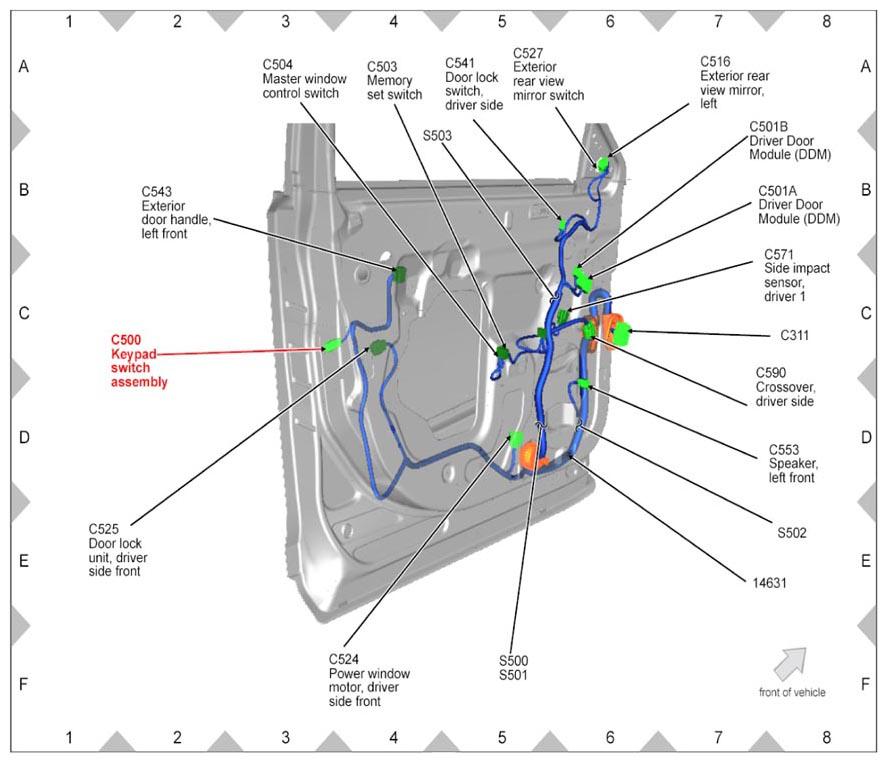

Fig 164: Identifying C500 Keypad Switch Assembly Location - In Driver Door, Rear

Courtesy of FORD MOTOR CO.

Fig 165: Identifying C501A Driver Door Module (DDM) Location - In Driver Door, Front

Courtesy of FORD MOTOR CO.

Fig 166: Identifying C501B Driver Door Module (DDM) Location - In Driver Door, Front

Courtesy of FORD MOTOR CO.

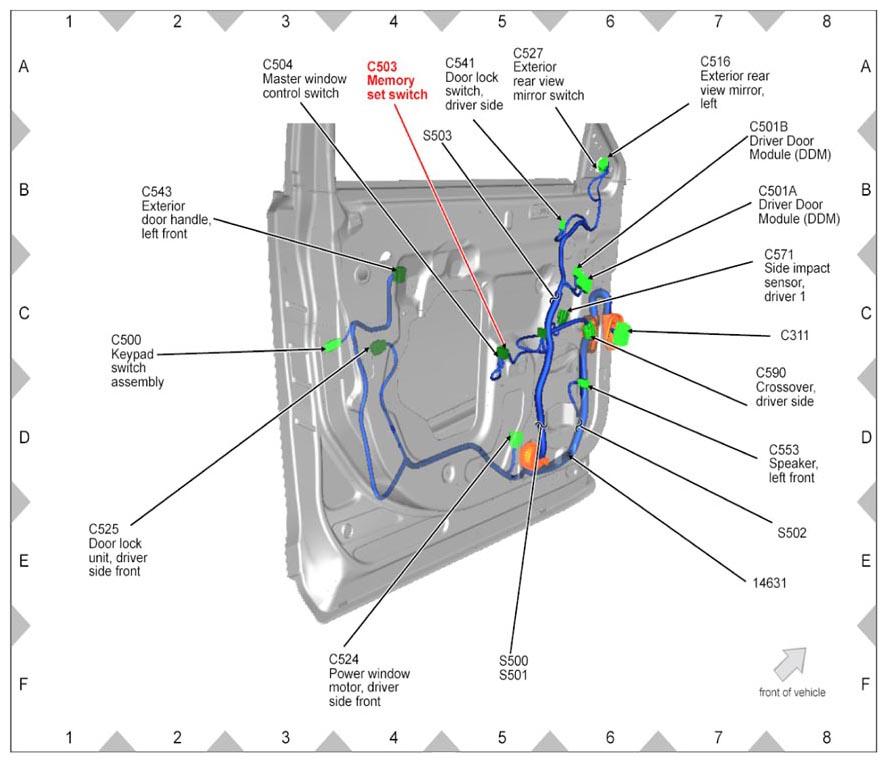

Fig 167: Identifying C503 Memory Set Switch Location - In Driver Door, Middle

Courtesy of FORD MOTOR CO.

Fig 168: Identifying C504 Master Window Control Switch Location - In Driver Door, Middle

Courtesy of FORD MOTOR CO.

Fig 169: Identifying C516 Exterior Rear View Mirror, Left Location - In Driver Door, Top Front

Courtesy of FORD MOTOR CO.

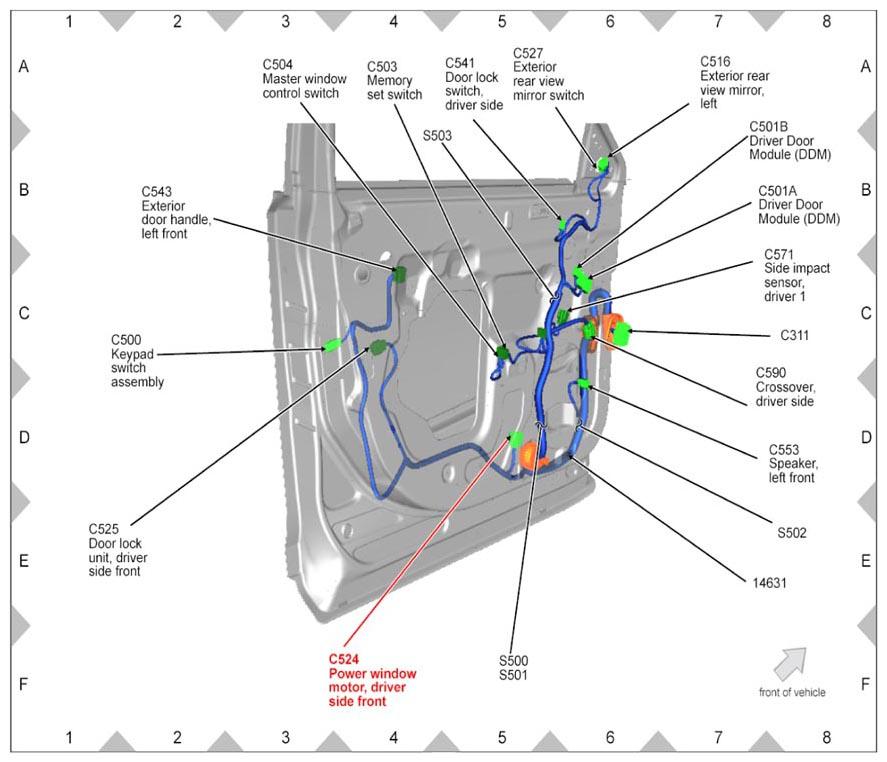

Fig 170: Identifying C524 Power Window Motor, Driver Side Front Location - In Driver Door, Bottom

Courtesy of FORD MOTOR CO.

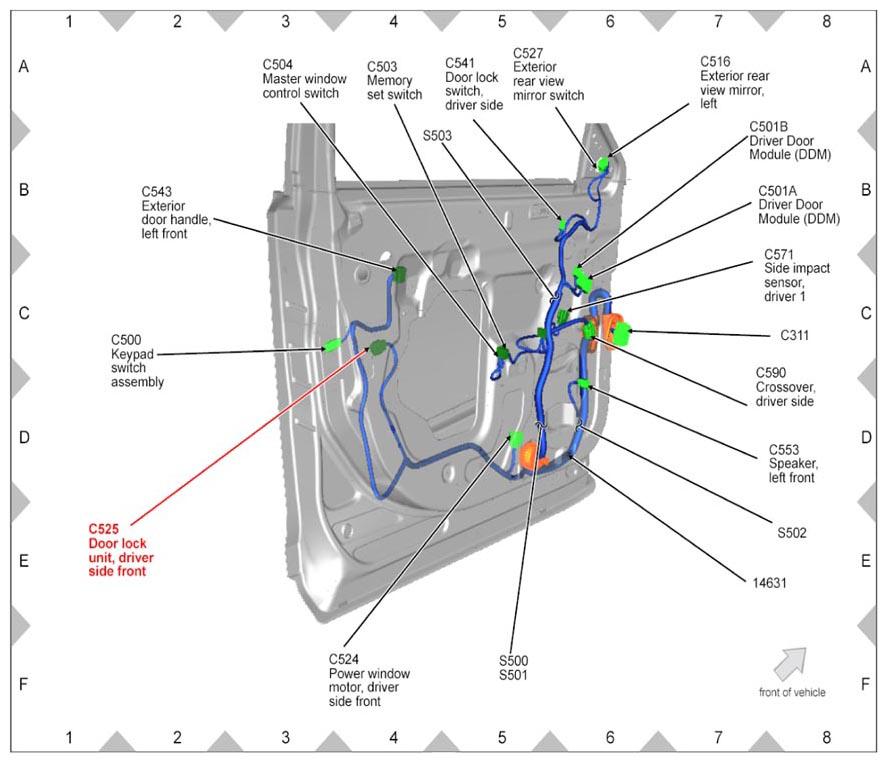

Fig 171: Identifying C525 Door Lock Unit, Driver Side Front Location - In Driver Door, Rear

Courtesy of FORD MOTOR CO.

Fig 172: Identifying C527 Exterior Rear View Mirror Switch Location - In Driver Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 173: Identifying C541 Door Lock Switch, Driver Side Location - In Driver Door, Top Front

Courtesy of FORD MOTOR CO.

Fig 174: Identifying C543 Exterior Door Handle, Left Front Location - In Driver Door, Rear Top

Courtesy of FORD MOTOR CO.

Fig 175: Identifying C553 Speaker, Left Front Location - In Driver Door, Front Bottom

Courtesy of FORD MOTOR CO.

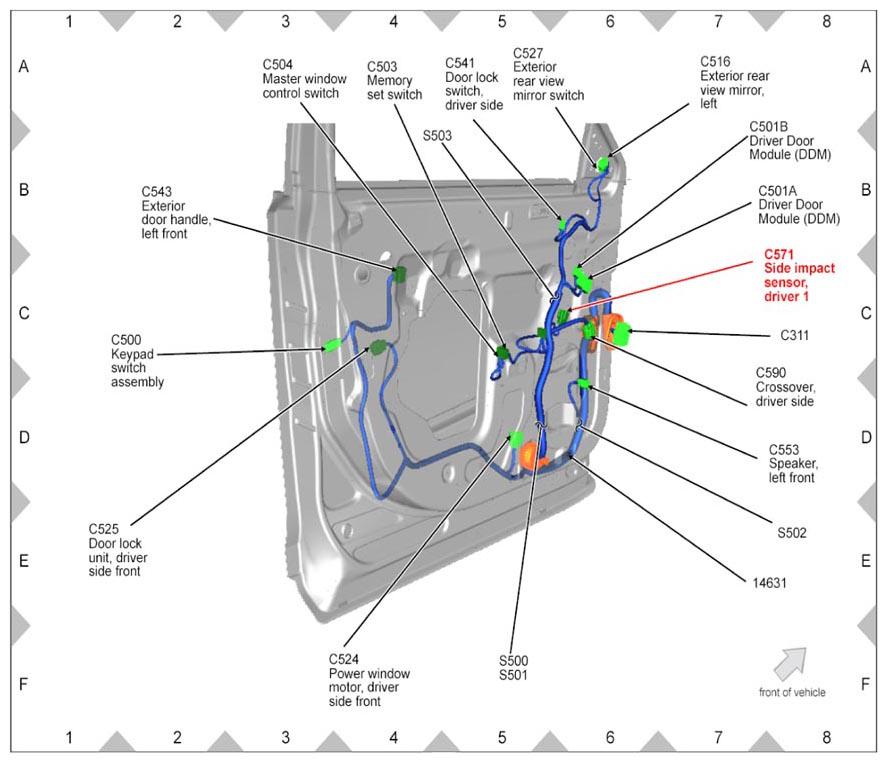

Fig 176: Identifying C571 Side Impact Sensor Driver 1 Location - In Driver Door, Front

Courtesy of FORD MOTOR CO.

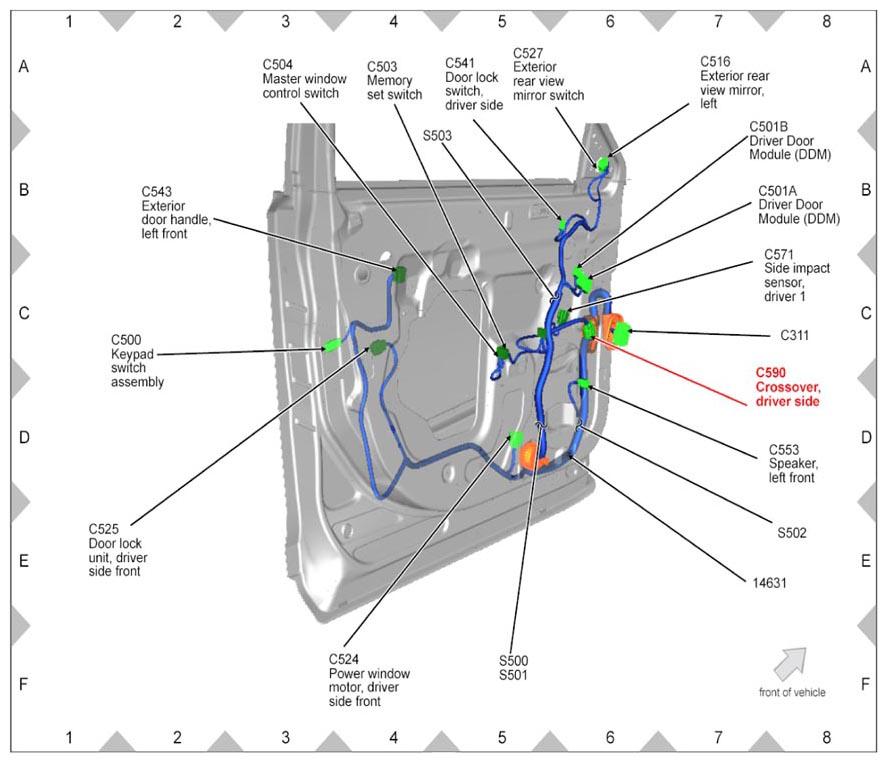

Fig 177: Identifying C590 Crossover, Driver Side Location - In Driver Door, Front

Courtesy of FORD MOTOR CO.

Fig 178: Identifying C603 Door Lock Actuator, Right Front Location - In Passenger Door, Rear

Courtesy of FORD MOTOR CO.

Fig 179: Identifying C604 Window Control Switch, Passenger Side Location - In Passenger Door, Middle

Courtesy of FORD MOTOR CO.

Fig 180: Identifying C605 Door Lock Switch, Passenger Side Location - In Passenger Door, Top

Courtesy of FORD MOTOR CO.

Fig 181: Identifying C608 Power Window Motor, Passenger Side Front Location - In Passenger Door, Bottom

Courtesy of FORD MOTOR CO.

Fig 182: Identifying C612 Speaker, Right Front Location - In Passenger Door, Front Bottom

Courtesy of FORD MOTOR CO.

Fig 183: Identifying C625 Exterior Rear View Mirror, Right Location - In Passenger Door, Top

Courtesy of FORD MOTOR CO.

Fig 184: Identifying C671 Side Impact Sensor Driver 1 Location - In Passenger Door, Middle

Courtesy of FORD MOTOR CO.

Fig 185: Identifying C690 Crossover, Passenger Side Location - In Passenger Door, Middle

Courtesy of FORD MOTOR CO.

Fig 186: Identifying C701 Window Control Switch, Left Rear Location - In Left Rear Door, Middle

Courtesy of FORD MOTOR CO.

Fig 187: Identifying C703 Power Window Motor, Left Rear Location - In Left Rear Door, Middle

Courtesy of FORD MOTOR CO.

Fig 188: Identifying C704 Door Lock Actuator, Left Rear Location - In Left Rear Door, Rear Top

Courtesy of FORD MOTOR CO.

Fig 189: Identifying C712A Speaker, Left Rear Location - In Left Rear Door, Front Bottom

Courtesy of FORD MOTOR CO.

Fig 190: Identifying C712B Speaker, Left Rear Location - In Left Rear Door, Front Bottom

Courtesy of FORD MOTOR CO.

Fig 191: Identifying C730 Tweeter, Left Rear Location - In Left Rear Door, Front Top

Courtesy of FORD MOTOR CO.

Fig 192: Identifying C801 Window Control Switch, Right Rear Location - In Right Rear Door, Middle

Courtesy of FORD MOTOR CO.

Fig 193: Identifying C803 Power Window Motor, Right Rear Location - In Right Rear Door, Middle

Courtesy of FORD MOTOR CO.

Fig 194: Identifying C804 Door Lock Actuator, Right Rear Location - In Right Rear Door, Rear Top

Courtesy of FORD MOTOR CO.

Fig 195: Identifying C813A Speaker, Right Rear Location - In Right Rear Door, Front Bottom

Courtesy of FORD MOTOR CO.

Fig 196: Identifying C813B Speaker, Right Rear Location - In Right Rear Door, Front Bottom

Courtesy of FORD MOTOR CO.

Fig 197: Identifying C830 Tweeter, Right Rear Location - In Right Rear Door, Front Top

Courtesy of FORD MOTOR CO.

Fig 198: Identifying C906 Vanity Mirror Lamp, Right Location - In Roof Panel, Right Front

Courtesy of FORD MOTOR CO.

Fig 199: Identifying C907 Vanity Mirror Lamp, Left Location - In Roof Panel, Left Front

Courtesy of FORD MOTOR CO.

Fig 200: Identifying C911 Connector Location - (Early Production) In Roof Panel, Front Center

Courtesy of FORD MOTOR CO.

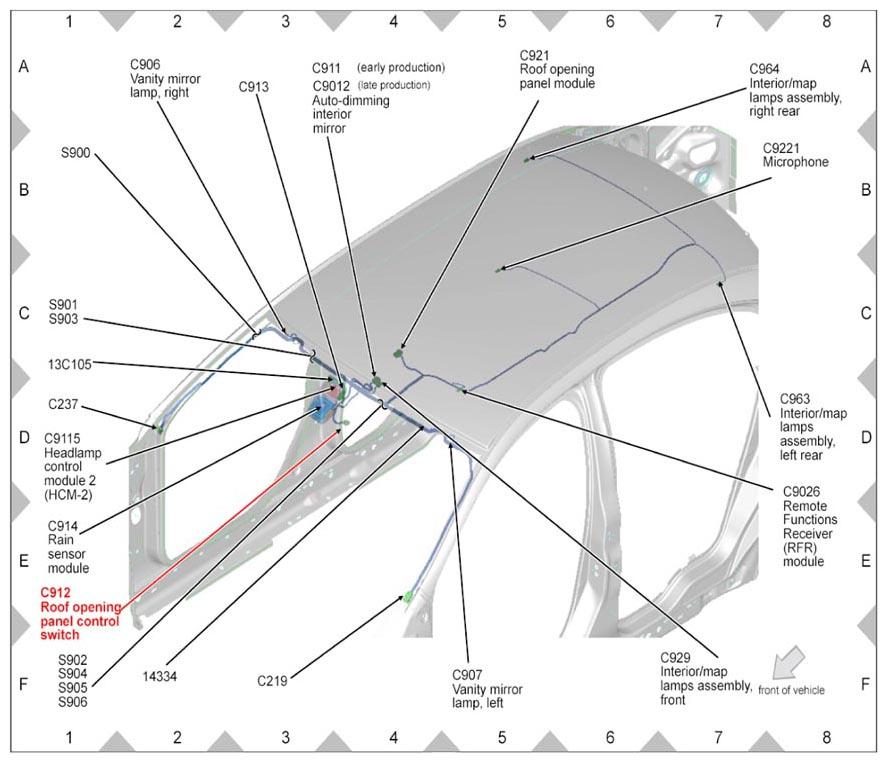

Fig 201: Identifying C912 Roof Opening Panel Control Switch Location - In Roof Panel, Front Center

Courtesy of FORD MOTOR CO.

Fig 202: Identifying C913 Connector Location - Roof, Front Center

Courtesy of FORD MOTOR CO.

Fig 203: Identifying C914 Rain Sensor Module Location - Roof, Front Center

Courtesy of FORD MOTOR CO.

Fig 204: Identifying C921 Roof Opening Panel Module Location - In Roof Panel, Front Center

Courtesy of FORD MOTOR CO.

Fig 205: Identifying C929 Interior/Map Lamps Assembly Front Location - In Roof Panel, Front Center

Courtesy of FORD MOTOR CO.

Fig 206: Identifying C963 Interior/map Lamps Assembly Left Rear Location - In Roof Panel, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 207: Identifying C964 Interior/Map Lamps Assembly Right Rear Location - In Roof Panel, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 208: Identifying C1010 Connector Location - (3.5L GTDI) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 209: Identifying C1019 Connector Location - (3.5L GTDI) Engine, Rear LH Side

Courtesy of FORD MOTOR CO.

Fig 210: Identifying C1021 Headlamp, Left Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 211: Identifying C1023 Park/Turn Lamp, Left Front Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 212: Identifying C1029 EVAP Canister Purge Valve Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

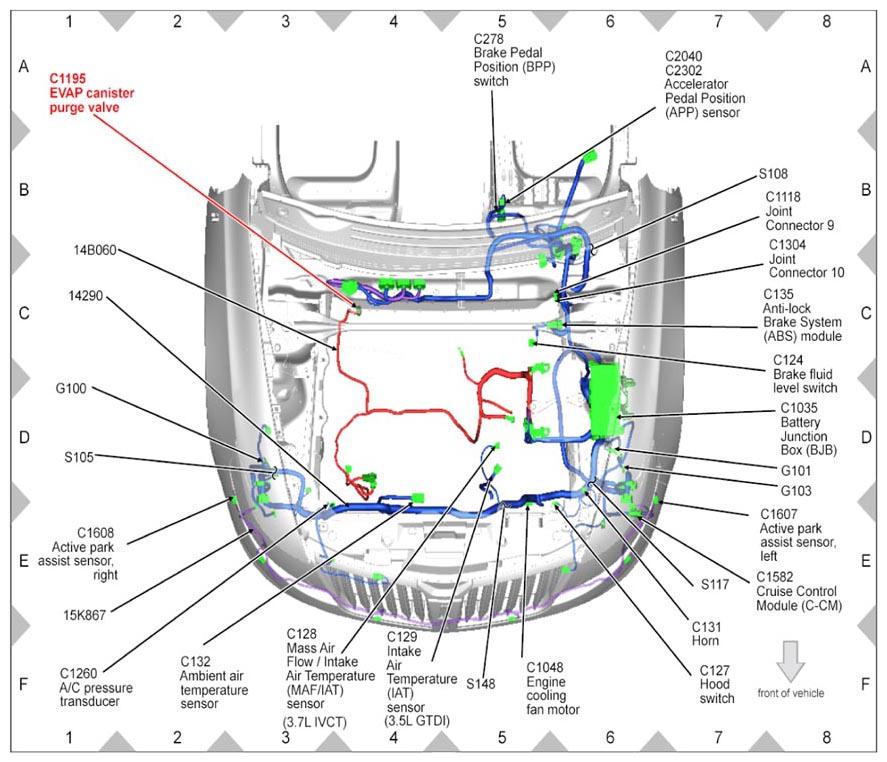

Fig 213: Identifying C1035 Battery Junction Box (BJB) Location - Engine Compartment, On Left Front Fender

Courtesy of FORD MOTOR CO.

Fig 214: Identifying C1041 Headlamp, Right Location - Engine Compartment, RH Side Front

Courtesy of FORD MOTOR CO.

Fig 215: Identifying C1043 Park/Turn Lamp, Right Front Location - Engine Compartment, RH Side Front

Courtesy of FORD MOTOR CO.

Fig 216: Identifying C1045 Connector Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 217: Identifying C1046 Connector Location - (3.5L GTDI) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 218: Identifying C1048 Engine Cooling Fan Motor Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 219: Identifying C1087 Manifold Absolute Pressure/Intake Air Temperature 2 (MAP/IAT2) Sensor Location - (3.5L GTDI) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

Fig 220: Identifying C1100A Battery Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 221: Identifying C1100B Battery Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 222: Identifying C1100C Battery Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 223: Identifying C1100D Battery Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 224: Identifying C1100E Battery Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 225: Identifying C1117 Joint Connector 1 Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 226: Identifying C1118 Joint Connector 9 Location - Near T/O To C124

Courtesy of FORD MOTOR CO.

Fig 227: Identifying C1140 Turbocharger Boost Pressure/Charge Air Cooler Temperature (TCBP/CACT) Sensor Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 228: Identifying C1164 Cylinder Head Temperature (CHT) Sensor Location - Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 229: Identifying C1181 Fuel Injector 1 Location - (3.5L GTDI) Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 230: Identifying C1182 Fuel Injector 2 Location - (3.5L GTDI) Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 231: Identifying C1183 Fuel Injector 3 Location - (3.5L GTDI) Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 232: Identifying C1184 Fuel Injector 4 Location - (3.5L GTDI) Under Intake Manifold

Courtesy of FORD MOTOR CO.

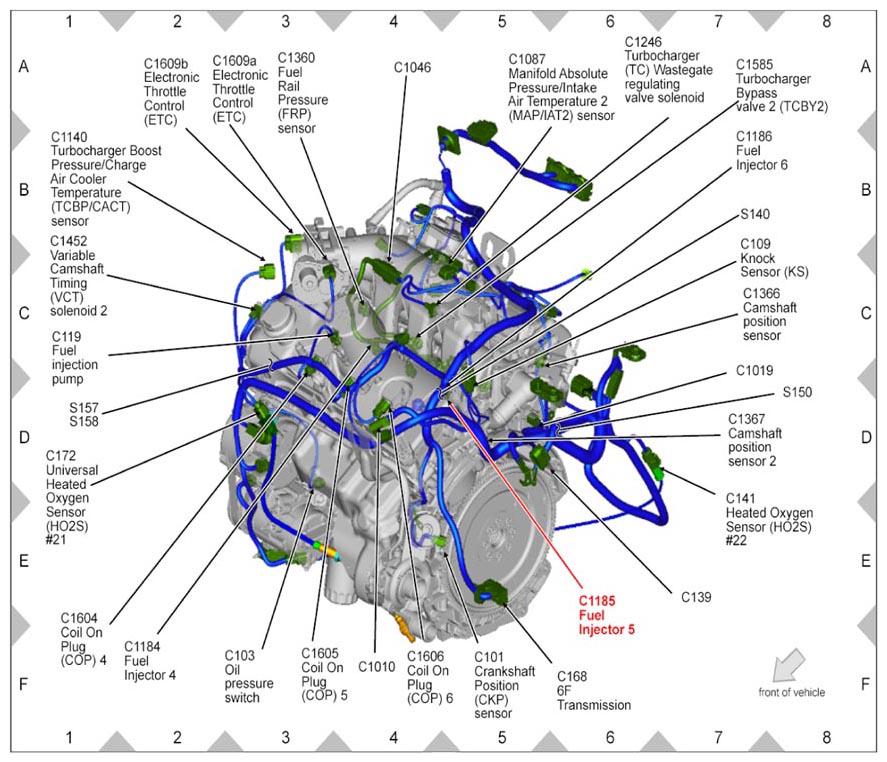

Fig 233: Identifying C1185 Fuel Injector 5 Location - (3.5L GTDI) Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 234: Identifying C1186 Fuel Injector 6 Location - (3.5L GTDI) Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 235: Identifying C1195 EVAP Canister Purge Valve Location - Engine Compartment, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 236: Identifying C1246 Turbocharger (TC) Wastegate Regulating Valve Solenoid Location - (3.5L GTDI) Engine Compartment, LH Side, Front

Courtesy of FORD MOTOR CO.

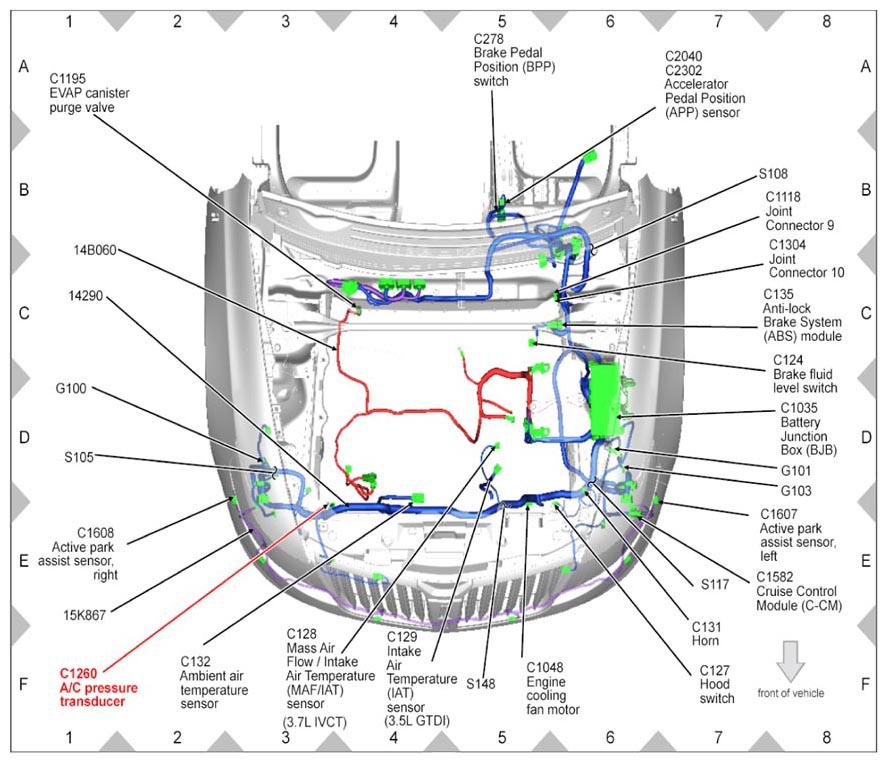

Fig 237: Identifying C1260 A/C Pressure Transducer Location - Engine Compartment, RH Side Front

Courtesy of FORD MOTOR CO.

Fig 238: Identifying C1304 Joint Connector 10 Location - Near T/O To C124

Courtesy of FORD MOTOR CO.

Fig 239: Identifying C1315 Wheel Speed Sensor, Left Front Location - Engine Compartment, Near LH Side Wheel Well

Courtesy of FORD MOTOR CO.

Fig 240: Identifying C1316 Wheel Speed Sensor, Right Front Location - Engine Compartment, Near RH Side Wheel Well

Courtesy of FORD MOTOR CO.

Fig 241: Identifying C1360 Fuel Rail Pressure (FRP) Sensor Location - (3.5L GTDI) Under Intake Manifold

Courtesy of FORD MOTOR CO.

Fig 242: Identifying C1366 Camshaft Position Sensor Location - Engine, Top Rear

Courtesy of FORD MOTOR CO.

Fig 243: Identifying C1366 Camshaft Position Sensor Location - (3.5L GTDI) Engine, Rear LH Side

Courtesy of FORD MOTOR CO.

Fig 244: Identifying C1367 Camshaft Position Sensor 2 Location - Engine, Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 245: Identifying C1367 Camshaft Position Sensor 2 Location - (3.5L GTDI) Engine, Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 246: Identifying C1368 Electronic Throttle Control (ETC) Location - Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 247: Identifying C1381B Powertrain Control Module (PCM) Location - Engine Compartment, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 248: Identifying C1381E Powertrain Control Module (PCM) Location - Engine Compartment, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 249: Identifying C1381E Powertrain Control Module (PCM) Location - (3.5L GTDI) Rear Of Engine Compartment, LH

Courtesy of FORD MOTOR CO.

Fig 250: Identifying C1381T Powertrain Control Module (PCM) Location - Engine Compartment, RH Side Rear

Courtesy of FORD MOTOR CO.

Fig 251: Identifying C1381T Powertrain Control Module (PCM) Location - (3.5L GTDI) Rear Of Engine Compartment, LH

Courtesy of FORD MOTOR CO.

Fig 252: Identifying C1428 Parking Aid Sensor, Front, Outer Left Location - Front Bumper, LH Side

Courtesy of FORD MOTOR CO.

Fig 253: Identifying C1429 Parking Aid Sensor, Front, Inner Left Location - Front Bumper, LH Side Center

Courtesy of FORD MOTOR CO.

Fig 254: Identifying C1430 Parking Aid Sensor, Front, Inner Right Location - Front Bumper, RH Side Center

Courtesy of FORD MOTOR CO.

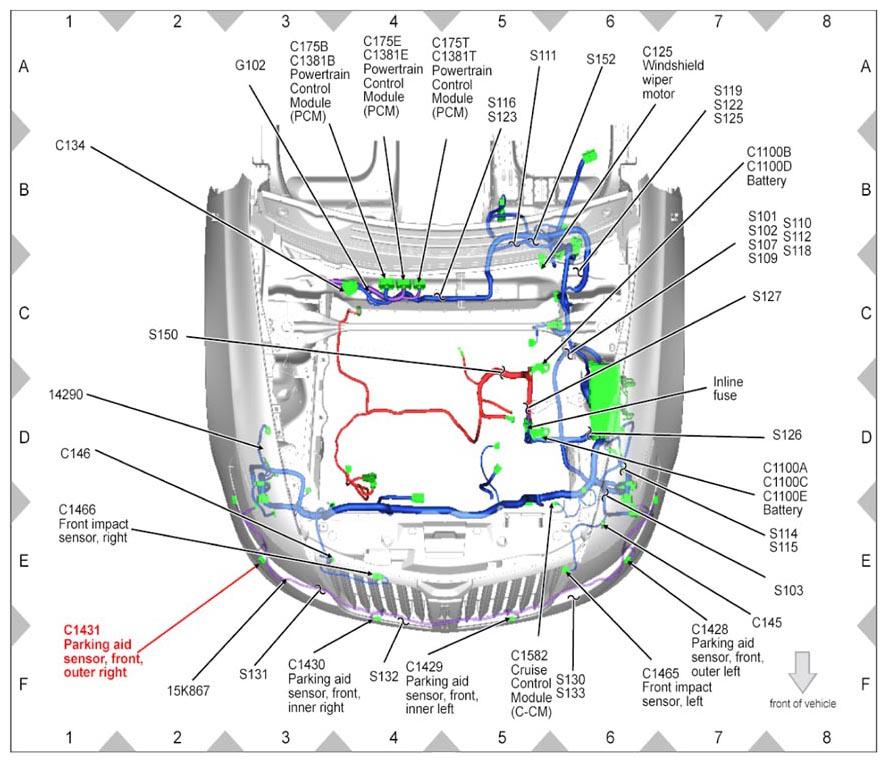

Fig 255: Identifying C1431 Parking Aid Sensor, Front, Outer Right Location - Front Bumper, RH Side

Courtesy of FORD MOTOR CO.

Fig 256: Identifying C1451 Variable Camshaft Timing (VCT) Solenoid 1 Location - Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 257: Identifying C1451 Variable Camshaft Timing (VCT) Solenoid 1 Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 258: Identifying C1452 Variable Camshaft Timing (VCT) Solenoid 2 Location - Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 259: Identifying C1452 Variable Camshaft Timing (VCT) Solenoid 2 Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 260: Identifying C1463A Power Steering Control Module (PSCM) Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 261: Identifying C1463B Power Steering Control Module (PSCM) Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 262: Identifying C1465 Front Impact Sensor, Left Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 263: Identifying C1466 Front Impact Sensor, Right Location - Engine Compartment, RH Side Front

Courtesy of FORD MOTOR CO.

Fig 264: Identifying C1569 Heated Oxygen Sensor (HO2S) #22 Location - Engine, LH Side On Exhaust System

Courtesy of FORD MOTOR CO.

Fig 265: Identifying C1570 Heated Oxygen Sensor (HO2S) #12 Location - Engine, Front RH Side On Exhaust System

Courtesy of FORD MOTOR CO.

Fig 266: Identifying C1582 Cruise Control Module (C-CM) Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 267: Identifying C1584 Turbocharger Bypass Valve Location - (3.5L GTDI) Rear Of Engine Compartment, LH Side

Courtesy of FORD MOTOR CO.

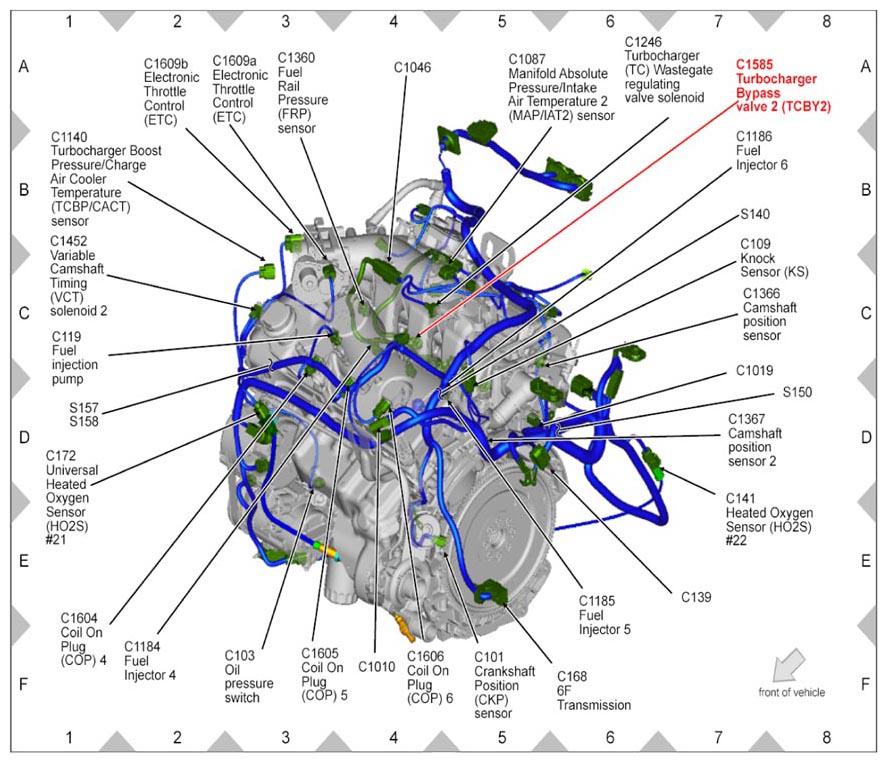

Fig 268: Identifying C1585 Turbocharger Bypass Valve 2 (TCBY2) Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 269: Identifying C1590 Heated Positive Crankcase Ventilation (PCV) Fitting Location - (3.5L GTDI) Engine, Top Front RH Side

Courtesy of FORD MOTOR CO.

Fig 270: Identifying C1600 Headlamp Control Module (HCM) Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

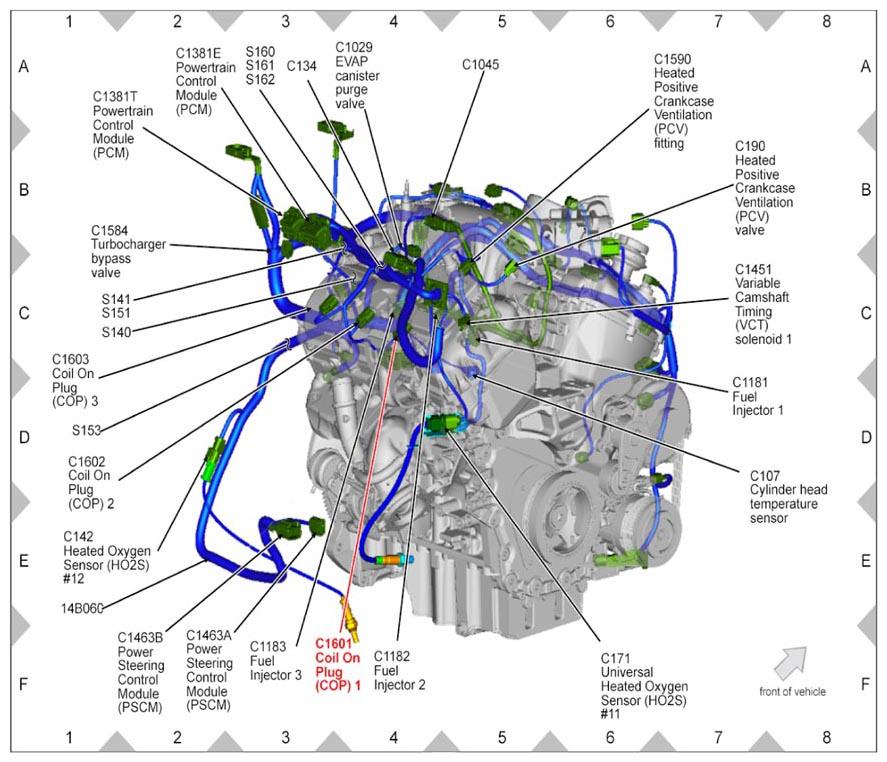

Fig 271: Identifying C1601 Coil On Plug (COP) 1 Location - (3.5L GTDI) Engine, Top Front RH Side

Courtesy of FORD MOTOR CO.

Fig 272: Identifying C1602 Coil On Plug (COP) 2 Location - (3.5L GTDI) Engine, Top RH Side

Courtesy of FORD MOTOR CO.

Fig 273: Identifying C1603 Coil On Plug (COP) 3 Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 274: Identifying C1604 Coil On Plug (COP) 4 Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 275: Identifying C1605 Coil On Plug (COP) 5 Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

Fig 276: Identifying C1606 Coil On Plug (COP) 6 Location - (3.5L GTDI) Engine, Top Front LH Side

Courtesy of FORD MOTOR CO.

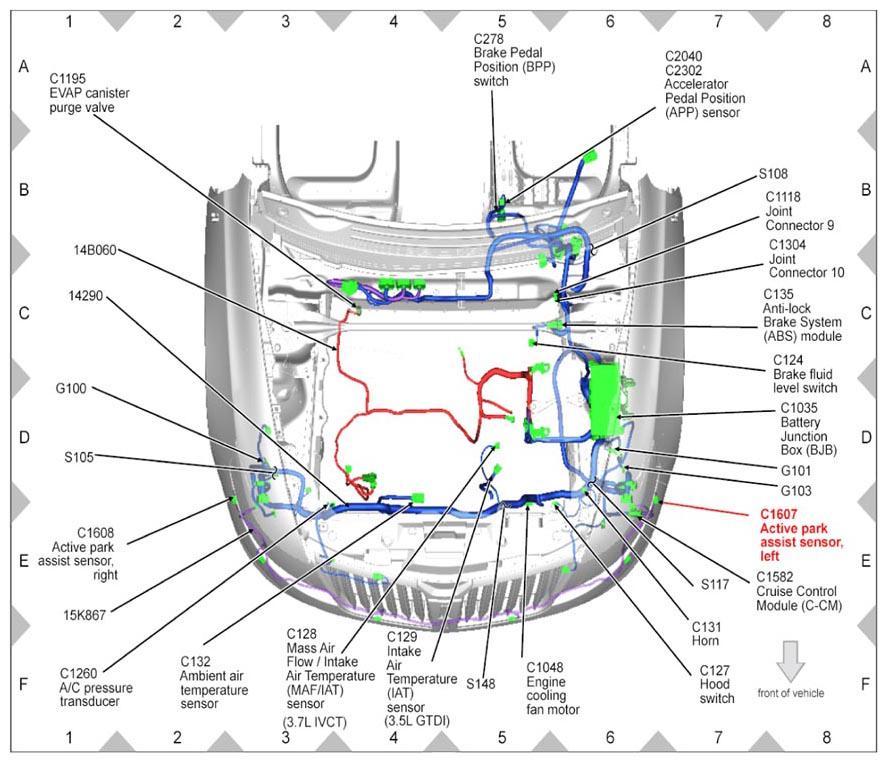

Fig 277: Identifying C1607 Active Park Assist Sensor, Left Location - Engine Compartment, On Left Front Fender

Courtesy of FORD MOTOR CO.

Fig 278: Identifying C1608 Active Park Assist Sensor, Right Location - Engine Compartment, On Right Front Fender

Courtesy of FORD MOTOR CO.

Fig 279: Identifying C1609A Electronic Throttle Control (ETC) Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

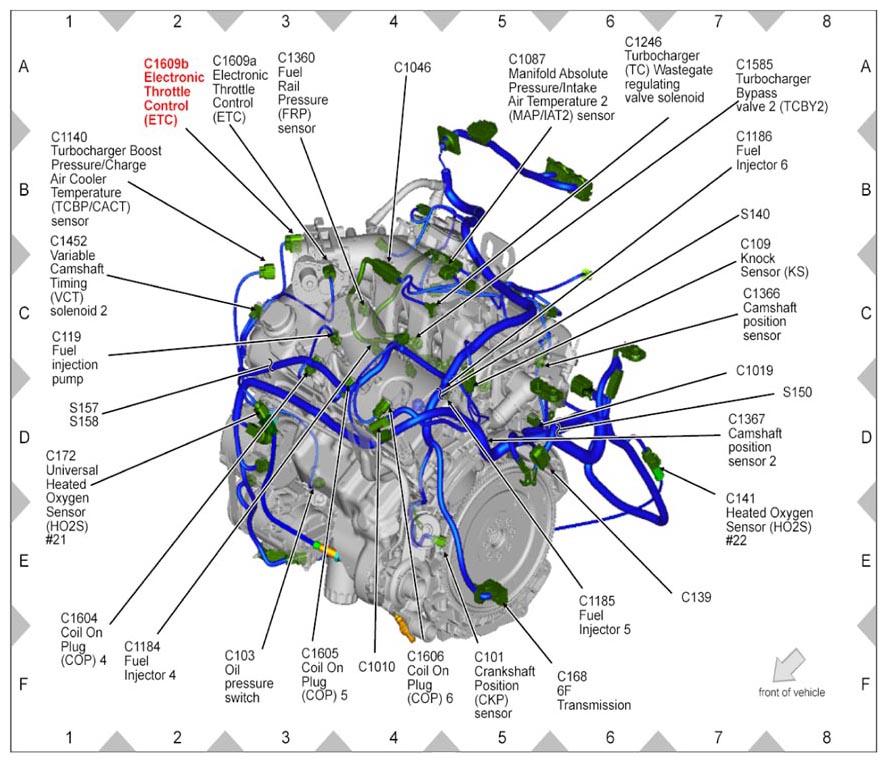

Fig 280: Identifying C1609B Electronic Throttle Control (ETC) Location - (3.5L GTDI) Engine, Top Rear RH Side

Courtesy of FORD MOTOR CO.

Fig 281: Identifying C1665 Joint Connector 11 Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 282: Identifying C1666 Joint Connector 12 Location - Engine Compartment, LH Side Front

Courtesy of FORD MOTOR CO.

Fig 283: Identifying C1667 Joint Connector 13 Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

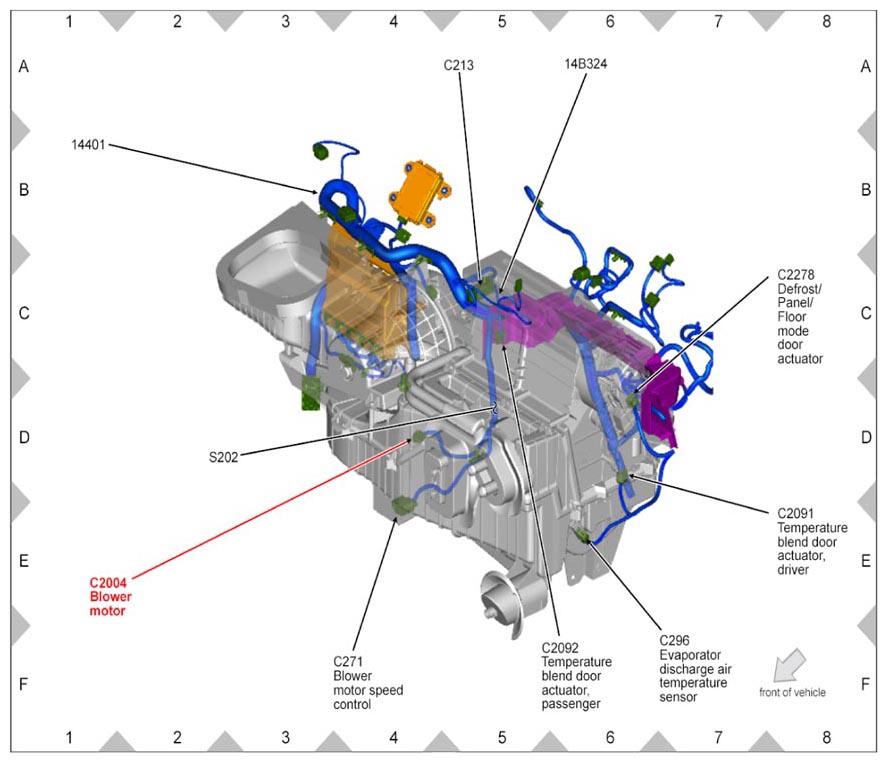

Fig 284: Identifying C2004 Blower Motor Location - Below Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 285: Identifying C2040/C2302 Accelerator Pedal Position (APP) Sensor Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 286: Identifying C2065 Instrument Panel Dimmer Switch Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

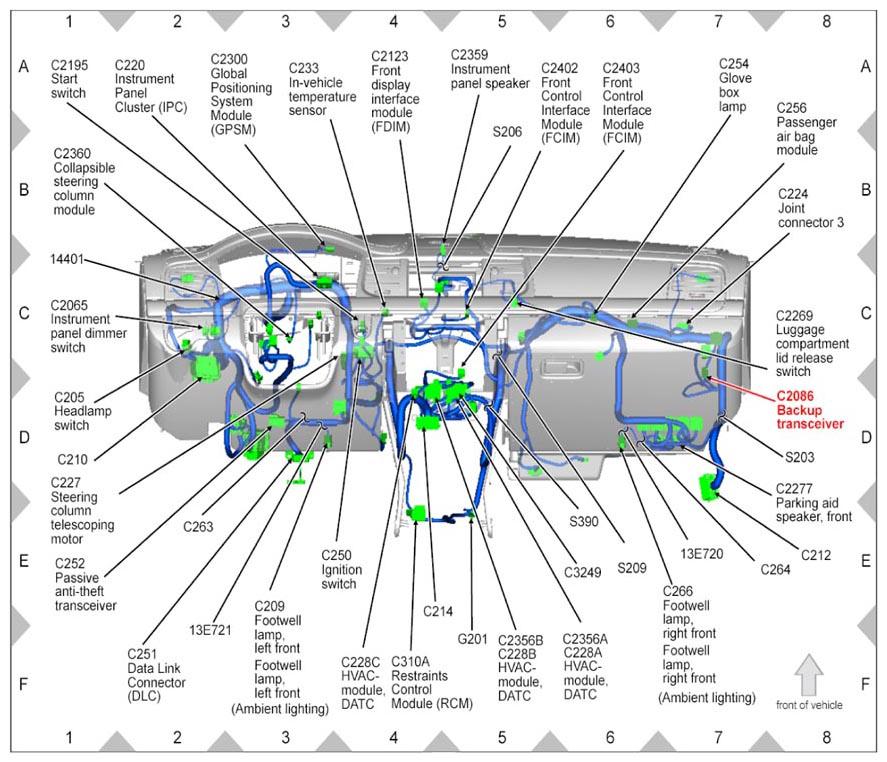

Fig 287: Identifying C2086 Backup Transceiver Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 288: Identifying C2091 Temperature Blend Door Actuator, Driver Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 289: Identifying C2092 Temperature Blend Door Actuator, Passenger Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 290: Identifying C2123 Front Display Interface Module (FDIM) Location - Behind Dash Panel, Top Center

Courtesy of FORD MOTOR CO.

Fig 291: Identifying C2153A Remote Function Actuator (RFA) Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 292: Identifying C2153B Remote Function Actuator (RFA) Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 293: Identifying C2153C Remote Function Actuator (RFA) Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 294: Identifying C2153D Remote Function Actuator (RFA) Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 295: Identifying C2153E Remote Function Actuator (RFA) Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 296: Identifying C2195 Start Switch Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

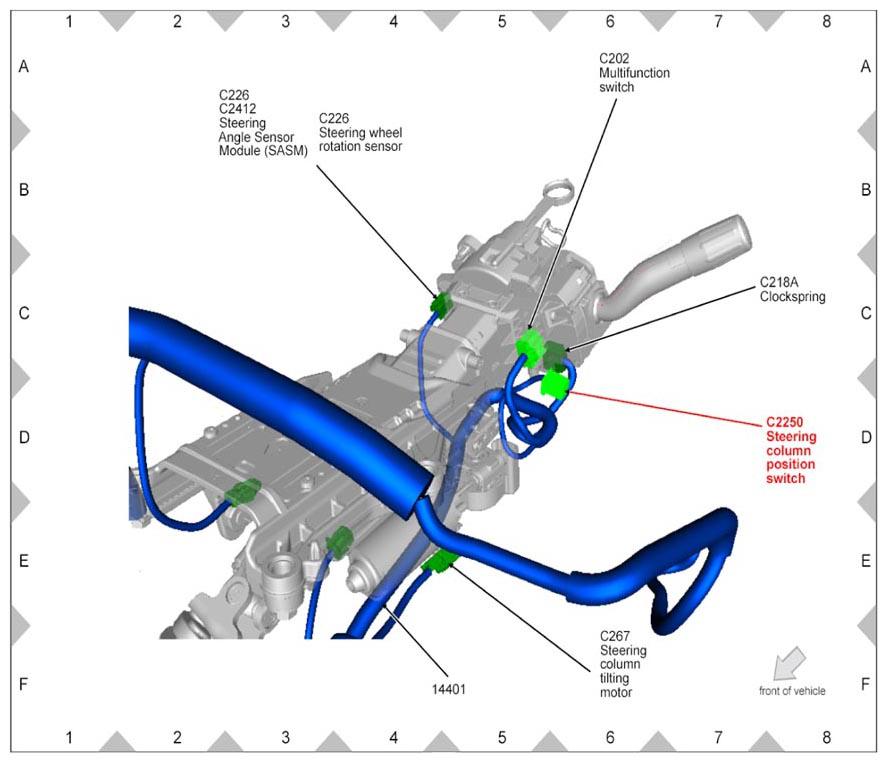

Fig 297: Identifying C2250 Steering Column Position Switch Location - Steering Column

Courtesy of FORD MOTOR CO.

Fig 298: Identifying C2269 Luggage Compartment Lid Release Switch Location - Inside Glove Box, LH Side

Courtesy of FORD MOTOR CO.

Fig 299: Identifying C2277 Parking Aid Speaker, Front Location - Under Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

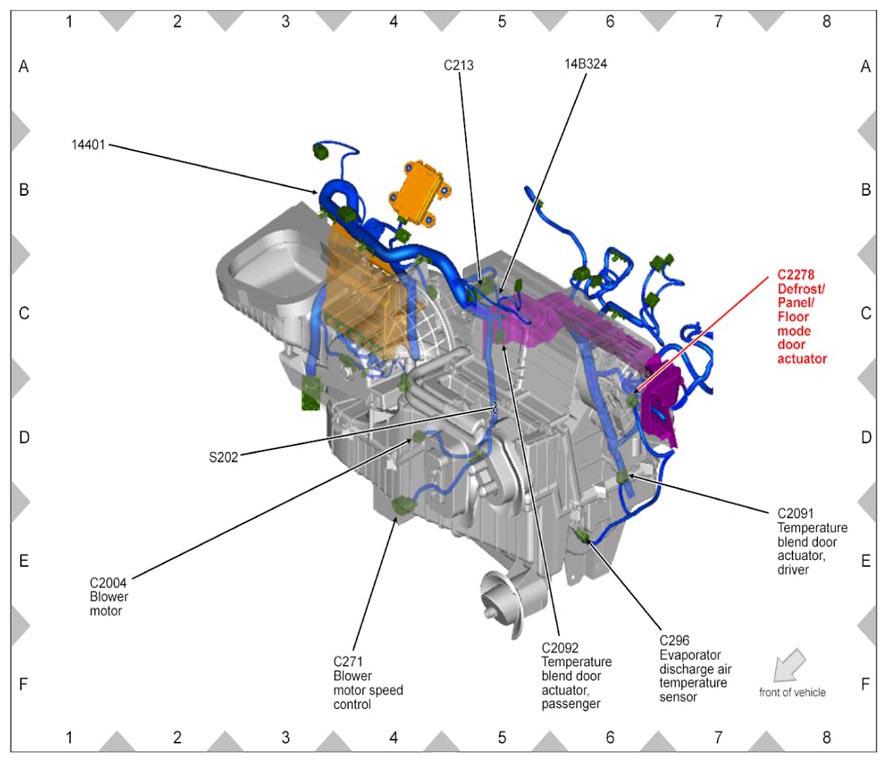

Fig 300: Identifying C2278 Defrost/Panel/Floor Mode Door Actuator Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 301: Identifying C2280A Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 302: Identifying C2280B Smart Junction Box (SJB) Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 303: Identifying C2280C Smart Junction Box (SJB) Location - Under Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 304: Identifying C2280D Smart Junction Box (SJB) Location - Under Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 305: Identifying C2280E Smart Junction Box (SJB) Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 306: Identifying C2280F Smart Junction Box (SJB) Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 307: Identifying C2280G Smart Junction Box (SJB) Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 308: Identifying C2300 Global Positioning System Module (GPSM) Location - Behind Dash Panel, LH Side Top

Courtesy of FORD MOTOR CO.

Fig 309: Identifying C2302 Accelerator Pedal Position (APP) Sensor Location - Below Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 310: Identifying C2304 Ambient Lighting Switch Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 311: Identifying C2356A Connector Location - (Navigation) Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 312: Identifying C2356B Connector Location - (Navigation) Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 313: Identifying C2359 Instrument Panel Speaker Location - (THX) Behind Dash Panel, Top Center

Courtesy of FORD MOTOR CO.

Fig 314: Identifying C2360 Collapsible Steering Column Module Location - Behind Dash Panel, LH Side

Courtesy of FORD MOTOR CO.

Fig 315: Identifying C2362 Instrument Panel Speaker, Right Location - Behind Dash Panel, RH Side Top

Courtesy of FORD MOTOR CO.

Fig 316: Identifying C2391 Instrument Panel Speaker, Left Location - Behind Dash Panel, LH Side Top

Courtesy of FORD MOTOR CO.

Fig 317: Identifying C2395 Head Up Display (HUD) Module Location - Behind Dash Panel, Top Center

Courtesy of FORD MOTOR CO.

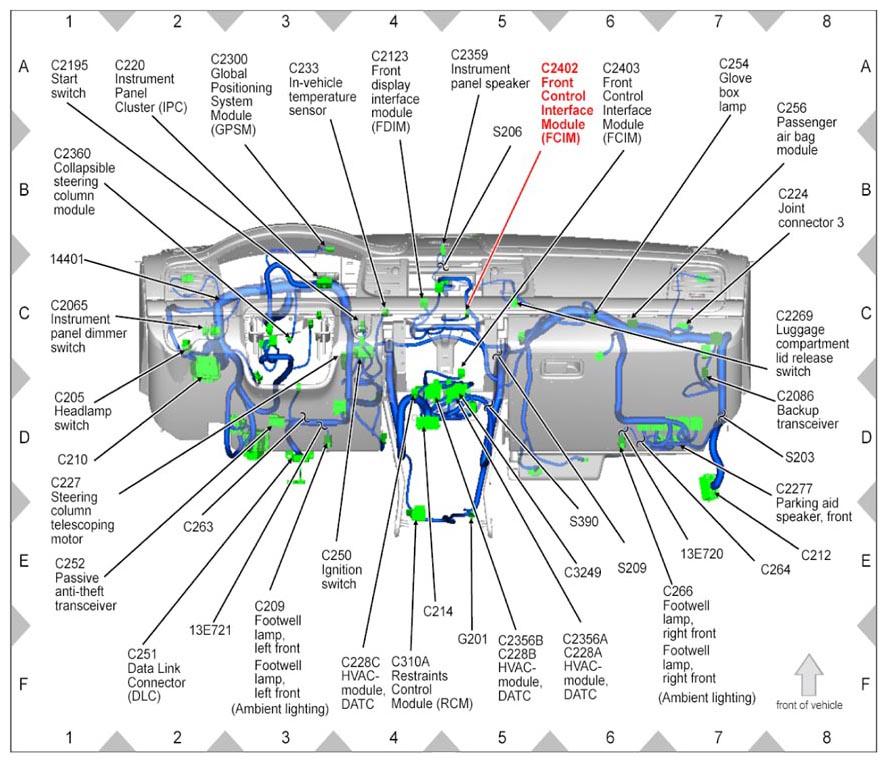

Fig 318: Identifying C2402 Front Control Interface Module (FCIM) Location - (Without Navigation) Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 319: Identifying C2403 Front Control Interface Module (FCIM) Location - (Navigation) Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 320: Identifying C2411 Interior Lighting Control Module (ILCM) Location - Behind Dash Panel, RH Side

Courtesy of FORD MOTOR CO.

Fig 321: Identifying C2412 Steering Angle Sensor Module (SASM) Location - Steering Column

Courtesy of FORD MOTOR CO.

Fig 322: Identifying C2998 Steering Wheel Switch, Left Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 323: Identifying C2999 Steering Wheel Switch, Right Location - Steering Wheel

Courtesy of FORD MOTOR CO.

Fig 324: Identifying C3007 Connector Location - Under Vehicle, Center

Courtesy of FORD MOTOR CO.

Fig 325: Identifying C3034 Seat Backrest Thermo-Electric Device, Driver Side Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 326: Identifying C3035 Seat Cushion Thermo-Electric Device, Driver Side Location - Under Driver Seat, LH Side Rear

Courtesy of FORD MOTOR CO.

Fig 327: Identifying C3039 Seat Backrest Thermo-Electric Device, Passenger Side Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 328: Identifying C3040 Seat Cushion Thermo-Electric Device, Passenger Side Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 329: Identifying C3045 Rear Seat Cushion Heater Mat Location - Under Left Rear Seat

Courtesy of FORD MOTOR CO.

Fig 330: Identifying C3047 Connector Location - Under Rear Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 331: Identifying C3050 Connector Location - Under Passenger Seat, Front

Courtesy of FORD MOTOR CO.

Fig 332: Identifying C3051 Connector Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 333: Identifying C3052 Connector Location - Under Driver Seat, Center Rear

Courtesy of FORD MOTOR CO.

Fig 334: Identifying C3053 Connector Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 335: Identifying C3065 Safety Belt Buckle Switch, Driver Location - Under Driver Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 336: Identifying C3066 Safety Belt Buckle Switch, Passenger Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 337: Identifying C3074 Passenger Seat Front Height Motor Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 338: Identifying C3075 Passenger Seat Rear Height Motor Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 339: Identifying C3120 Subwoofer Location - (THX) Rear Deck, Center

Courtesy of FORD MOTOR CO.

Fig 340: Identifying C3127 Fuel Pump Module Location - Under Vehicle, Center Right

Courtesy of FORD MOTOR CO.

Fig 341: Identifying C3133 Connector Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 342: Identifying C3134 Connector Location - Under Driver Seat, LH Side

Courtesy of FORD MOTOR CO.

Fig 343: Identifying C3135 Connector Location - Under Vehicle, Center Left

Courtesy of FORD MOTOR CO.

Fig 344: Identifying C3158 Circuit Filter Location - LH D-Pillar, Middle

Courtesy of FORD MOTOR CO.

Fig 345: Identifying C3159 Occupant Classification System Module (OCSM) Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

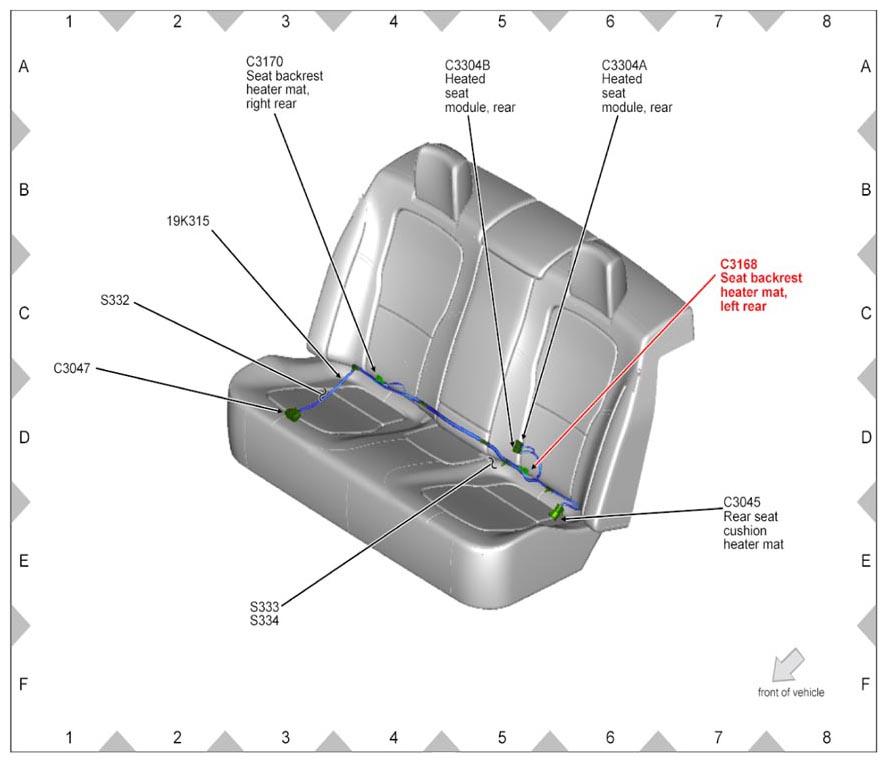

Fig 346: Identifying C3168 Seat Backrest Heater Mat, Left Rear Location - Under Left Rear Seat

Courtesy of FORD MOTOR CO.

Fig 347: Identifying C3170 Seat Backrest Heater Mat, Right Rear Location - Under Right Rear Seat

Courtesy of FORD MOTOR CO.

Fig 348: Identifying C3187 Driver Seat Recliner Motor Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 349: Identifying C3189 Passenger Seat Recliner Motor Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 350: Identifying C3190A Seat Control Switch, Passenger Side Front Location - (12-Way) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 351: Identifying C3190B Seat Control Switch, Passenger Side Front Location - (12-Way) Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 352: Identifying C3196 Rear Sunshade Switch Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 353: Identifying C3210 Side Impact Sensor, Driver 2 Location - Rear Of Vehicle Above LH Wheel Well

Courtesy of FORD MOTOR CO.

Fig 354: Identifying C3212 Side Impact Sensor, Passenger 2 Location - Rear Of Vehicle Above RH Wheel Well

Courtesy of FORD MOTOR CO.

Fig 355: Identifying C3215 Lumbar Motor, Driver Seat Location - In Driver Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 356: Identifying C3216 Lumbar Motor, Passenger Seat Location - In Passenger Seat Backrest

Courtesy of FORD MOTOR CO.

Fig 357: Identifying C3238 Safety Belt Tension Sensor, Passenger Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 358: Identifying C3239 Fuel Pump Control Module Location - Behind Rear Seat, RH Side

Courtesy of FORD MOTOR CO.

Fig 359: Identifying C3245 Floor Shifter Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 360: Identifying C3249 Connector Location - Behind Dash Panel, Center

Courtesy of FORD MOTOR CO.

Fig 361: Identifying C3250 Scuff Plate Lamp, Right Front Location - Bottom, RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 362: Identifying C3251 Scuff Plate Lamp, Left Front Location - Bottom, RH A-Pillar

Courtesy of FORD MOTOR CO.

Fig 363: Identifying C3265A Connector Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 364: Identifying C3265B Connector Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 365: Identifying C3265C Dual Climate Controlled Seat Module (DCSM) Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 366: Identifying C3270 Fuel Level Sensor Location - Under Vehicle, Center Left

Courtesy of FORD MOTOR CO.

Fig 367: Identifying C3304A Heated Seat Module, Rear Location - Under Left Rear Seat

Courtesy of FORD MOTOR CO.

Fig 368: Identifying C3304B Heated Seat Module, Rear Location - Under Left Rear Seat

Courtesy of FORD MOTOR CO.

Fig 369: Identifying C3312 Audio Input Jack Location - Center Console In Storage Bin

Courtesy of FORD MOTOR CO.

Fig 370: Identifying C3323 Power Point Console, Rear Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 371: Identifying C3324 Occupant Classification Sensor (OCS) 1 Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 372: Identifying C3325 Occupant Classification Sensor (OCS) 2 Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 373: Identifying C3330 Occupant Classification Sensor (OCS) 3 Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 374: Identifying C3331 Occupant Classification Sensor (OCS) 4 Location - Under Passenger Seat

Courtesy of FORD MOTOR CO.

Fig 375: Identifying C3340 Sunshade Module Location - Under Rear Deck LH Side

Courtesy of FORD MOTOR CO.

Fig 376: Identifying C3342 Accessory Protocol Interface Module (APIM) Location - In Center Console, Rear

Courtesy of FORD MOTOR CO.

Fig 377: Identifying C3345 Active Park Assist Switch Location - In Center Console, Center

Courtesy of FORD MOTOR CO.

Fig 378: Identifying C3347 Active Torque Control Coupling (ATCC) Solenoid Location - Above Rear Axle, Center

Courtesy of FORD MOTOR CO.

Fig 379: Identifying C3405 Joint Connector 5 Location - Under Passenger Seat On Floor

Courtesy of FORD MOTOR CO.

Fig 380: Identifying C3406 Joint Connector 6 Location - Rear Of Vehicle Above LH Wheel Well

Courtesy of FORD MOTOR CO.

Fig 381: Identifying C3408 Joint Connector 8 Location - Under Driver Seat On Floor

Courtesy of FORD MOTOR CO.

Fig 382: Identifying C4009 Parking Aid Sensor, Rear, Outer Left Location - Rear Bumper, LH Side

Courtesy of FORD MOTOR CO.

Fig 383: Identifying C4010 Parking Aid Sensor, Rear, Inner Left Location - Rear Bumper, LH Side Center

Courtesy of FORD MOTOR CO.

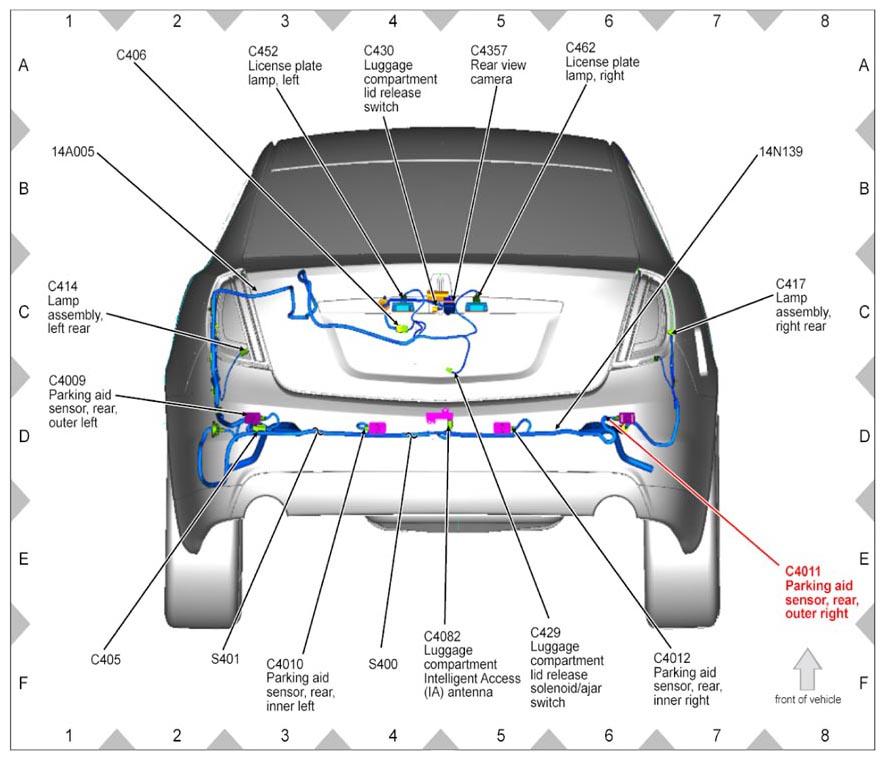

Fig 384: Identifying C4011 Parking Aid Sensor, Rear, Outer Right Location - Rear Bumper, RH Side

Courtesy of FORD MOTOR CO.

Fig 385: Identifying C4012 Parking Aid Sensor, Rear, Inner Right Location - Rear Bumper, RH Side Center

Courtesy of FORD MOTOR CO.

Fig 386: Identifying C4015 Parking Aid Speaker Location - Under Rear Deck LH Side

Courtesy of FORD MOTOR CO.

Fig 387: Identifying C4082 Luggage Compartment Intelligent Access (IA) Antenna Location - Rear Bumper, Center

Courtesy of FORD MOTOR CO.

Fig 388: Identifying C4198 Luggage Compartment Lamp, Left Location - Under Rear Deck Center

Courtesy of FORD MOTOR CO.

Fig 389: Identifying C4226A Parking Aid Module (PAM) Location - Under Rear Deck LH Side

Courtesy of FORD MOTOR CO.

Fig 390: Identifying C4226B Parking Aid Module (PAM) Location - Under Rear Deck LH Side

Courtesy of FORD MOTOR CO.

Fig 391: Identifying C4260 Wheel Speed Sensor, Right Rear Location - Above Rear Axle, Center

Courtesy of FORD MOTOR CO.

Fig 392: Identifying C4261 Wheel Speed Sensor, Left Rear Location - Above Rear Axle, Center

Courtesy of FORD MOTOR CO.

Fig 393: Identifying C4326A Audio Digital Signal Processing (DSP) Module Location - (THX) Luggage Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 394: Identifying C4326B Audio Digital Signal Processing (DSP) Module Location - (THX) Luggage Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 395: Identifying C4326C Audio Digital Signal Processing (DSP) Module Location - (THX) Luggage Compartment, LH Side

Courtesy of FORD MOTOR CO.

Fig 396: Identifying C4357 Rear View Camera Location - Vehicle Rear End, Center

Courtesy of FORD MOTOR CO.

Fig 397: Identifying C9012 Auto-Dimming Interior Mirror Location - (Late Production) In Roof Panel, Front Center

Courtesy of FORD MOTOR CO.

Fig 398: Identifying C9018 Safety Canopy Module, Passenger Location - LH D-Pillar, Top

Courtesy of FORD MOTOR CO.

Fig 399: Identifying C9019 Safety Canopy Module, Passenger Location - RH D-Pillar, Top

Courtesy of FORD MOTOR CO.

Fig 400: Identifying C9021 Antenna Module Location - RH D-Pillar, Top

Courtesy of FORD MOTOR CO.

Fig 401: Identifying C9026 Remote Function Receiver (RFR) Module Location - In Roof Panel, Left Front

Courtesy of FORD MOTOR CO.

Fig 402: Identifying C9115 Headlamp Control Module 2 (HCM-2) Location - Roof, Front Center

Courtesy of FORD MOTOR CO.

Fig 403: Identifying C9221 Microphone Location - (Late Production) In Roof Panel, Center Roof

Courtesy of FORD MOTOR CO.
