Trim Panels, Mouldings and Fasteners

NOTE: Floor console with navigation shown in the illustration, floor console without navigation similar.

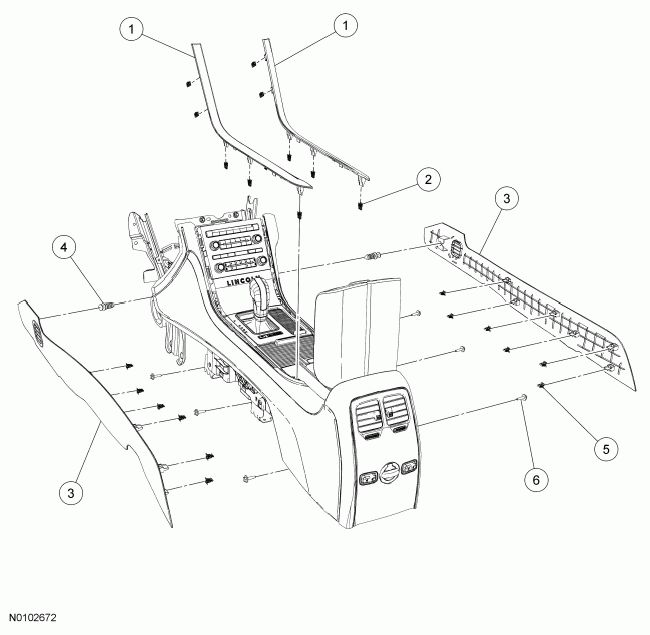

Fig 1: Exploded View Of Floor Console Components - Trim Panels, Mouldings And Fasteners

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	061A16 RH/061A17 LH	Floor console finish mouldings
2	W710338	Floor console finish moulding retaining clip (10 required)
3	04608 RH/04609 LH	Floor console lower trim panels
4	W713267	Pin-type retainer (2 required)
5	W710338	Floor console lower trim panel retaining clip (12 required)
6	W505424	Floor console bolt (6 required)
