With IA

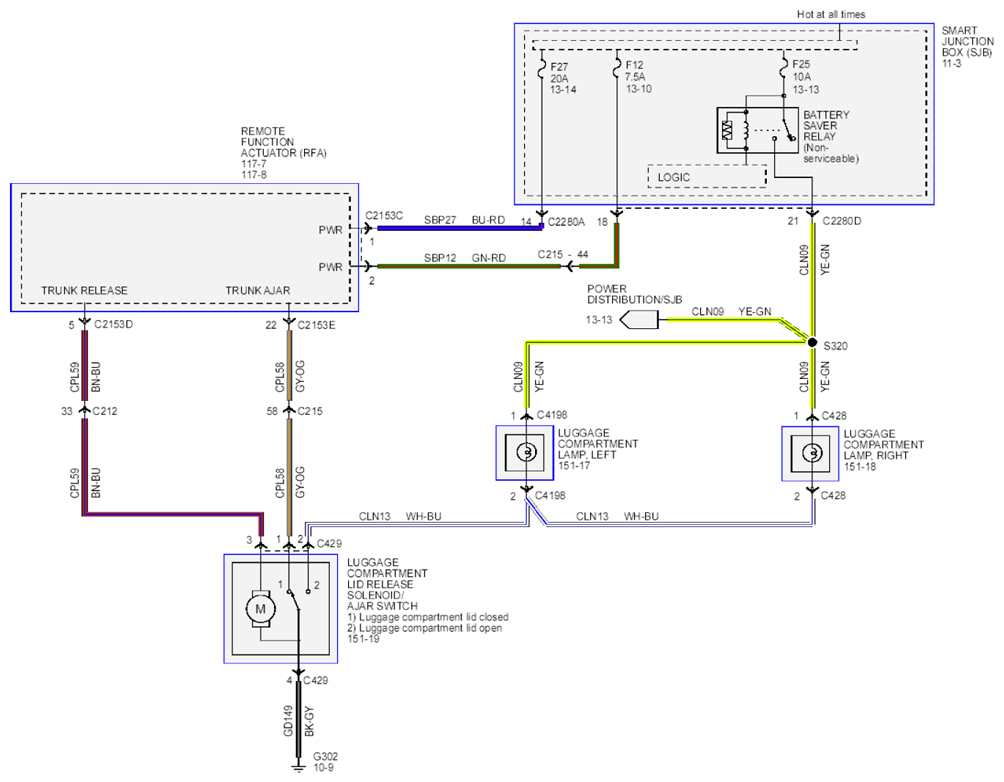

Fig 1: Luggage Compartment Lid Release Circuit Diagram - With IA (1 Of 2)
G07884479Courtesy of FORD MOTOR CO.

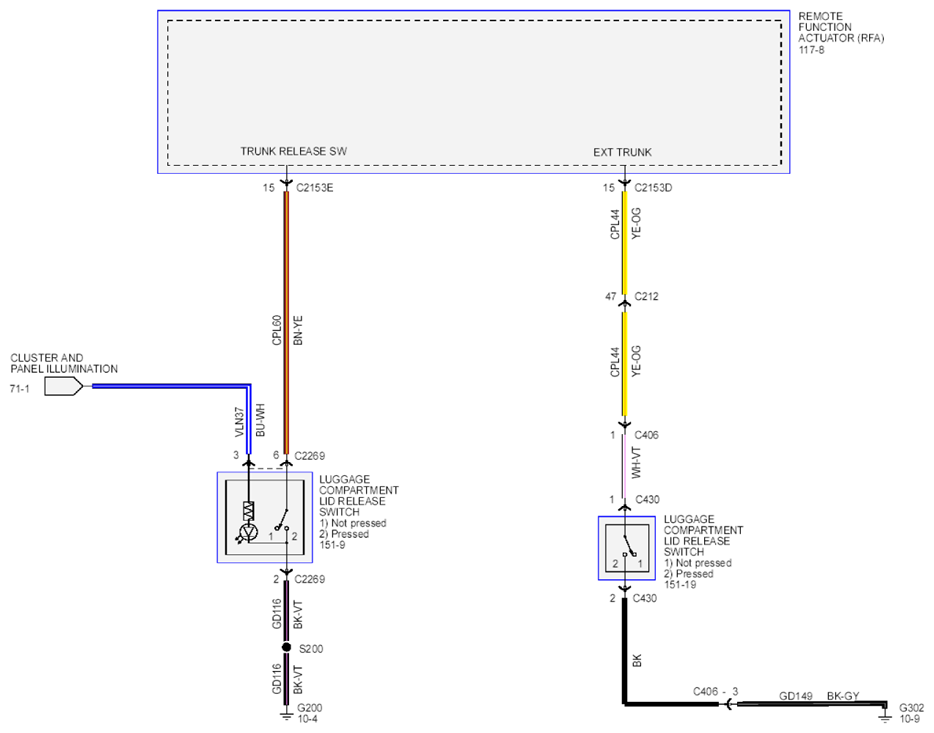

Fig 2: Luggage Compartment Lid Release Circuit Diagram - With IA (2 Of 2)
G07884480Courtesy of FORD MOTOR CO.
