Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Interior Lamps
Interior Lamps

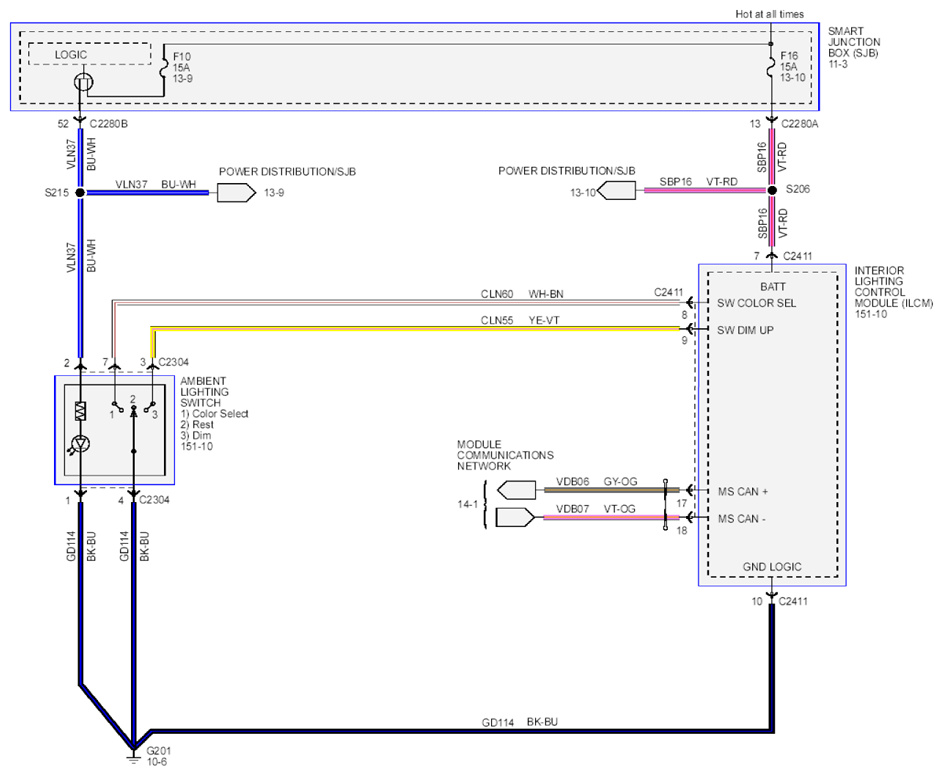

Fig 1: Interior Lamps Circuit Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

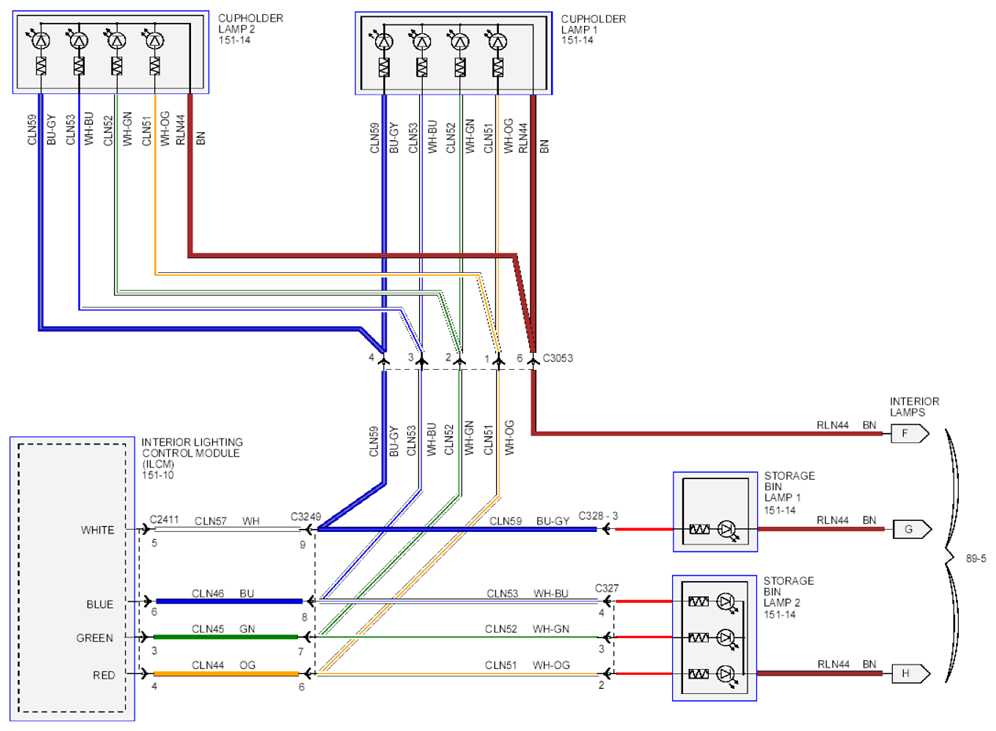

Fig 2: Interior Lamps Circuit Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

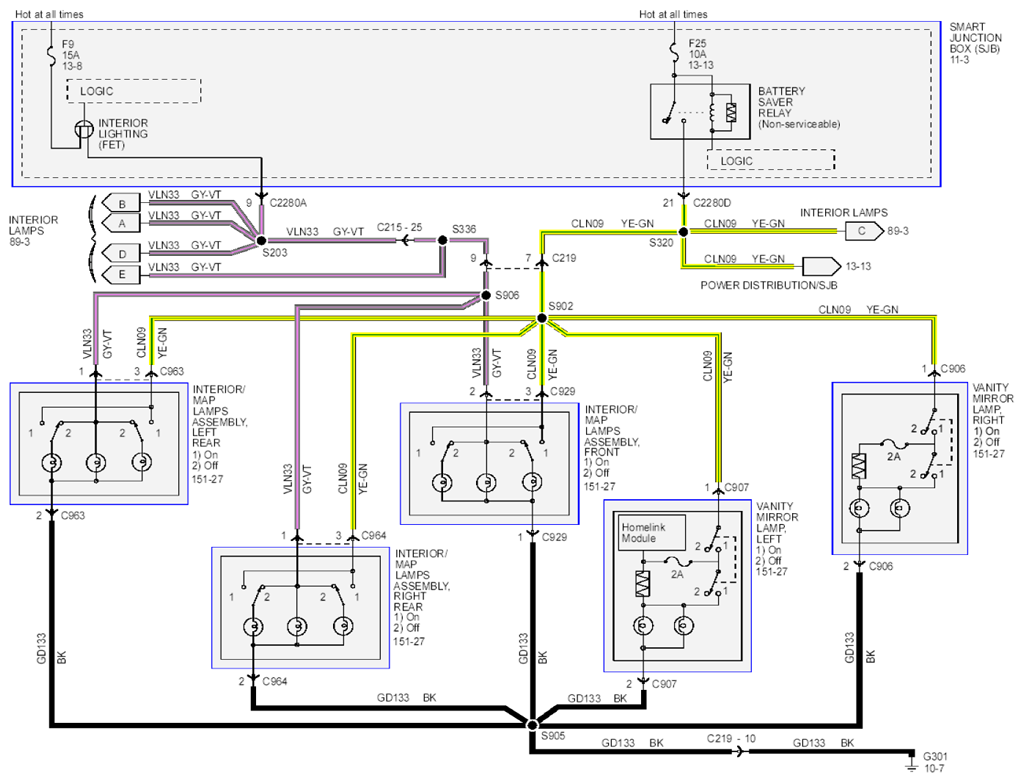

Fig 3: Interior Lamps Circuit Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

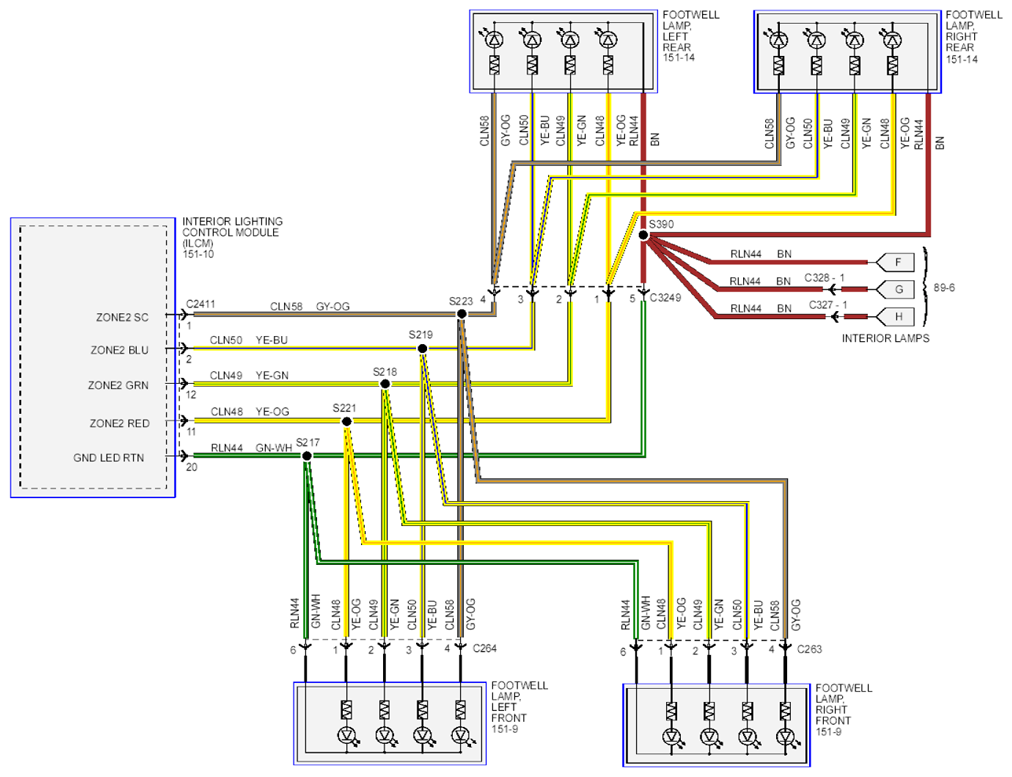

Fig 4: Interior Lamps Circuit Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

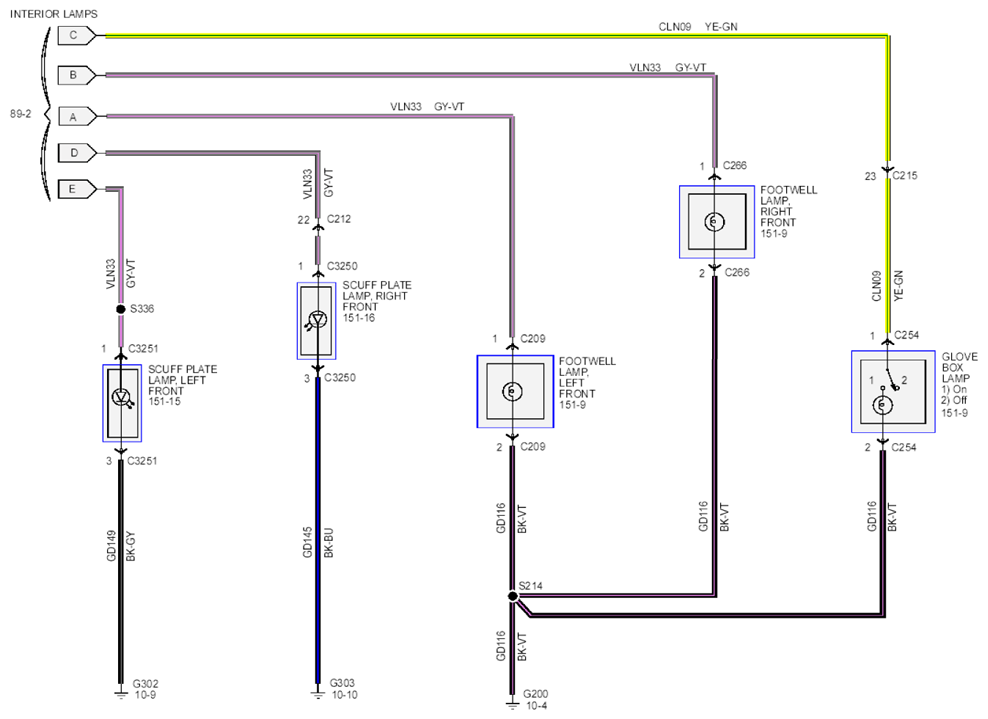

Fig 5: Interior Lamps Circuit Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

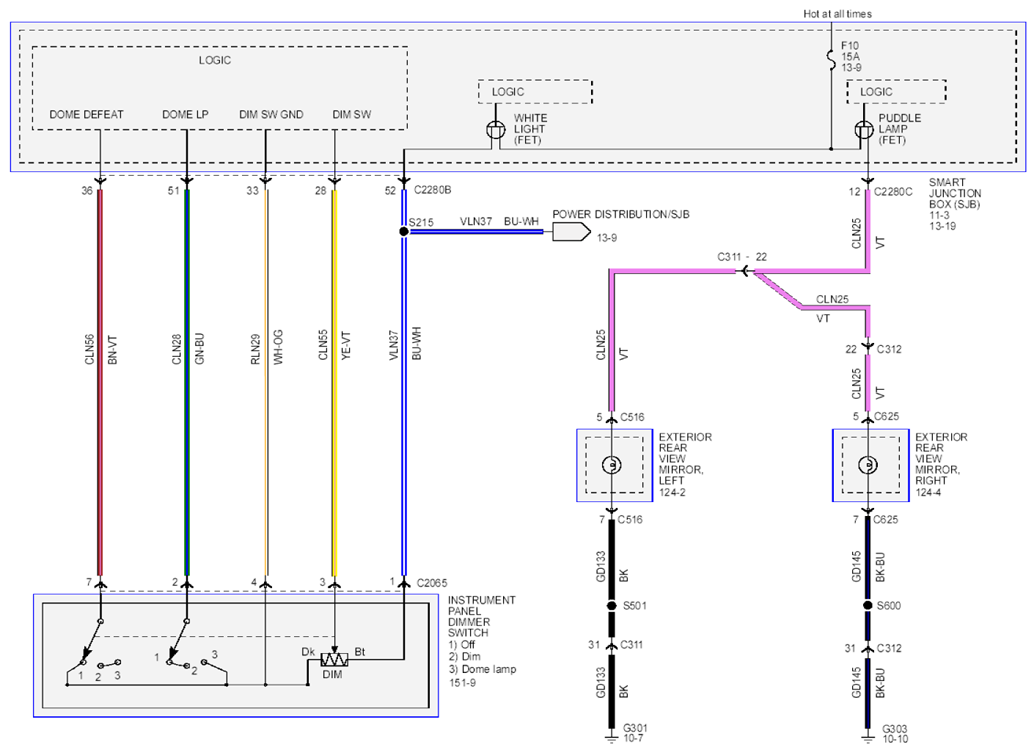

Fig 6: Interior Lamps Circuit Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
