Horn_Cigar Lighter

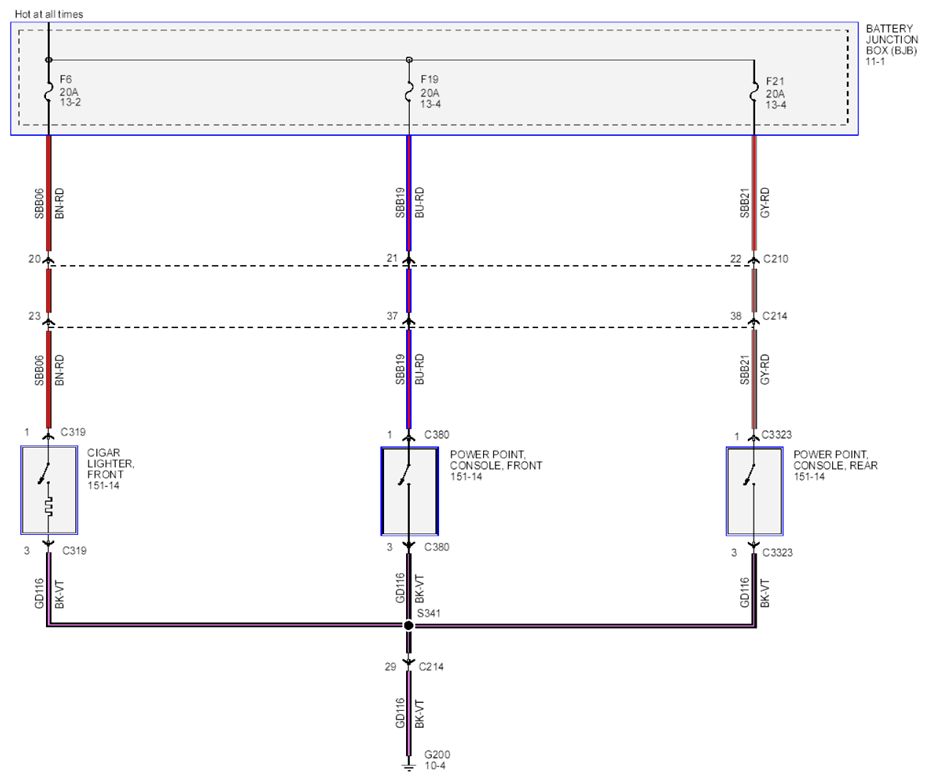

Fig 1: Horn Circuit Diagram Cigar Lighter Circuit Diagram (1 Of 2)
G07884427Courtesy of FORD MOTOR CO.

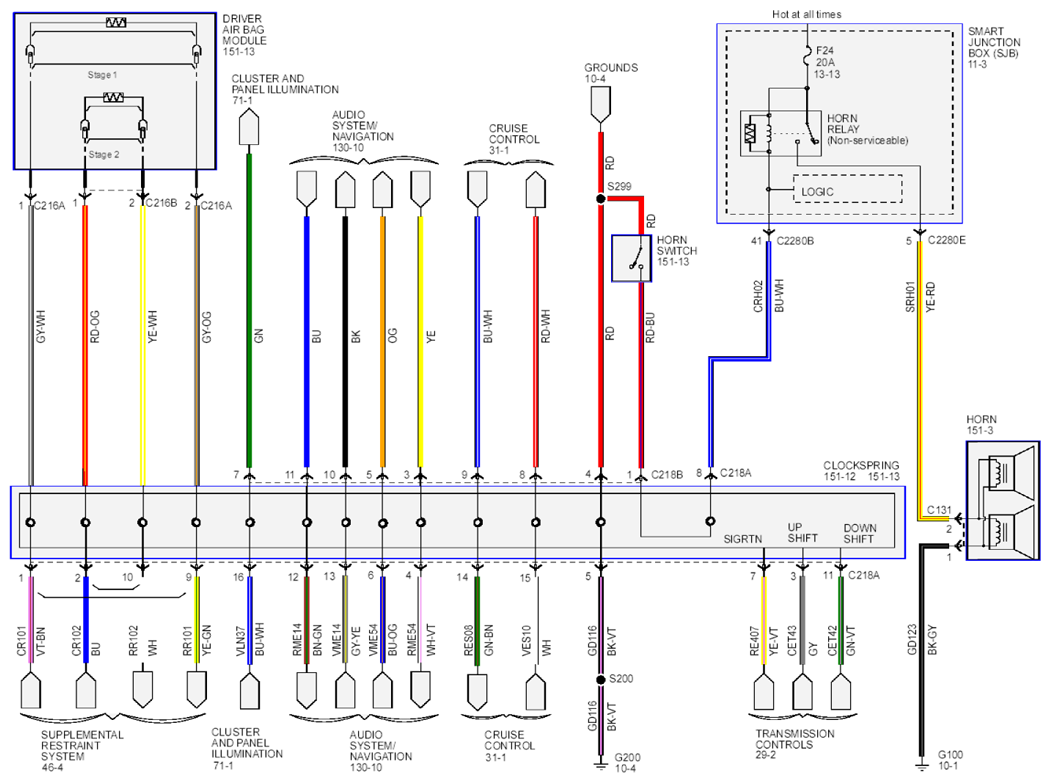

Fig 2: Horn Circuit Diagram Cigar Lighter Circuit Diagram (2 Of 2)
G07884428Courtesy of FORD MOTOR CO.
