OEM Wiring Diagrams: Grounds: G303

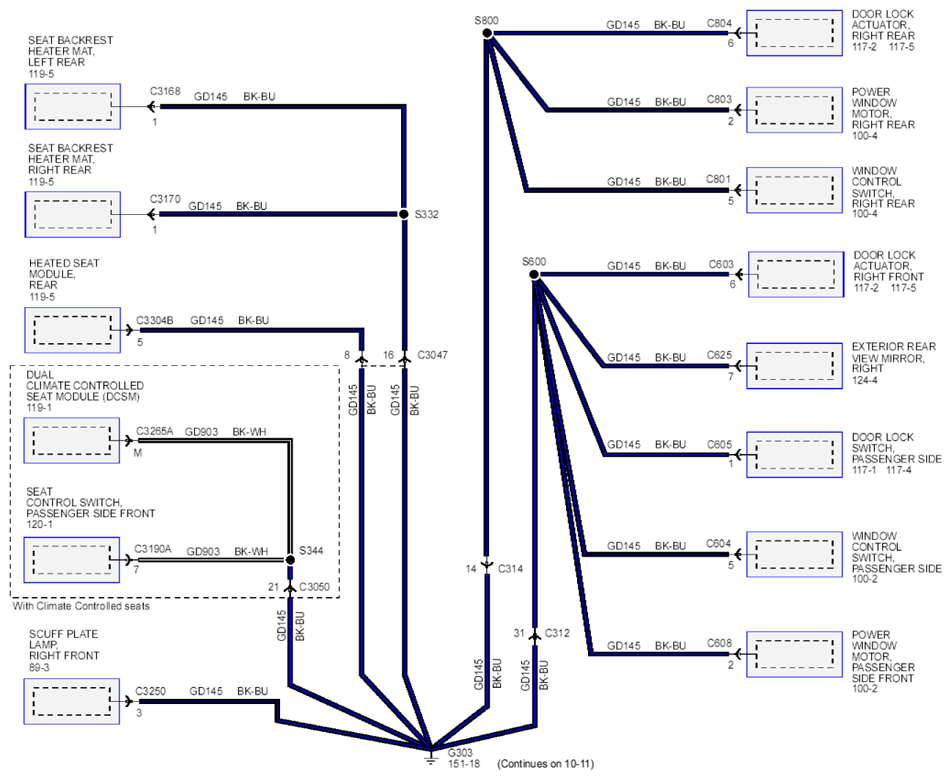

Fig 1: Ground Circuit Diagram - G303

G07884357

Courtesy of FORD MOTOR CO.
