Luggage Compartment Lid Release Solenoid / Luggage Compartment Lid Ajar Switch Connector - C429

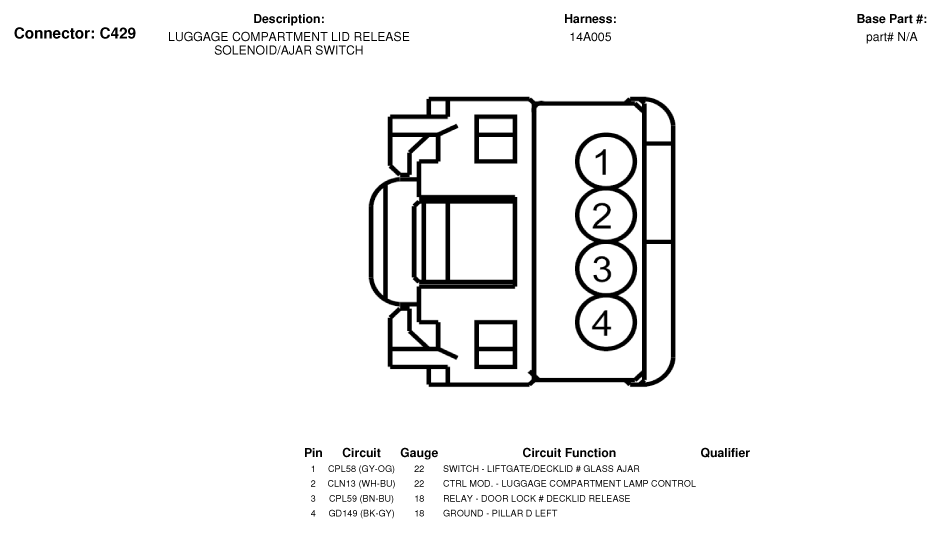

Fig 1: Luggage Compartment Lid Release Solenoid / Luggage Compartment Lid Ajar Switch Connector End View (C429)
G07329886Courtesy of FORD MOTOR CO.
