Evaporative Emissions Canister Vent Control Solenoid Connector - C377

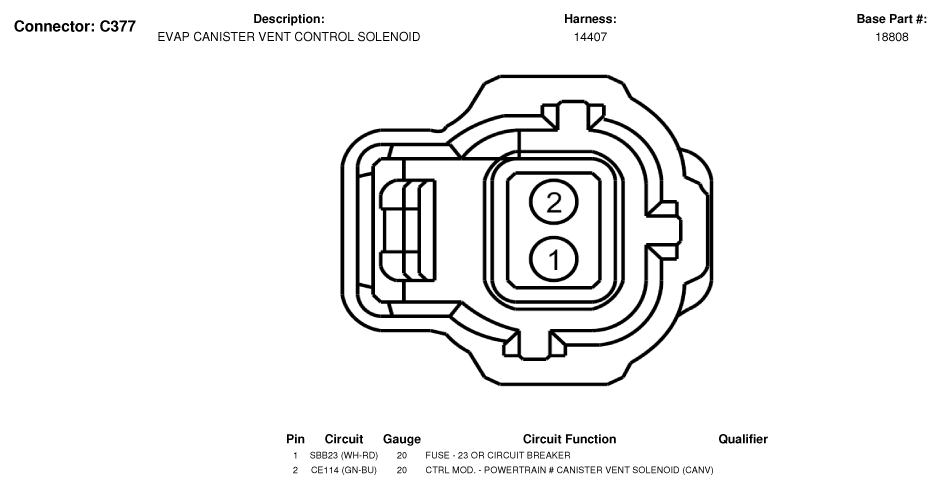

Fig 1: Evaporative Emissions Canister Vent Control Solenoid Connector End View (C377)

G07329872

Courtesy of FORD MOTOR CO.
