Sunroof - Roof Opening Panel
>>
Description And Operation
>>
Roof Opening Panel
>>
Global Open/Close (if equipped)
>>
Roof Opening Panel Drain Hose Routing
Roof Opening Panel Drain Hose Routing
NOTE:
Driver side shown in illustration, passenger side similar.

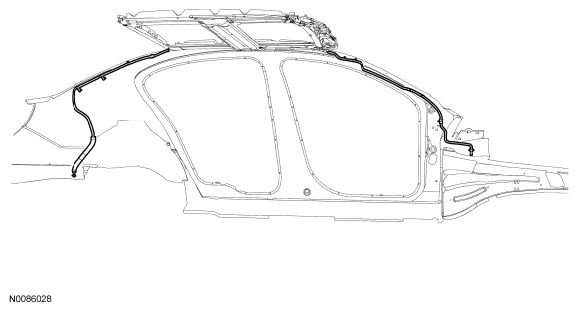

Fig 1: Identifying Roof Opening Panel Drain Hose Routing
Courtesy of FORD MOTOR CO.
