Seat Wire Harness Routing
>>
All Passenger Seats
>>
Wire Harness Retainer and Connector Location View
Wire Harness Retainer and Connector Location View
NOTE:
See supporting views for missing numbers.

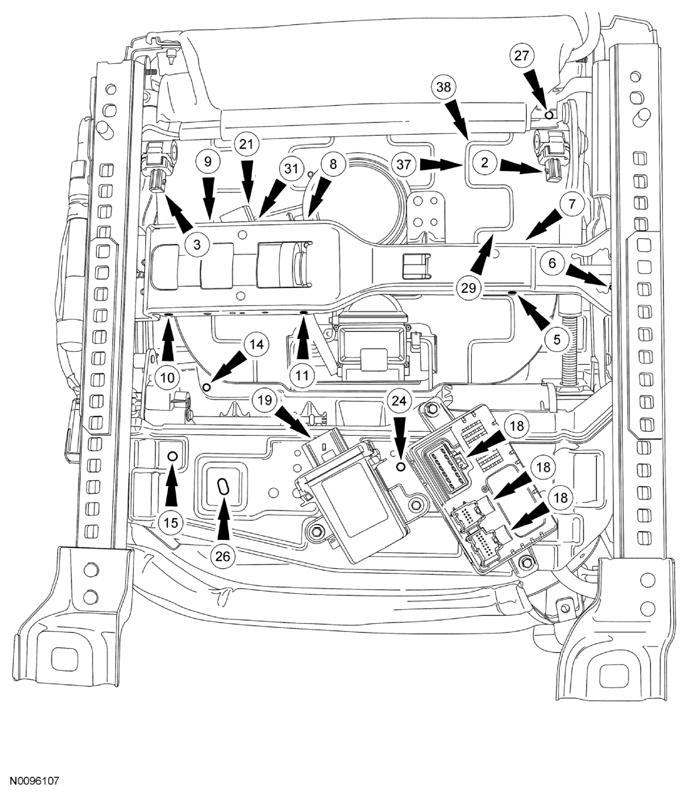

Fig 1: Wire Harness Retainer And Connector Location View
Courtesy of FORD MOTOR CO.
