Removal and Installation
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
- Remove the rear lamps. For additional information, refer to EXTERIOR LIGHTING SYSTEM article.
- Disconnect the rear bumper cover electrical connector.
- Remove the 6 fender splash shield screws (3 each side) located in the wheel well.
- Remove the 2 rear bumper cover-to-rear bumper cover mounting bracket screws.
- Remove the 2 rear bumper pin-type retainers.
- Remove the 2 rear bumper cover pin-type retainers.
- Remove the rear bumper cover.

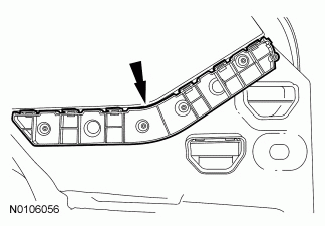

- Inspect the bumper cover mounting reinforcements for damage. If necessary, install new bumper cover mounting reinforcements prior to installation.
- To install, reverse the removal procedure.
NOTE:
The forward upper portion of the bumper cover must be pulled outward to unclip it from the bumper cover mounting reinforcement to avoid possible damage to the bumper cover and reinforcement.
