Seat Cushion Heater Mat - Rear: Installation

NOTE: Always install a new cushion foam pad and cushion heater mats together.

NOTE: The cushion heater mat with the long wire harness goes on the RH side.

Install new cushion heater mats onto the new cushion foam pad.
1. Position a cushion heater mat onto the cushion foam pad so the opening aligns to the hook-and-loop strip in the cushion foam pad.
2. Tuck the cushion heater mat into the cushion foam pad trenches.
3. Make sure the cushion heater mat stays in place. Remove the paper strips from under the cushion heater mat and adhere to the cushion foam pad, laying it flat with no wrinkles.
4. Route the cushion heater mat wire harness and electrical connector through the cushion foam pad to the other side.

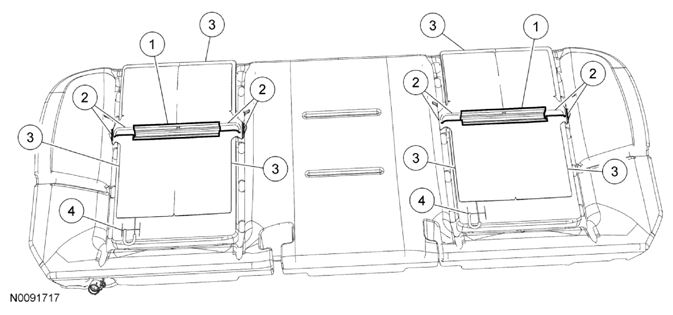

  Fig 1: Installing Cushion Heater Mats Onto Cushion Foam Pad
  Courtesy of FORD MOTOR CO.
From underneath the cushion foam pad, route the RH cushion heater mat wire harness into the cushion foam pad trench and out the other side. Attach the wire harness retainer and connect the LH cushion heater mat electrical connector to the RH cushion heater mat electrical connector.

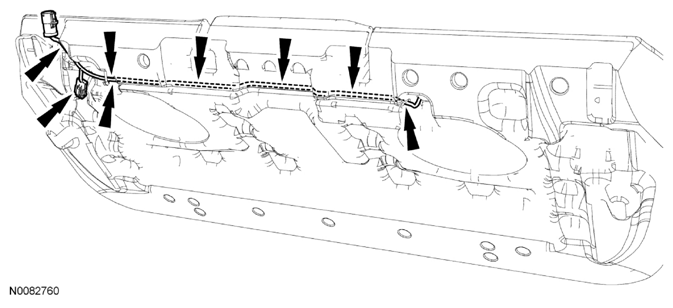

Fig 2: Locating Cushion Heater Mat Wire Harness, Retainer And Electrical Connector
Courtesy of FORD MOTOR CO.
Install the rear seat cushion trim cover. For additional information, refer to SEAT CUSHION COVER - REAR .
Install the rear seat cushion. For additional information, refer to SEAT CUSHION - REAR .
