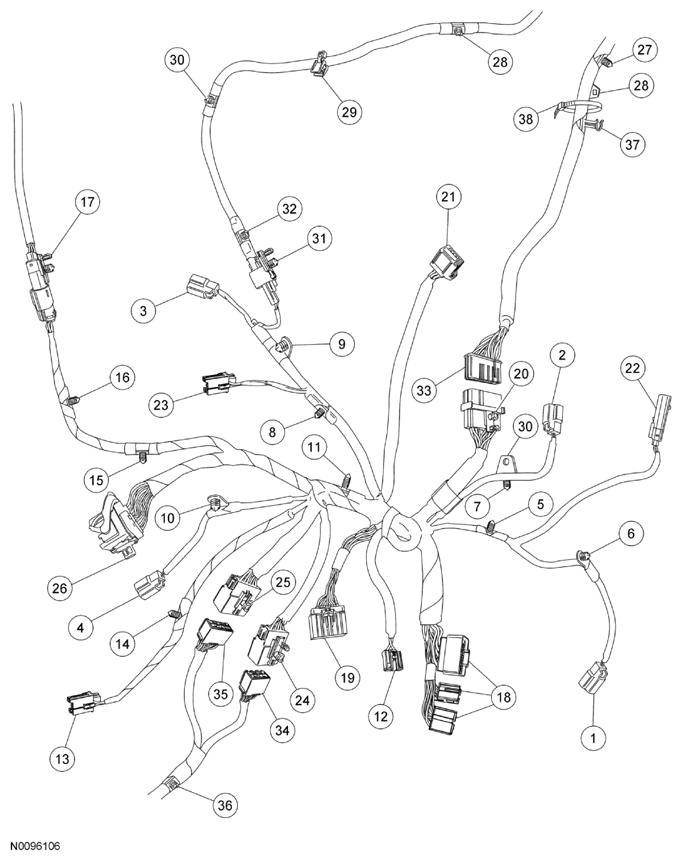

Wire Harness View
ITEM DESCRIPTION
| Item | Description |
|---|---|
| 1 | Occupant Classification System (OCS) weight sensor bolt A electrical connector |
| 2 | OCS weight sensor bolt B electrical connector |
| 3 | OCS weight sensor bolt C electrical connector |
| 4 | OCS weight sensor bolt D electrical connector |
| 5 | OCS weight sensor bolt A wire harness retainer |
| 6 | OCS weight sensor bolt A wire harness retainer |
| 7 | OCS weight sensor bolt B wire harness retainer |
| 8 | OCS weight sensor bolt C wire harness retainer |
| 9 | OCS weight sensor bolt C wire harness retainer |
| 10 | OCS weight sensor bolt D wire harness retainer |
| 11 | Wire harness main retainer |
| 12 | Rear height motor electrical connector |
| 13 | Front height motor electrical connector |
| 14 | Front height motor wire harness retainer |
| 15 | Safety belt buckle and pretensioner wire harness retainer |
| 16 | Safety belt buckle and pretensioner wire harness retainer |
| 17 | Safety belt buckle and pretensioner electrical connector and retainer |
| 18 | Dual Climate Controlled Seat Module (DCSM) electrical connectors |
| 19 | Occupant Classification System Module (OCSM) electrical connector |
| 20 | Seat-to-backrest wire harness electrical connector and retainer |
| 21 | Cushion Thermo-Electric Device (TED) electrical connector |
| 22 | Belt Tension Sensor (BTS) electrical connector and retainer |
| 23 | Horizontal motor electrical connector |
| 24 | Seat control switch electrical connector (small) |
| 25 | Seat control switch electrical connector (large) |
| 26 | Seat-to-body harness electrical connector and retainer |
| 27 | Backrest wire harness retainer |
| 28 | Side air bag wire harness retainer |
| 29 | Side air bag wire harness retainer |
| 30 | Side air bag wire harness retainer |
| 31 | Side air bag electrical connector and retainer |
| 32 | Side air bag wire harness retainer |
| 33 | Backrest wire harness electrical connector |
| 34 | Seat control switch electrical connector (small) |
| 35 | Seat control switch electrical connector (large) |
| 36 | Seat control switch pigtail retainer |
| 37 | Backrest wire harness retainer |
| 38 | Backrest and side air bag wire harness tie strap around suspension wire |
