Instrument Panel Trim Panel and Fasteners

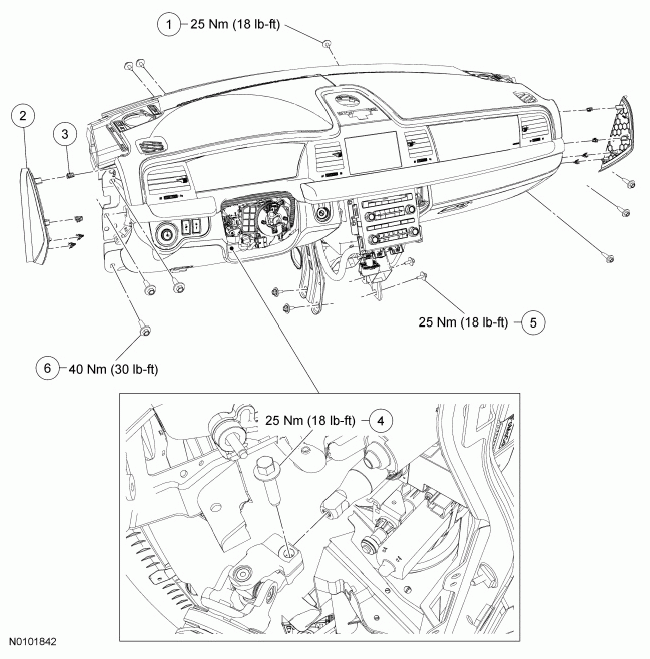

Fig 1: Exploded View Of Instrument Panel Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	W709178	Instrument panel upper cowl bolt (3 required)
2	04480 RH/04481 LH	Instrument panel side trim panel
3	W705289	Instrument panel side finish panel retaining clip (4 required per side)
4	W712961	Steering column shaft-to-steering column bolt
5	W709268	Instrument panel center support bracket bolt (4 required)
6	W710259	Instrument panel side bolt (6 required)
