Pinpoint Test E: The Power Seat Does Not Move Horizontally/Vertically

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. E1 CHECK THE SEAT OPERATION
    WARNING: The restraint system diagnostic tool is for restraint system repair only. Remove from the vehicle prior to road use. Failure to remove could result in personal injury and possible violation of vehicle safety standards. Failure to follow these instructions may result in personal injury.
    NOTE: If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered. Refer to SUPPLEMENTAL RESTRAINT SYSTEM .
    NOTE: The air bag warning lamp illuminates when the restraint control module (RCM) fuse is removed and the key is in the ON position. This is normal operation and does not indicate an SRS fault.
    NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • For vehicles equipped with seat side air bags, carry out the following:
      • Disconnect driver seat side air bag C367. Connect restraint system diagnostic tool 418-133.
    • Disconnect the driver safety belt pretensioner electrical connector at the pretensioner.
    • Key in OFF position.
      • WARNING: Make certain no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in personal injury.
    • Connect the battery. Refer to BATTERY, MOUNTING AND CABLES .
    • Operate the seat control switch in the forward and rearward (horizontal) directions.
    • Does the seat move forward and rearward?

    Yes  : GO to E2.

    No  : GO to  E11.

  2. E2 CHECK THE VERTICAL OPERATION
    • Operate the seat control switch in the front tilt and rear tilt (vertical) directions.
    • Does the seat operate in the front tilt (vertical) direction?

    Yes  : GO to E3.

    No  : GO to  E7.

  3. E3 CHECK THE VOLTAGE TO CIRCUIT 1474 (RD/LG)
    • Disconnect: Seat Motors C353.
    • While operating the seat control switch to the REAR UP position, measure the voltage between seat motor C353-2 circuit 1474 (RD/LG), harness side and ground.

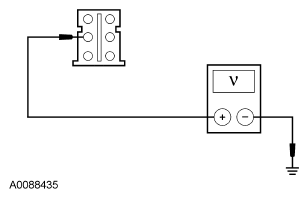

      Fig 1: Checking Voltage To Circuit 1474 (RD/LG)
      G04622263Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Yes  : GO to  E5.

    No  : GO to E4.

  4. E4 CHECK CIRCUIT 1474 (RD/LG) FOR AN OPEN
    • Disconnect: Seat Control Switch C352.
    • Measure the resistance between seat control switch C352-C circuit 1474 (RD/LG), harness side and seat motors C353-2 circuit 1474 (RD/LG), harness side.

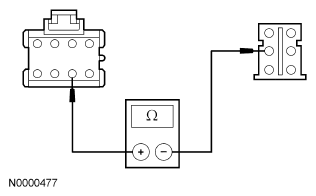

      Fig 2: Checking Circuit 1474 (RD/LG) For Open
      G04622264Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : INSTALL a new seat control switch. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

    No  : REPAIR the circuit. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

  5. E5 CHECK THE VOLTAGE TO CIRCUIT 1473 (YE/LG)
    • While operating the seat to the REAR DOWN position, measure the voltage between seat motors C353-3 circuit 1473 (YE/LG), harness and ground.

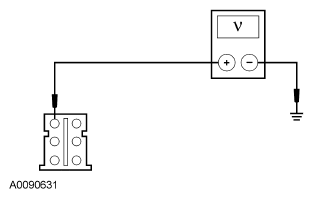

      Fig 3: Checking To Circuit 1473 (YE/LG)
      G04622265Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Yes  : INSTALL a new front seat track. REFER to SEAT TRACK  in this article. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

    No  : GO to E6.

  6. E6 CHECK CIRCUIT 1473 (YE/LG) FOR AN OPEN
    • Disconnect: Seat Control Switch C352.
    • Measure the resistance between seat control switch C352-D circuit 1473 (YE/LG), harness side and seat motor C353-3 circuit 1473 (YE/LG), harness side.

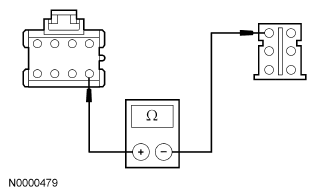

      Fig 4: Checking Circuit 1473 (YE/LG) For Open
      G04622266Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH  in this article. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

    No  : REPAIR the circuit. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

  7. E7 CHECK THE VOLTAGE TO CIRCUIT 1469 (RD/LB)
    • Disconnect: Seat Motor C353.
    • While operating the seat to the FRONT UP position, measure the voltage between seat motor C353-6 circuit 1469 (RD/LB), harness side and ground.

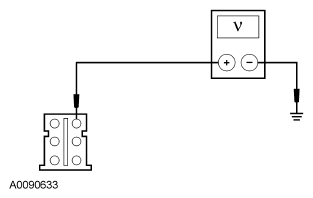

      Fig 5: Checking Voltage To Circuit 1469 (RD/LB)
      G04622267Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Yes  : GO to  E9.

    No  : GO to E8.

  8. E8 CHECK CIRCUIT 1469 (RD/LB) FOR AN OPEN
    • Disconnect: Seat Control Switch C352.
    • Measure the resistance between seat control switch C352-A circuit 1469 (RD/LB), harness side and seat motor C353-6 circuit 1469 (RD/LB), harness side.
      Fig 6: Checking Circuit 1469 (RD/LB) For Open
      G04622268Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : GO to E9.

    No  : REPAIR the circuit. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

  9. E9 CHECK THE VOLTAGE TO CIRCUIT 1470 (YE/LB)
    • While operating the seat control switch to the FRONT DOWN position, measure the voltage between seat control switch C352-B circuit 1470 (YE/LB), harness side and ground.

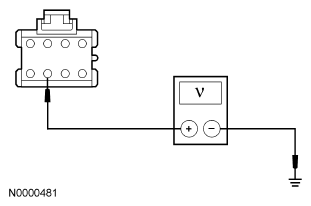

      Fig 7: Checking Voltage To Circuit 1470 (YE/LB)
      G04622269Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Yes  : INSTALL a new front seat track. REFER to SEAT TRACK  in this article. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

    No  : GO to E10.

  10. E10 CHECK CIRCUIT 1470 (YE/LB) FOR AN OPEN
    • Disconnect: Seat Control Switch C352.
    • Measure the resistance between seat control switch C352-B circuit 1470 (YE/LB), harness side and seat motor C353-5 circuit 1470 (YE/LB), harness side.
      Fig 8: Checking Circuit 1470 (YE/LB) For Open
      G04622270Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH  in this article. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

    No  : REPAIR the circuit. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

  11. E11 CHECK THE VOLTAGE TO CIRCUIT 1471 (RD/WH)
    • Disconnect: Seat Motors C353.
    • While operating the seat control switch to the forward position, measure the voltage between seat motors C353-4 circuit 1471 (RD/WH), harness side and ground.

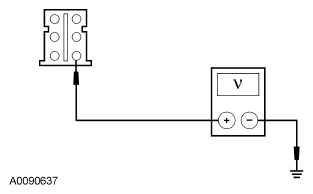

      Fig 9: Checking Voltage To Circuit 1471 (RD/WH)
      G04622271Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Yes  : GO to  E13.

    No  : GO to E12.

  12. E12 CHECK CIRCUIT 1471 (RD/WH) FOR AN OPEN
    • Disconnect: Seat Control Switch C352.
    • Measure the resistance between seat control switch C352-G circuit 1471 (RD/WH), harness side and seat motor C353-4 circuit 1471 (RD/WH), harness side.
      Fig 10: Checking Circuit 1471 (RD/WH) For Open
      G04622272Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH  in this article. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

    No  : REPAIR the circuit. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

  13. E13 CHECK THE VOLTAGE TO CIRCUIT 1472 (YE/WH)
    • While operating the seat to the REARWARD position, measure the voltage between seat motors C353-1 circuit 1472 (YE/WH), harness and ground.

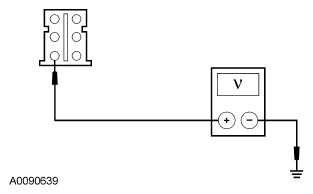

      Fig 11: Checking Voltage To Circuit 1472 (YE/WH)
      G04622273Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?

    Yes  : INSTALL a new front seat track. REFER to SEAT TRACK  in this article. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

    No  : GO to E14.

  14. E14 CHECK CIRCUIT 1472 (YE/WH) FOR AN OPEN
    • Disconnect: Seat Control Switch C352.
    • Measure the resistance between seat control switch C352-F circuit 1472 (YE/WH), harness side and seat motors C353-1 circuit 1472 (YE/WH), harness side.

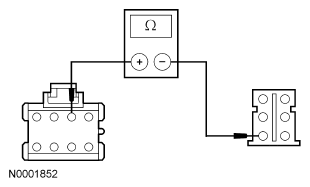

      Fig 12: Checking Circuit 1472 (YE/WH) For Open
      G04622274Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?

    Yes  : INSTALL a new seat control switch. REFER to SEAT CONTROL SWITCH  in this article. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.

    No  : REPAIR the circuit. DISCONNECT the battery. If equipped, REMOVE the restraint system diagnostic tool and CONNECT the driver seat side air bag connector. CONNECT the driver safety belt pretensioner electrical connector. REPOWER the supplemental restraint system (SRS). REFER to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING . TEST the system for normal operation.
