Transaxle Support Insulator - Upper
WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

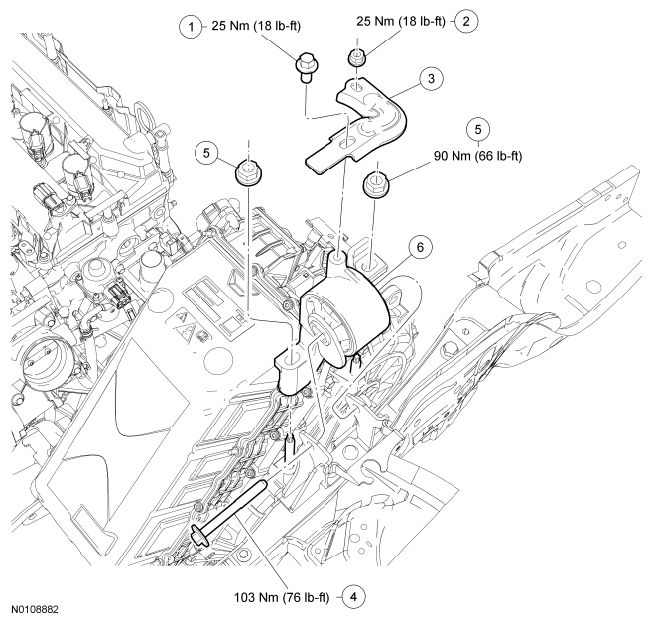

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W710344 | Transaxle support insulator bracket bolt |
| 2 | W520413 | Transaxle support insulator nut |
| 3 | 6B011 | Transaxle support insulator bracket |
| 4 | W710173 | Transaxle support insulator through bolt |
| 5 | W520515 | Transaxle support insulator nuts (2 required) |
| 6 | B3HM000905 | Transaxle support insulator |
