Ignition Lock Cylinder Housing

Ignition Lock Cylinder Housing

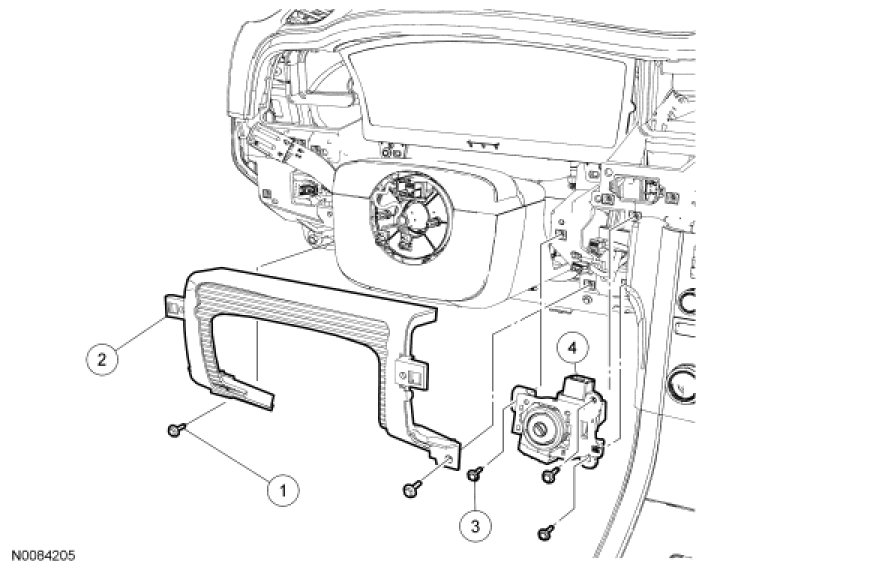

NOTE: Steering wheel shown removed for clarity.











Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

2. Remove the 2 screws and the instrument cluster finish panel extension assembly.

3. Remove the ignition lock cylinder housing.

1. Remove the 3 ignition lock cylinder housing screws.

2. Disconnect the electrical connectors.

4. To install, reverse the removal procedure.
- The new Passive Anti-Theft System (PATS) keys must be programmed. For additional information, refer to Key Programming Using Diagnostic Equipment - Integrated Keyhead Transmitter (IKT) in Antitheft and Alarm Systems. Integrated Keyhead Transmitter (IKT)
