Luggage Compartment Lid Release Switch - Interior

Luggage Compartment Lid Release Switch - Interior









Removal and Installation

1. Remove the RH lower instrument panel finish panel. For additional information, refer to Instrument Panel - Exploded View in Instrument Cluster / Carrier &/or Interior Moulding / Trim.

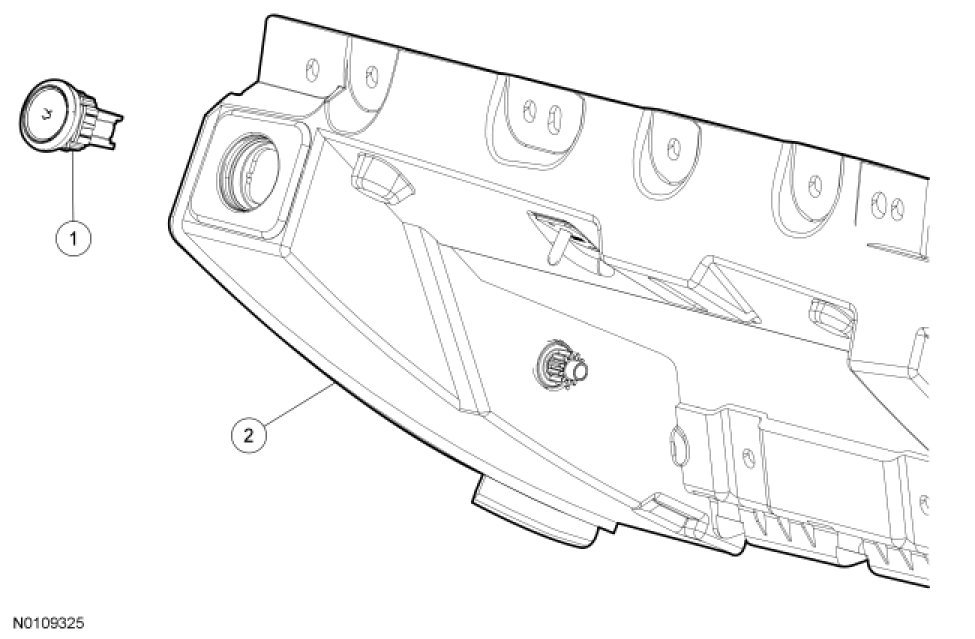

2. Press the tabs and remove the luggage compartment lid release switch.

3. To install, reverse the removal procedure.
