Power Mirror Switch: Service and Repair

Exterior Mirror Control Switch









Removal and Installation

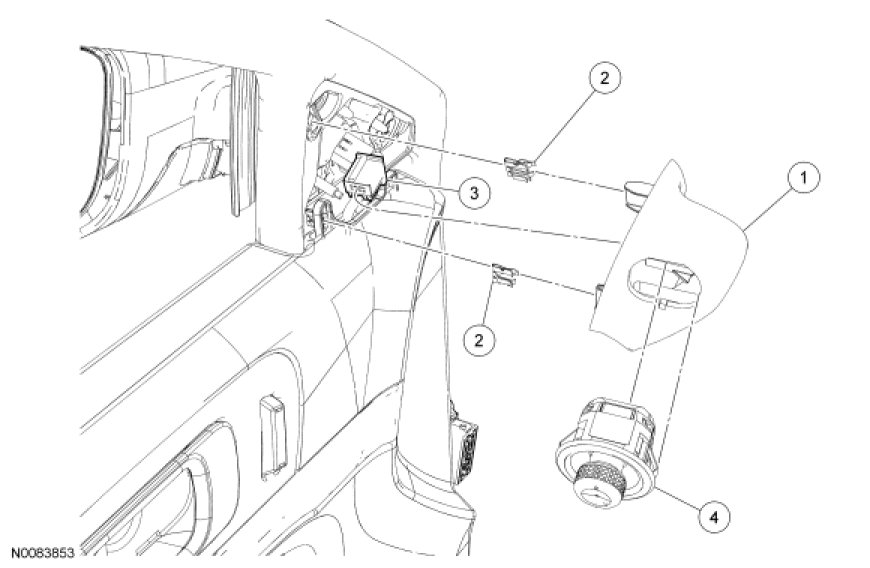

1. Remove the sail panel.
- Pull the sail panel outward to release the retaining clips.

- Disconnect the electrical connector.

2. Depress the 2 locking tabs and remove the exterior mirror switch.

3. To install, reverse the removal procedure.
- To install, make sure to align the sail panel retaining clips to the retaining clip holes in the body.
